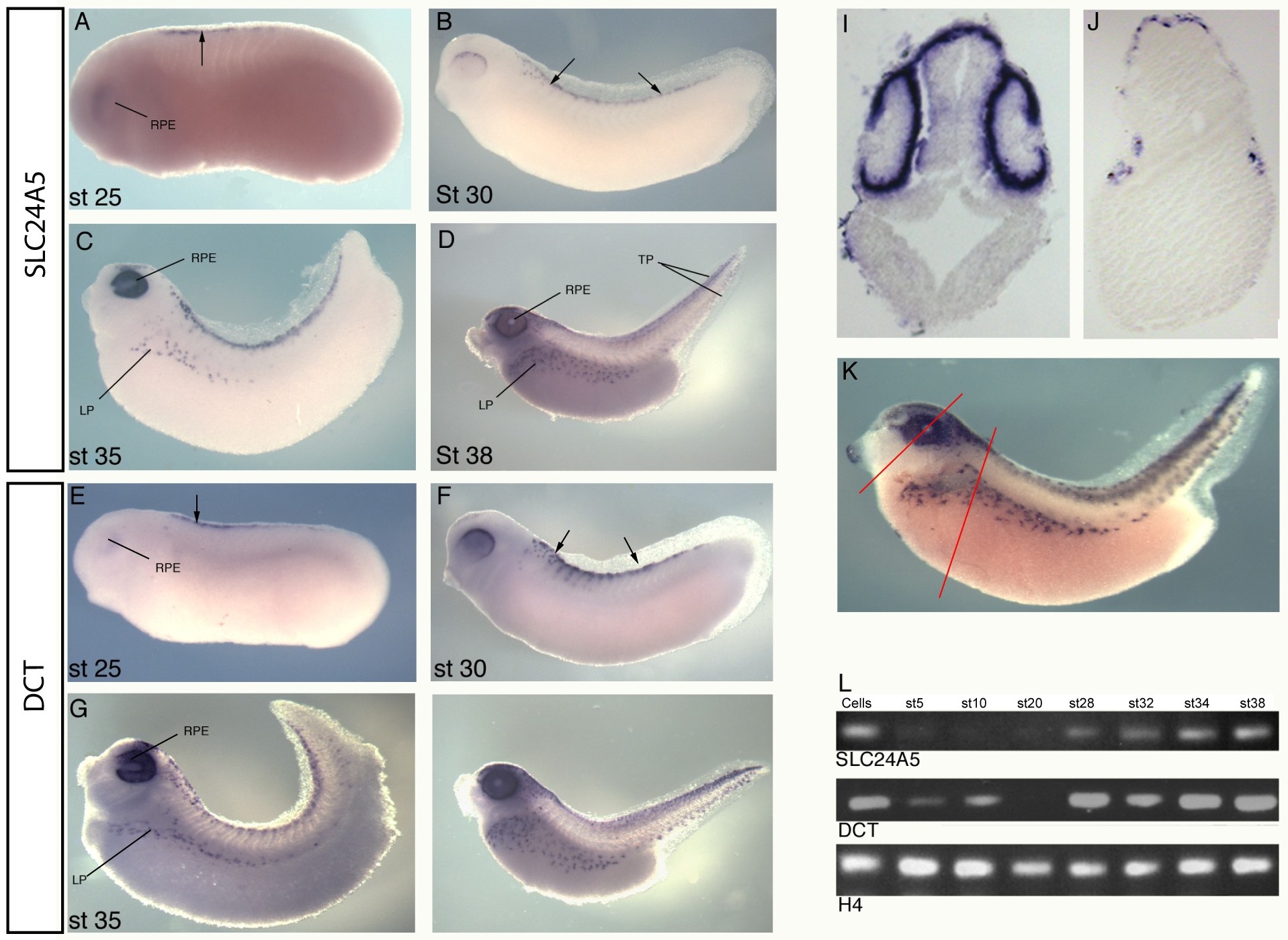

Fig 1. Expression of SLC24A5 in X.laevis.
(A-K) Whole mount in situ hybridisation, (L) RT-PCR. (A-D) Expression of SLC24A5. (A) Expression initiates in the neural crest (arrow) and RPE at stage 25. (B) Expression continues in the melanophores as they mature from the neural crest as indicated by arrows. (C) Expression continues in the melanophores in the lateral pigmentation (LP) and increases in the RPE. (D) By stage 38 strong expression can be seen in melanophores of the lateral pigmentation, tail pigmentation (TP) and RPE. (E-H) Expression of the melanophore marker DCT in X.laevis. (E) Expression in the arising neural crest is indicated by arrow, (F) DCT is expressed in the melanophores as they mature from the neural crest as indicated by arrows. (G) and (H) Expression is maintained as melanophores migrate into lateral and tail pigmentation, expression continues in the RPE of the eye as indicated. (I-K) Histological analysis of SLC24A5 expression. (I) Section through the head reveals restricted expression to the RPE and dorsal head. (J) Section through the trunk shows expression in the flanks of the tadpole trunk and head. (K) whole embryo before sectioning, red line indicate approximate area where above sections were taken. (L) RT PCR analysis of SLC24A5 from various stages of X.laevis development. DCT was used a melanophores marker comparison, H4, loading control. Cells used were X.laevis melanophores (kind gift from Vladimir Gelfand).
