XB-IMG-41581
Xenbase Image ID: 41581
|

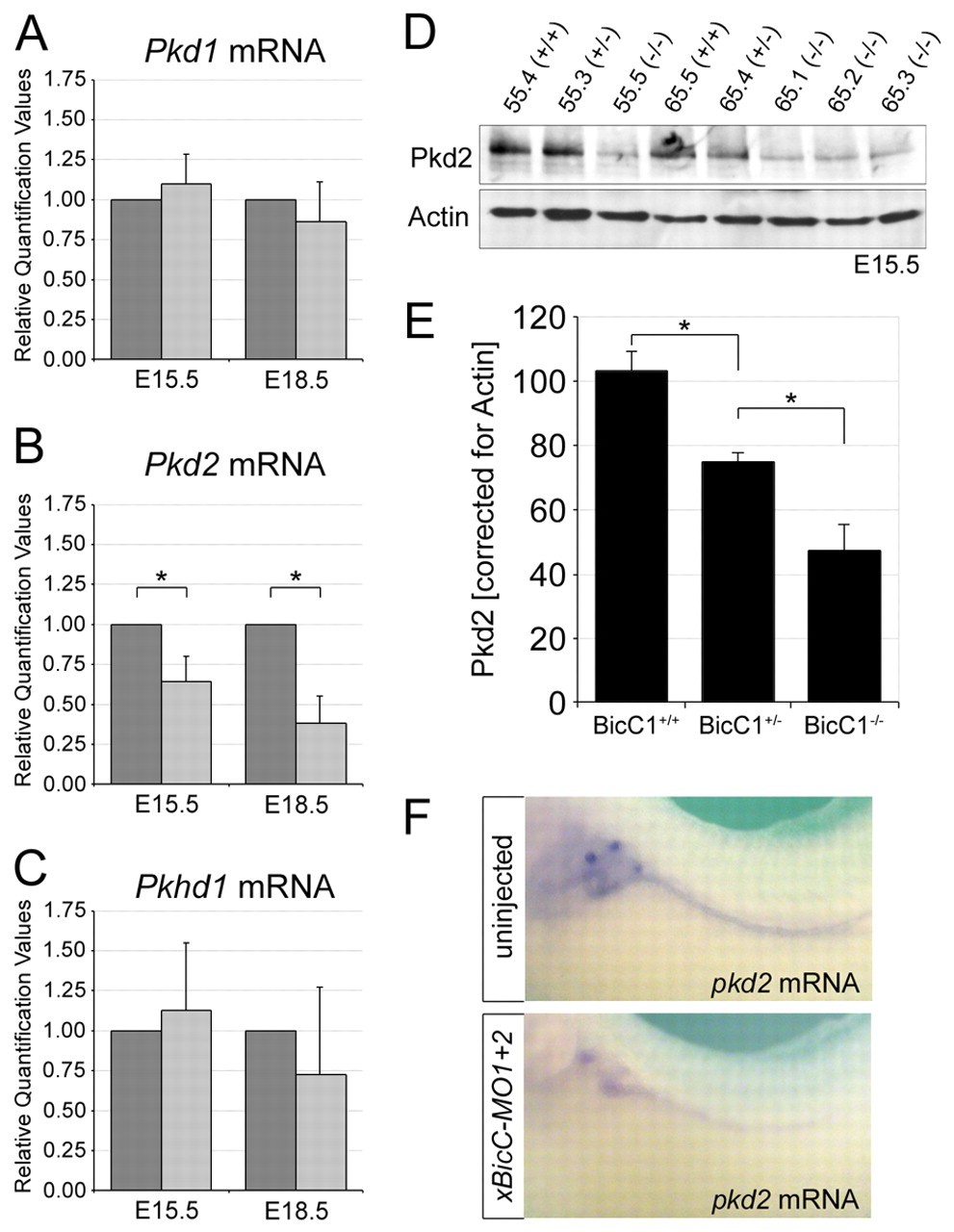

Fig. 3. Bicc1 regulates Pkd2. (A-C) qPCR analysis for mouse Pkd1, Pkd2 and Pkhd1 mRNA levels in Bicc1+/+ (dark gray) and Bicc1â/â (light gray) littermates. The averages and s.d. from six kidney pairs at E15.5 and four pairs at E18.5 are shown (*, P<0.05, Student's t-test). (D) Western blot analysis comparing Pkd2 protein levels in E15.5 kidneys from two Bicc1 mouse litters (#55 and #65) of the indicated genotypes using the Pkd2-specific antibody from Santa Cruz. Actin served as a loading control. (E) Quantification of multiple Pkd2 western blot analyses comparing several mouse litters at E15.5 and normalized to actin. Average values and s.d. are indicated (*, P<0.05, Student's t-test). (F) Whole-mount in situ hybridization for Pkd2 mRNA on uninjected and xBicC-MO1+2-injected Xenopus embryos at stage 39. Image published in: Tran U et al. (2010) Copyright © 2010. Image reproduced with permission of the Publisher and the copyright holder. This is an Open Access article distributed under the terms of the Creative Commons Attribution License.
Image source: Published Larger Image Printer Friendly View |
