Vöcking O et al. (2017), Co-expression of xenopsin and rhabdomeric opsin...

XB-ART-54999

Elife 2017 Sep 06;6. doi: 10.7554/eLife.23435.

Show Gene links Show Anatomy links

Co-expression of xenopsin and rhabdomeric opsin in photoreceptors bearing microvilli and cilia.

Vöcking O , Kourtesis I , Tumu SC , Hausen H .

???displayArticle.abstract???
Ciliary and rhabdomeric opsins are employed by different kinds of photoreceptor cells, such as ciliary vertebrate rods and cones or protostome microvillar eye photoreceptors, that have specialized structures and molecular physiologies. We report unprecedented cellular co-expression of rhabdomeric opsin and a visual pigment of the recently described xenopsins in larval eyes of a mollusk. The photoreceptors bear both microvilli and cilia and express proteins that are orthologous to transporters in microvillar and ciliary opsin trafficking. Highly conserved but distinct gene structures suggest that xenopsins and ciliary opsins are of independent origin, irrespective of their mutually exclusive distribution in animals. Furthermore, we propose that frequent opsin gene loss had a large influence on the evolution, organization and function of brain and eye photoreceptor cells in bilaterian animals. The presence of xenopsin in eyes of even different design might be due to a common origin and initial employment of this protein in a highly plastic photoreceptor cell type of mixed microvillar/ciliary organization.

???displayArticle.pubmedLink??? 28876222
???displayArticle.pmcLink??? PMC5648526
???displayArticle.link??? Elife

Species referenced: Xenopus
Genes referenced: arf4 foxj1.2 levi opn4 pprc1 rpgr

???attribute.lit??? ???displayArticles.show???

	Figure 1. Expression of a new visual pigment (xenopsin) in the L.Â asellus larva.(a) In 7 dpf larvae, the eyespot can clearly be seen in a position posterior to the prototroch (PT). (b) The new L. asellus opsin is expressed in the area of the larval eyes, as well as in cells in the apical area and atÂ the very posterior end of the larva. The opsin+Â cells at the posterior end can only be seen by confocal imaging because of the small cell size. (c) Schematic drawing of the distribution of the cells expressing the new L. asellus opsin in the larva. (d) The xenopsin found in L.Â asellus resembles the well-characterized group of c-opsins in containingÂ the tripeptide NKQ, which is important for opsin and G-protein interaction. In contrast to this, the earlier described Las-r-opsin exhibits an HPK motif, which is specific for the r-opsin group. (Scalebars 100 Âµm in (a) and (b).)Figure 1â€”figure supplement 1. Alignment region showing Lys 296, NPXXY and theÂ tripeptide motif for all opsin sequences included in the study.

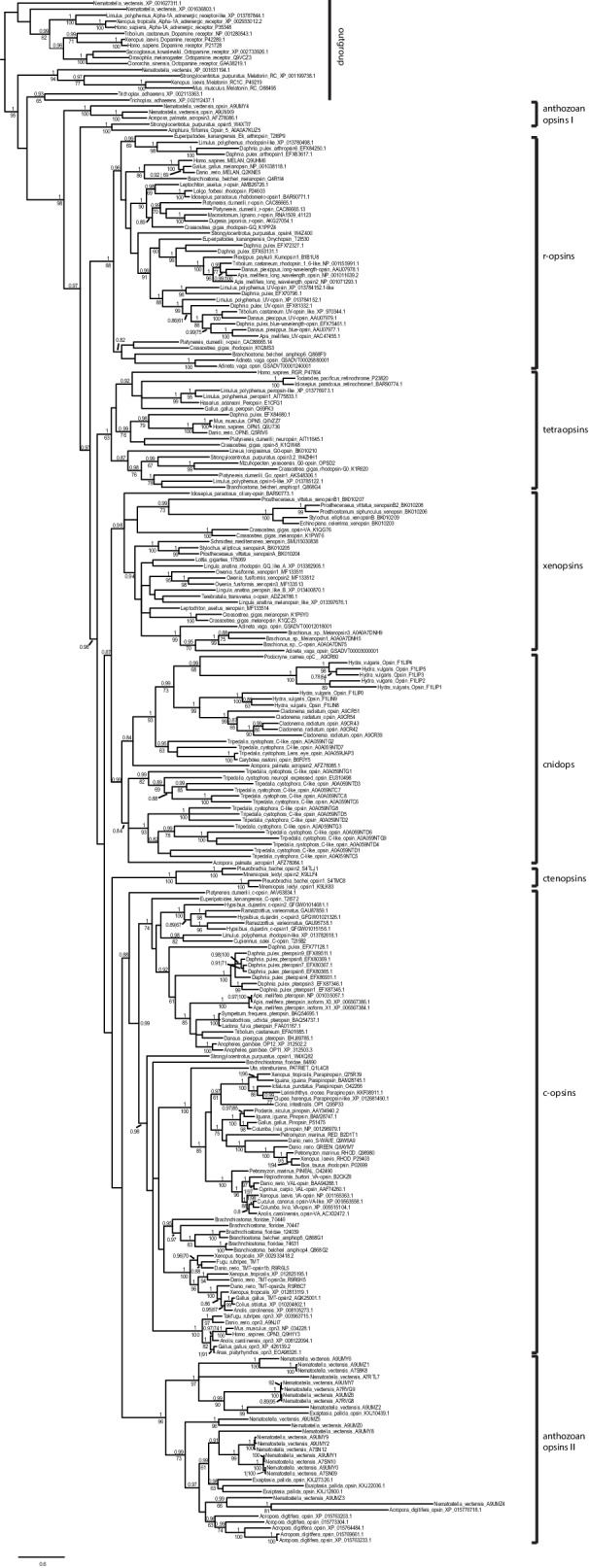

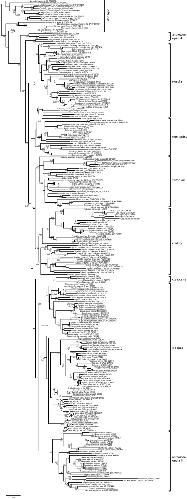

	Figure 2. Opsin phylogeny and gene structure analysis.Majority consensus tree of Bayesian analysis (Phylobayes, DS-GTR + Î“, 60,000 cycles). Bayesian posterior probabilities and bootstrap values from parallel RAxML analysis are shown. See Figure 2â€”figure supplement 1 for uncollapsed tree and Figure 2â€”source data 1 for gene accession numbers. Intron positions (colored bars) are mapped on the uncurated protein sequence alignment and conserved positions are highlighted by bars spanning several sequences. See Figure 2â€”figure supplement 2 for full opsin gene structures and Figure 2â€”figure supplement 3 for intron phases. The new L. asellus opsin falls with high support into the group of xenopsins, which is only distantly related to c-opsins. All major c-opsin subgroups share three conserved intron positions. While cnidops thatÂ form the sister group of xenopsins lack introns, the two intron positions thatÂ areÂ conserved in xenopsins do not overlap with those of c-opsin introns, indicating independent evolutionary origins for xenopsins and c-opsins. The r-opsin sequences included in the gene structure representations areÂ thoseÂ of A: Apis mellifera UV opsin; B: Limulus polyphemus UV-like opsin; C: Crassostrea gigas r-opsin 10013541; andÂ D: Homo sapiens melanopsin.10.7554/eLife.23435.009Figure 2â€”source data 1. Accession numbers of sequences used for opsin tree inference.Figure 2â€”figure supplement 1. Uncollapsed tree of Bayesian phylogenetic opsin analysis (Phylobayes, dataset specific model DS-GTR + Î“, 60,000 cycles).Majority consensus tree of Bayesian analysis, Bayesian posterior probabilities and bootstrap values from parallel RAxML analysis are shown. Tetraopsins and r-opsins were secondarily downsampled to reduce computation time, especially for the cross-validation analysis performed for model evaluation. All major opsin groups are well-supported. Xenopsins show no close relationship to c-opsins, but form the sister group to cnidops.

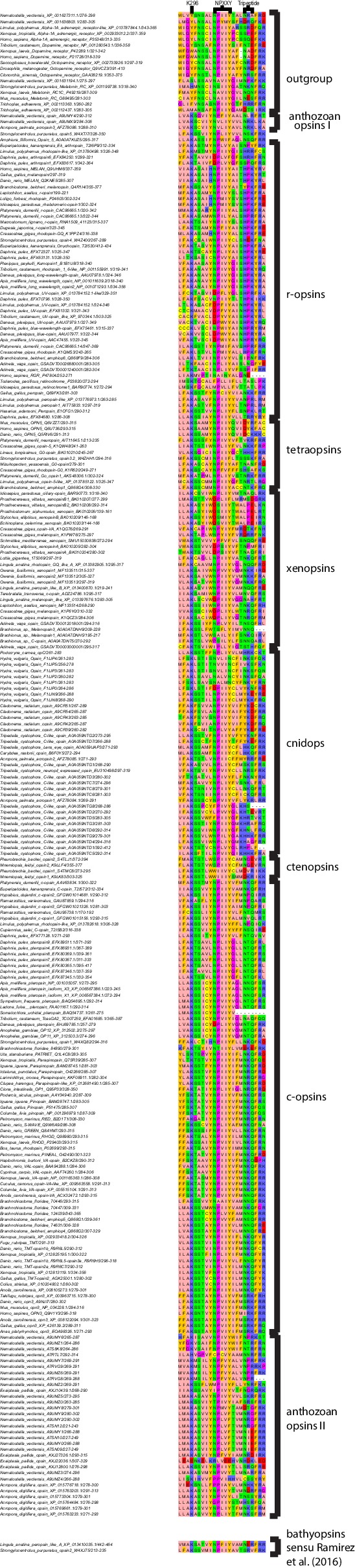

	Figure 2â€”figure supplement 2. Opsin gene structures mapped onto aÂ protein alignment of all opsins included in the phylogenetic analysis, where genomic information was publicly available or generated by this study as for P.Â dumerilii c-opsin and L. asellus xenopsin.Introns are mapped onto the uncurated protein sequence alignment of the phylogenetic analysis. All major c-opsin subgroups share three conserved intron positions. While cnidops lack introns, the two intron positions conserved in xenopsins do not overlap with those of the c-opsin introns. This independent source of information corroborates an independent evolutionary origin of c-opsins and col-opsisn as inferred by the phylogenetic analysis.
	Figure 2âfigure supplement 3. Intron phase analysis of all opsins included into the phylogenetic analysis, where genomic information was publicly available or generated by this study, showing that the type-specific introns in c-opsins and xenopsins are conserved not onlyÂ by position but also byÂ intron phase.
	Figure 3. Fine structure of the eye photoreceptor cell surface and co-expression of Las-xenopsin and Las-ropsin in the eye.(a) Schematic representation of eye structure based on serial section EM data. (bâ€“d) EM micrographs of theÂ apical surfaceÂ ofÂ eye photoreceptor cells (PRCs). (b) Microvillar-like vertical extensions of the eye PRC. (c) Two cilia emerging from eye PRC (inset: cross section of eye PRC ciliary axonem showing 9 Ã— 2Â +Â 2 pattern). (d) Horizontal microvilli (arrows) emerging from eye PRC. (e) Rudimentary cilium of adjacent epidermal cell. (f1-3) Double in-situ hybridization shows that Las-xenopsin and Las-r-opsin are coexpressed in eye PRCs. (Scalebars: 2 Âµm in bâ€“e, 5 Âµm in f). eC, epidermis cell cilium; MV,Â microvilli; N, Nucleus; PC, pigment cell; PG, pigment granules; rC, photoreceptor cell cilium.
	Figure 4. Expression of Las-xenopsin as well as genes involved in ciliary opsin transport and development of cilia.Column 1: single labeling of gene X. Column 2â€“4: double labeling of gene X (cyan) and Las-r-opsin (magenta) in the anterior, posttrochal eye and posterior regions. Las-xenopsin (a1â€“a4), Las-Arf4 (b1â€“b4), Las-rab8 (c1â€“c4), Las-FIP3 (d1-4), Las-RPGR (e1-4), Las-Myosin VIIa (f1-4), Las-foxj1 (g1-4) and Las-RFX (h1-4) are coexpressed with Las-r-opsin in anterior, eye and posterior PRCs. Additionally, Las-rab8 (c1) and Las-FIP3 (d1) show a broader expression in the nervous system of 7 dpf larvae and Las-foxj1 shows expression also in the apical area and prototroch cells of young larvae (Figure 4â€”figure supplement 1). See Figure 4â€”figure supplements 1â€“3 for gene trees of Arf4, FIP and RFX. (Scalebars: 100 Î¼m in column 1; 5 Î¼m in columns 2â€“4).Figure 4â€”figure supplement 1. Las-foxj1 expression in aÂ young larva (48 hpf).Las-foxj1 is expressed in the prototroch cells and the apical organ (Scalebar: 100 Î¼m).
	Figure 4âfigure supplement 2. Alignment of C-termimal ends of the opsins involved in this study.The VxPx motif known to be involved in cargo binding during ciliary opsin trafficking in vertebrate c-opsin is conserved only in tunicate and vertebrate c-opsins, but not in cephalochordate, echinoderm and prostostome c-opsins, xenopsins, cnidops or any other opsin-type.
	Figure 4â€”figure supplement 3. Arf4 evolution.Maximum-likelihood (RAXML, LG + Î“ model, rapid bootstrapping (250 replicates)). See Figure 4â€”figure supplement 3â€”source data 1 for gene accession numbers.10.7554/eLife.23435.017Figure 4â€”figure supplement 3â€”source data 1. Accession numbers of sequences used for Arf4 tree inference.
	Figure 4âfigure supplement 4. FIP evolution.Maximum-likelihood (RAXML, LG + Î model, rapid bootstrapping (250 replicates)). See Figure 4âfigure supplement 4âsource data 1 for gene accession numbers.10.7554/eLife.23435.018Figure 4âfigure supplement 4âsource data 1. Accession numbers of sequences used for FIP tree inference.
	Figure 4âfigure supplement 5. RFX evolution.Maximum-likelihood (RAXML, JTT + ÎÂ +Â F model, rapid bootstrapping (250 replicates)). See Figure 4âfigure supplement 5âsource data 1 for gene accession numbers.10.7554/eLife.23435.019Figure 4âfigure supplement 5âsource data 1. Accession numbers of sequences used for RFX tree inference.
	Figure 5. Scenarios for eye PRC evolution.C-opsin, xenopsin and r-opsin are present in the bilaterian ancestor.Â ScenarioÂ A. In the bilaterian ancestor,Â c-opsin is employed by ciliary unpigmented brain PRCs not serving directional vision. Initially the only eye PRCs are of the r-opsin+Â microvillar PRC type. In protostomes, c-opsin+Â PRCs stayed in the brain and do not form part of the eye retina layer in recent arthropods and annelids, but became integrated into the eye retina of vertebrates. They were reduced in mollusks and brachiopods coincident with gene loss of c-opsin. One option preventing theÂ assumptionÂ of multiple co-option of xenopsin by eye PRCs or emergence of completely new PRCs or eyes is that xenopsin was recruited once by r-opsin+Â eye PRCs in the stem lineage of lophotrochozoans and entered sensory cilia. Such cells are still present in basal mollusks. In annelids except the basally branching Oweniidae (labelled with asterisk),Â xenopsin is lost and the eye PRCs areÂ turned into purely microvillar cells. In brachiopod larvae, xenopsin is maintained and present in the purely ciliary eye PRCs. ScenarioÂ B.Â TheÂ evolution of ciliary c-opsin+PRCs is the same as in Scenario A.However, already the eyes of the bilaterian ancestor employed a very plastic mixed r-opsin+Â and xenopsin+Â rhabdomeric/ciliary PRC type. Distribution of PRC types and eye PRC organization in Bilateria is largely the result of lineage-specific loss of either xenopsin or c-opsin. Loss of xenopsin in vertebrates, arthropods and most annelids led to microvillar r-opsin+Â PRCs. Though still present in the genome, r-opsin became downregulated in eye PRCs of brachiopods. Schemes are partly based on drawings and images from Rhode (1992) and Passamaneck et al. (2011).

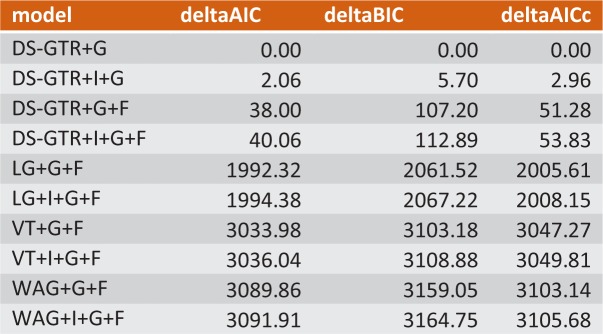

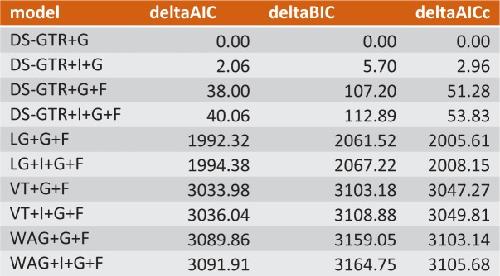

	Figure 6. Ten-fold cross-validation (Phylobayes) to find best possible model for Bayesian opsin tree inference.Only some of theÂ data are shown. Combinations based on the dataÂ set specific substitution matrix (DS-GTR) are superior to all software implemented options. DS-GTR CAT and GTR CAT are the best non-parametric variants and DS-GTR ÎÂ is the best parametric variant. See Figure 6âfigure supplement 1 for model test for maximum-likelihood analysis and Figure 6âsource data 1 for theÂ whole dataÂ set.10.7554/eLife.23435.023Figure 6âsource data 1. Full results of ten-fold cross-validation (Phylobayes) to find best possible model for Bayesian opsin tree inference.Figure 6-figure supplement 1. Model test (Prottest) to find theÂ best possible model for maximum-likelihood analysis.Only psomeÂ of theÂ data are shown. DS-GTR+Î based on a data-set-specific substitution matrix is the best fitting model according to Akaike information, Bayesian information and Decision theory criteria. See Figure 6âfigure supplementâsource data 1 for theÂ whole dataÂ set.10.7554/eLife.23435.024Figure 6âfigure supplementâsource data 1. Full results of Prottest analysis to find the best possible model for maximum-likelihood analysis.
