Xiu X et al. (2009), Nicotine binding to brain receptors requires a ...

XB-ART-39704

Nature 2009 Mar 26;4587237:534-7. doi: 10.1038/nature07768.

Show Gene links Show Anatomy links

Nicotine binding to brain receptors requires a strong cation-pi interaction.

Xiu X , Puskar NL , Shanata JA , Lester HA , Dougherty DA .

???displayArticle.abstract???
Nicotine addiction begins with high-affinity binding of nicotine to acetylcholine (ACh) receptors in the brain. The end result is over 4,000,000 smoking-related deaths annually worldwide and the largest source of preventable mortality in developed countries. Stress reduction, pleasure, improved cognition and other central nervous system effects are strongly associated with smoking. However, if nicotine activated ACh receptors found in muscle as potently as it does brain ACh receptors, smoking would cause intolerable and perhaps fatal muscle contractions. Despite extensive pharmacological, functional and structural studies of ACh receptors, the basis for the differential action of nicotine on brain compared with muscle ACh receptors has not been determined. Here we show that at the alpha4beta2 brain receptors thought to underlie nicotine addiction, the high affinity for nicotine is the result of a strong cation-pi interaction to a specific aromatic amino acid of the receptor, TrpB. In contrast, the low affinity for nicotine at the muscle-type ACh receptor is largely due to the fact that this key interaction is absent, even though the immediate binding site residues, including the key amino acid TrpB, are identical in the brain and muscle receptors. At the same time a hydrogen bond from nicotine to the backbone carbonyl of TrpB is enhanced in the neuronal receptor relative to the muscle type. A point mutation near TrpB that differentiates alpha4beta2 and muscle-type receptors seems to influence the shape of the binding site, allowing nicotine to interact more strongly with TrpB in the neuronal receptor. ACh receptors are established therapeutic targets for Alzheimer's disease, schizophrenia, Parkinson's disease, smoking cessation, pain, attention-deficit hyperactivity disorder, epilepsy, autism and depression. Along with solving a chemical mystery in nicotine addiction, our results provide guidance for efforts to develop drugs that target specific types of nicotinic receptors.

???displayArticle.pubmedLink??? 19252481
???displayArticle.pmcLink??? PMC2755585
???displayArticle.link??? Nature
???displayArticle.grants??? [+]

Species referenced: Xenopus laevis
Genes referenced: cntn1

???attribute.lit??? ???displayArticles.show???

References [+] :

Beene, Cation-pi interactions in ligand recognition by serotonergic (5-HT3A) and nicotinic acetylcholine receptors: the anomalous binding properties of nicotine. 2002, Pubmed, Xenbase

Beene, Cation-pi interactions in ligand recognition by serotonergic (5-HT3A) and nicotinic acetylcholine receptors: the anomalous binding properties of nicotine. 2002, Pubmed , Xenbase
Brejc, Crystal structure of an ACh-binding protein reveals the ligand-binding domain of nicotinic receptors. 2001, Pubmed
Cashin, Using physical chemistry to differentiate nicotinic from cholinergic agonists at the nicotinic acetylcholine receptor. 2005, Pubmed , Xenbase
Celie, Nicotine and carbamylcholine binding to nicotinic acetylcholine receptors as studied in AChBP crystal structures. 2004, Pubmed
Coe, Varenicline: an alpha4beta2 nicotinic receptor partial agonist for smoking cessation. 2005, Pubmed , Xenbase
Corringer, Nicotinic receptors at the amino acid level. 2000, Pubmed
Deechongkit, Context-dependent contributions of backbone hydrogen bonding to beta-sheet folding energetics. 2004, Pubmed
Dougherty, Physical organic chemistry on the brain. 2008, Pubmed
Dougherty, Cys-loop neuroreceptors: structure to the rescue? 2008, Pubmed
England, Backbone mutations in transmembrane domains of a ligand-gated ion channel: implications for the mechanism of gating. 1999, Pubmed , Xenbase
Filatov, The role of conserved leucines in the M2 domain of the acetylcholine receptor in channel gating. 1995, Pubmed , Xenbase
Fonck, Novel seizure phenotype and sleep disruptions in knock-in mice with hypersensitive alpha 4* nicotinic receptors. 2005, Pubmed , Xenbase
Gotti, Brain nicotinic acetylcholine receptors: native subtypes and their relevance. 2006, Pubmed
Grutter, An H-bond between two residues from different loops of the acetylcholine binding site contributes to the activation mechanism of nicotinic receptors. 2003, Pubmed
Hansen, Structures of Aplysia AChBP complexes with nicotinic agonists and antagonists reveal distinctive binding interfaces and conformations. 2005, Pubmed
Kearney, Dose-response relations for unnatural amino acids at the agonist binding site of the nicotinic acetylcholine receptor: tests with novel side chains and with several agonists. 1996, Pubmed , Xenbase
Koh, An experimental approach to evaluating the role of backbone interactions in proteins using unnatural amino acid mutagenesis. 1997, Pubmed
Kuryatov, Nicotine acts as a pharmacological chaperone to up-regulate human alpha4beta2 acetylcholine receptors. 2005, Pubmed
Labarca, Channel gating governed symmetrically by conserved leucine residues in the M2 domain of nicotinic receptors. 1995, Pubmed , Xenbase
Mansvelder, Synaptic mechanisms underlie nicotine-induced excitability of brain reward areas. 2002, Pubmed
McManus, Sampling, log binning, fitting, and plotting durations of open and shut intervals from single channels and the effects of noise. 1987, Pubmed
Moroni, alpha4beta2 nicotinic receptors with high and low acetylcholine sensitivity: pharmacology, stoichiometry, and sensitivity to long-term exposure to nicotine. 2006, Pubmed , Xenbase
Nashmi, Chronic nicotine cell specifically upregulates functional alpha 4* nicotinic receptors: basis for both tolerance in midbrain and enhanced long-term potentiation in perforant path. 2007, Pubmed
Nelson, Alternate stoichiometries of alpha4beta2 nicotinic acetylcholine receptors. 2003, Pubmed , Xenbase
Nowak, In vivo incorporation of unnatural amino acids into ion channels in Xenopus oocyte expression system. 1998, Pubmed , Xenbase
Romanelli, Central nicotinic receptors: structure, function, ligands, and therapeutic potential. 2007, Pubmed
Sine, Mutation of the acetylcholine receptor alpha subunit causes a slow-channel myasthenic syndrome by enhancing agonist binding affinity. 1995, Pubmed
Sixma, Acetylcholine binding protein (AChBP): a secreted glial protein that provides a high-resolution model for the extracellular domain of pentameric ligand-gated ion channels. 2003, Pubmed
Talley, Spectroscopic analysis of benzylidene anabaseine complexes with acetylcholine binding proteins as models for ligand-nicotinic receptor interactions. 2006, Pubmed
Tapper, Nicotine activation of alpha4* receptors: sufficient for reward, tolerance, and sensitization. 2004, Pubmed
Zhong, From ab initio quantum mechanics to molecular neurobiology: a cation-pi binding site in the nicotinic receptor. 1998, Pubmed

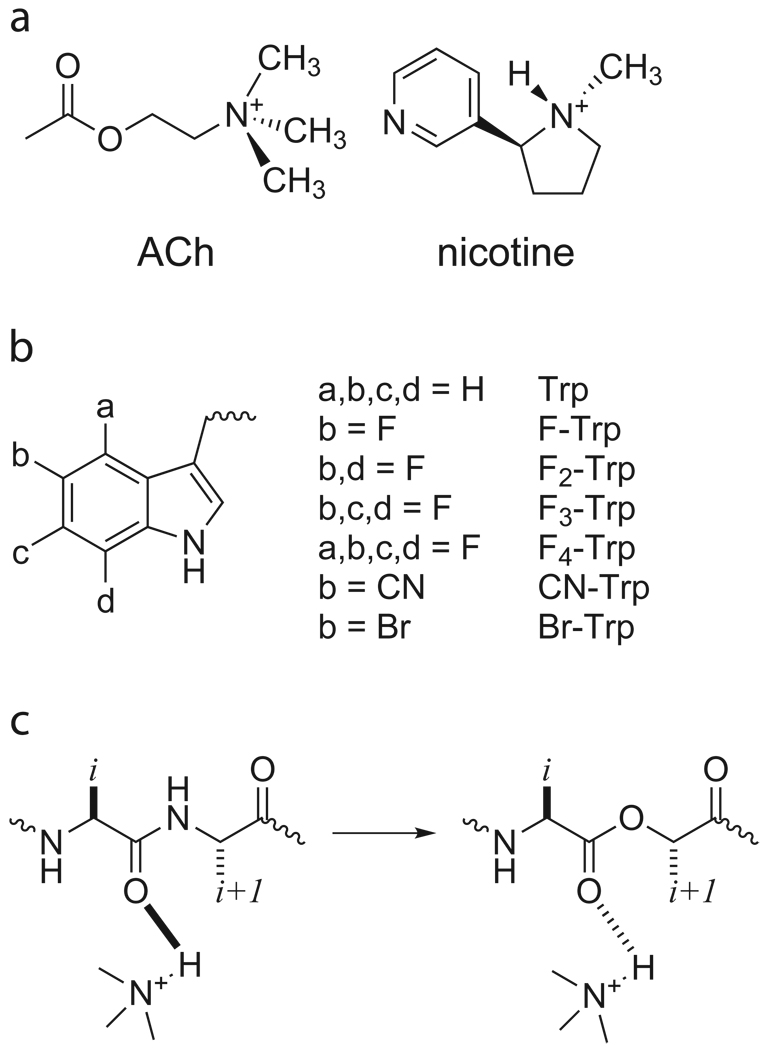

	Figure 2. Agonists and unnatural amino acids considered here. a. Structures of ACh and nicotine. b. Unnatural amino acids considered here. If not indicated, an a, b, c, or d group is H. c. The backbone ester strategy for modulating a hydrogen bond.

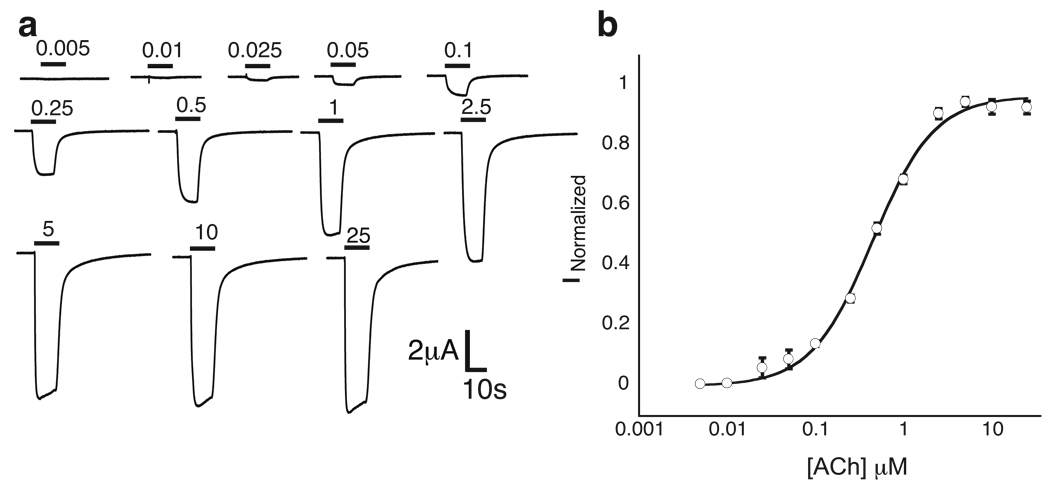

	Figure 3. Nonsense suppression in the Î±4Î²2 receptor. Shown is a wild type recovery experiment, in which Trp is incorporated at the TrpB position. a. Representative traces of voltage-clamp currents. Bars represent application of ACh at concentrations noted. b. Fit of data in A to the Hill equation.

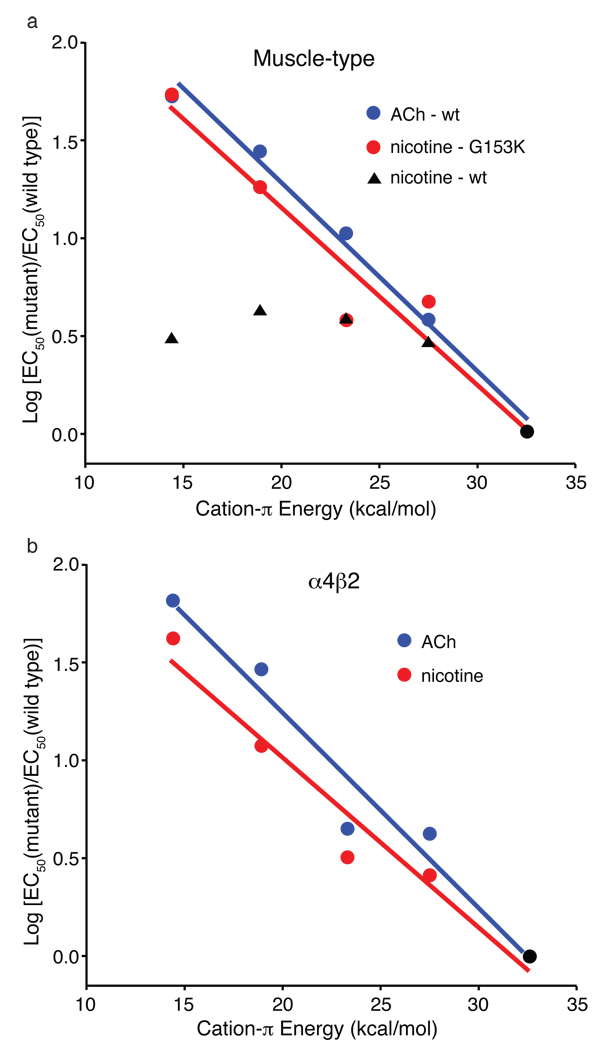

	Figure 4. Fluorination plots. Note that in both plots, all data sets share the point at x = 32.6 kcal/mol (cation-Ï energy for Trp); y = 0 (black circle). Moving to the left then corresponds to monofluoro-, difluoro-, trifluoro- and tetrafluoro-TrpB. Cation-Ï binding energies (x-axes) are from 9. a. Muscle-type receptor. The designation âwt" indicates G at position 153. b. Î±4Î²2 receptor.

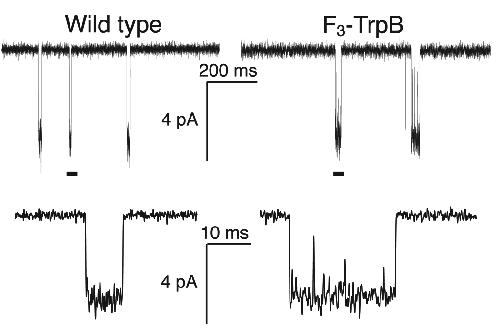

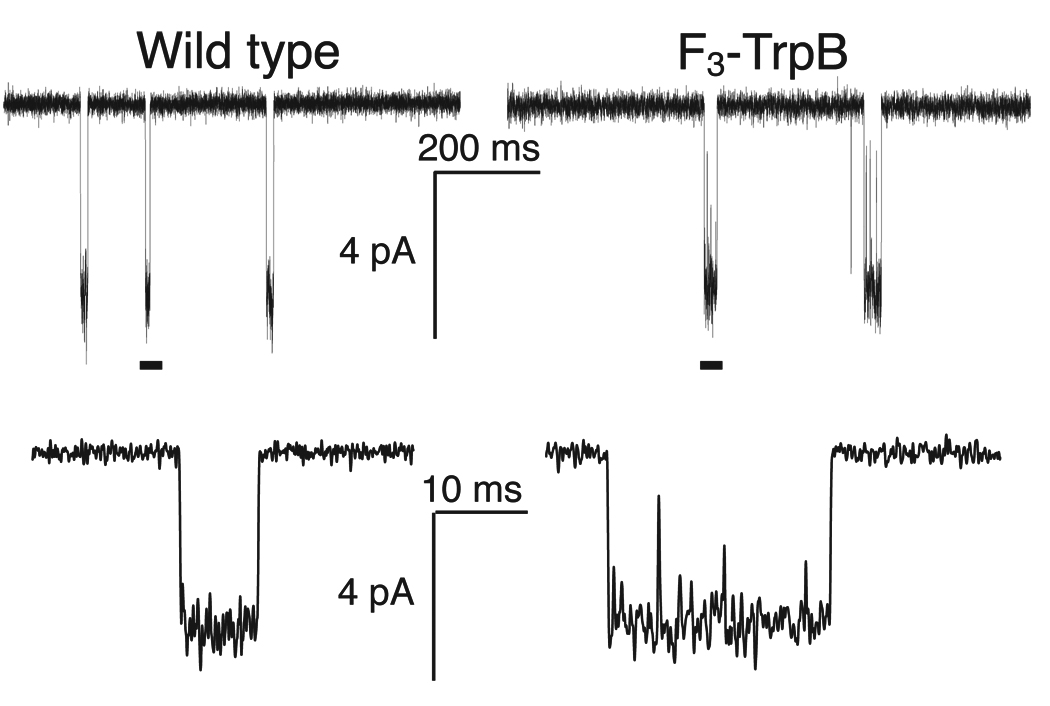

	Figure 5. Single-channel recordings from wild type Î±4Î²2 (conventional expression) and the F3-Trp mutant (nonsense suppression) at site B, with nicotine applied at EC50 values (0.080 and 1.2 ÂµM, respectively). Lower traces are expansions of the regions marked by a bar in the upper trace. Records were obtained in the cell-attached configuration with a pipette potential of +100 mV and are shown at 2 kHz bandwidth. Channel openings are shown as downward deflections.
