Mongeon R , Walogorsky M , Urban J , Mandel G , Ono F , Brehm P .

NS-18205 NINDS NIH HHS , Howard Hughes Medical Institute , R01 NS018205 NINDS NIH HHS , R37 NS018205 NINDS NIH HHS

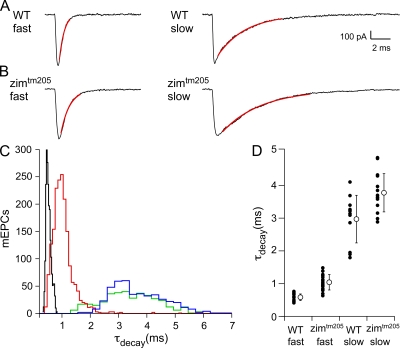

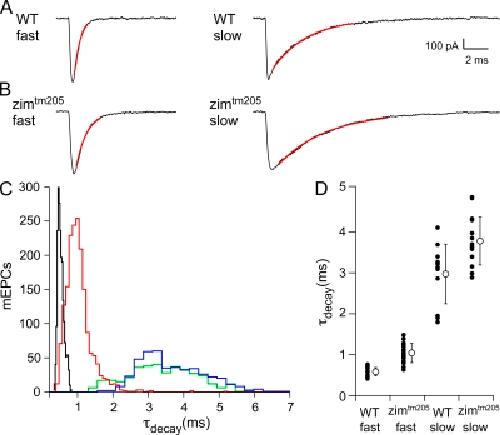

	Figure 1. Comparison of decay time constants (τdecay) of spontaneous synaptic currents (mEPCs) between wild-type and acetylcholinesterase-null (zimtm205) 72–82-hpf larval zebrafish. (A) Sample mEPCs from wild-type fast (left) and wild-type slow (right) skeletal muscle. The 10–90% decay phase is fit to a single-exponential function (red) to obtain τdecay. (B) Sample mEPCs from zimtm205 fast (left) and zimtm205 slow (right) skeletal muscle, each fit in the same manner as those in A. (C) The frequency histogram of τdecay values for individual mEPCs from wild-type fast muscle (black; n = 14 recordings), zimtm205 fast muscle (red; n = 28 recordings), wild-type slow muscle (green; n = 15 recordings), and zimtm205 slow muscle (blue; n = 15 recordings). (D) The mean τdecay values for each recording (filled circles) along with the overall mean ± SD (open circle) are shown for each condition.

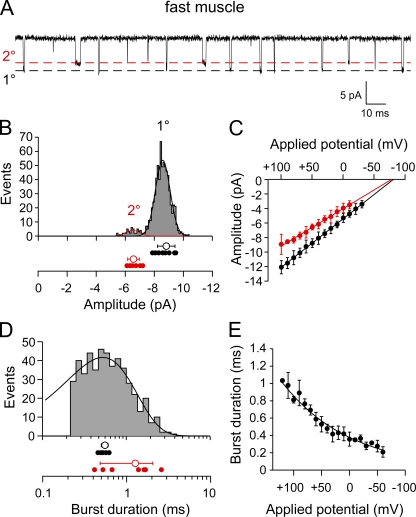

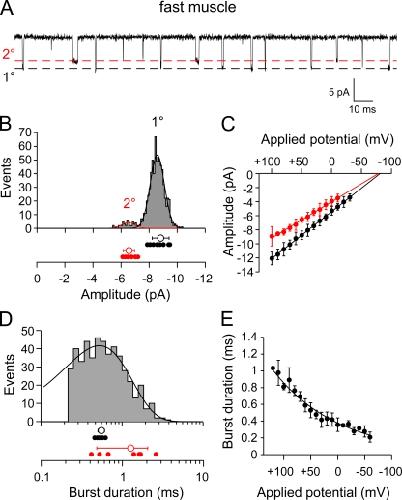

	Figure 2. Single-channel ACh-activated currents from fast skeletal muscle of 72-hpf larval zebrafish. (A) A sample ∼0.25-s trace showing two amplitude classes of ACh-activated channels (300 nM) recorded from a cell-attached patch at +30 mV applied potential. The open channel levels for the primary (1°) and secondary (2°) amplitude classes are indicated by the dashed lines. (B) The amplitude frequency histogram for openings recorded from a single patch at +50 mV applied potential. The mean value for each recording (filled symbols) is shown below the sample histogram for both the 1° and 2° classes, along with overall mean values ± SD (open circles). (C) The current–voltage relations for the 1° (black) and 2° (red) single-channel amplitude classes. Each symbol represents the mean amplitude ± SD values of all patches (n = 12) for each applied potential. (D) A burst-duration frequency histogram for the 1° amplitude class from a single recording fit with an exponential function. The mean burst-duration values for each recording of the 1° class (black filled symbols) and 2° class (red filled symbols) are shown along with the overall mean ± SD (open circles) below the histogram. (E) The relationship between applied potential and mean burst duration of the 1° amplitude class is exponential and corresponds to an e-fold change per 122 mV. Each symbol represents the mean ± SD (n = 8 recordings).

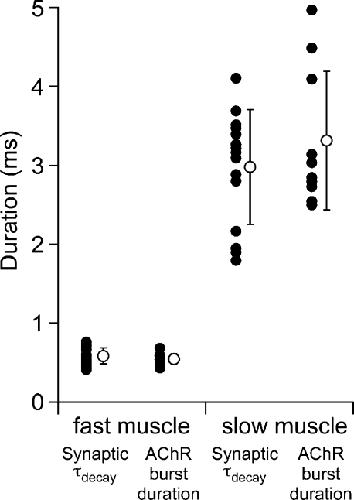

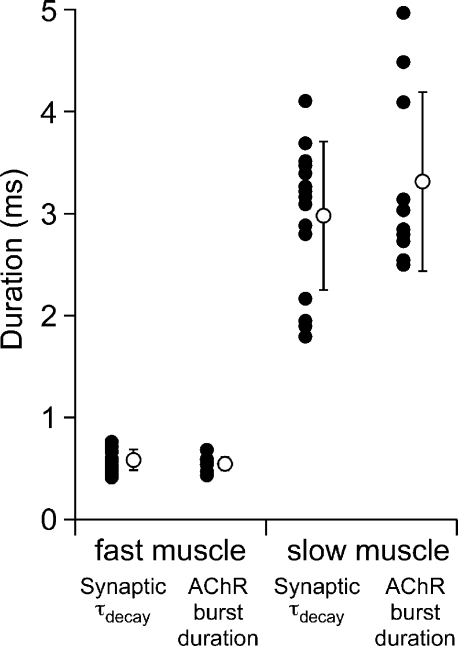

	Figure 3. Comparison of single-channel mean burst duration and τdecay of synaptic current for fast and slow muscle recordings. The mean values for individual recordings are indicated by filled symbols, and the overall mean ± SD is indicated as the open symbol for each condition.

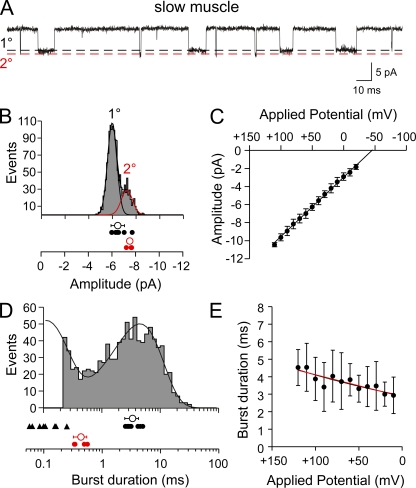

	Figure 4. Single-channel ACh-activated currents from slow skeletal muscle of 72-hpf larval zebrafish. (A) A sample ∼0.25-s trace showing two amplitude classes of ACh-activated channels (300 nM) recorded from a cell-attached patch at +50 mV applied potential. The open channel levels for the primary (1°) and secondary (2°) amplitude classes are indicated by the dashed lines. (B) The amplitude frequency histogram for a single recording with two amplitude classes (1° and 2°) at +50 mV applied potential. The mean values for each class are indicated for individual recordings (filled symbols) along the overall mean ± SD (open symbols) below the histogram. (C) The current–voltage relations for the pooled 1° openings. Each symbol represents the mean amplitude ± SD values of all patches (n = 8) for each applied potential. (D) A burst-duration frequency histogram from a single recording fit to the sum of two exponential functions. Only the 1° amplitude class was included in the distribution. The mean values for the brief (filled triangles) and long (filled circles) mean burst duration for the 1° class are indicated along with the overall mean ± SD (open symbols). The 2° class was fit separately to a single exponential (not depicted), and the individual mean values for burst duration for each recording (red filled circles) are indicated along with the overall mean ± SD (red open symbol). (E) The relationship between applied potential and mean burst duration is shown for all 1° class openings fit with linear (black) and exponential (red) curves. Each symbol represents the mean ± SD (n = 10 recordings).

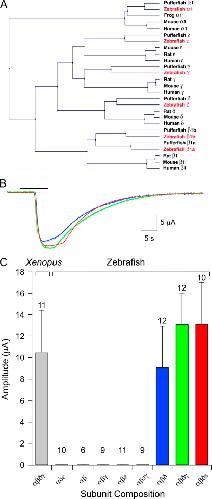

	Figure 5. Zebrafish AChR subunit identification and functional expression in Xenopus oocytes. (A) A phylogenetic tree of AChR subunit genes constructed by the UPGMA method. Subunit sequences of human (Homo sapiens), mouse (Mus musculus), rat (Rattus norvegicus), puffer fish (Takifugu rubripes), and frog (Xenopus tropicalis) are included. Zebrafish genes are highlighted in red. (B) Two microelectrode recordings of membrane currents elicited by 30 µM ACh (bar) at a −80 mV holding potential. Shown are responses from oocytes expressing αβδε (red trace), αβδγ (green trace), or αβδ (blue trace) RNA. (C) The mean ± SD macroscopic current amplitude associated with the RNA subunit combinations is indicated. Xenopus αβδγ RNA is shown for comparison, and the number of oocytes tested is indicated for each RNA combination tested. The three combinations that yielded currents suitable for single-channel recordings are indicated by colored bars.

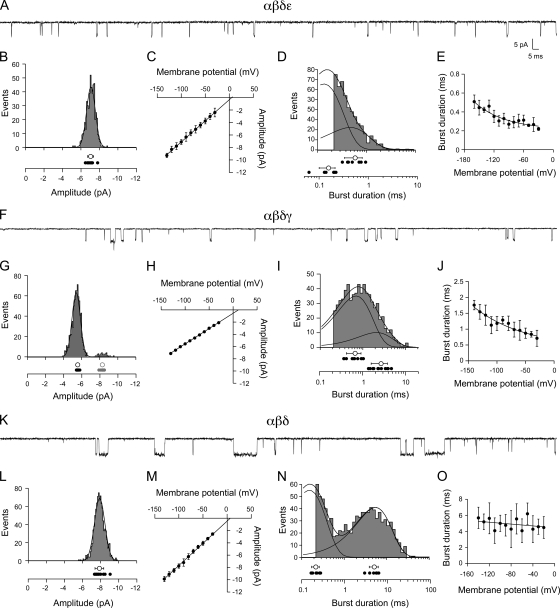

	Figure 6. Functional properties of ACh-activated single-channel currents from Xenopus oocytes expressing αβδε (A–E), αβδγ (F–J), and αβδ (K–O) subunit RNA. (A) Sample recording from a patch expressing αβδε at −100 mV. (B) A representative amplitude histogram for one recording, with individual mean values for all recordings (filled circles; n = 12) shown below along with the overall mean ± SD (open circle) at −100 mV. (C) The cumulative current–voltage relations for eight recordings. (D) A representative burst-duration histogram fit by the sum of two exponentials. The time constants for each exponential are indicated for each recording (filled circles; n = 7) along with the overall mean ± SD for all recordings (open circles) at −100 mV. (E) The relationship between burst duration and membrane potential for seven recordings fit to an exponential function. The voltage dependence corresponds to e-fold change per 156 mV over this range. (F) Sample recording from a patch expressing αβδγ at −100 mV. (G) A representative amplitude histogram from one recording showing a 1° (black) and 2° (red) amplitude class of openings. The individual mean values for 10 recordings (filled circles) are shown along with the overall mean ± SD (open circles) for each class at −100 mV. (H) The cumulative current–voltage relations for the primary class for eight recordings. (I) A representative burst-duration histogram fit by the sum of two exponentials. The time constants for each exponential are indicated for each recording (filled circles; n = 9) as well as the overall mean ± SD (open circles) at −100 mV. (J) The relationship between burst duration and membrane potential for four recordings fit to an exponential function. The voltage dependence corresponds to e-fold change per 141 mV over this range. (K) Sample recording from a patch expressing αβδ at −100 mV. (L) A representative amplitude frequency histogram from a single recording with the individual mean values for all recordings (filled circles; n = 13) along with the overall mean ± SD (open circle) at −100 mV. (M) The cumulative current–voltage relations for 11 recordings. (N) A representative burst-duration histogram fit by the sum of two exponentials. The individual time constants for each exponential are indicated for each recording (filled circles; n = 6) as well as the overall mean ± SD for all recordings (open circles) at −100 mV. (O) The relationship between burst duration and membrane potential for six recordings fit to an exponential function over the range of values shown yielding an e-fold change in burst duration per 769 mV.

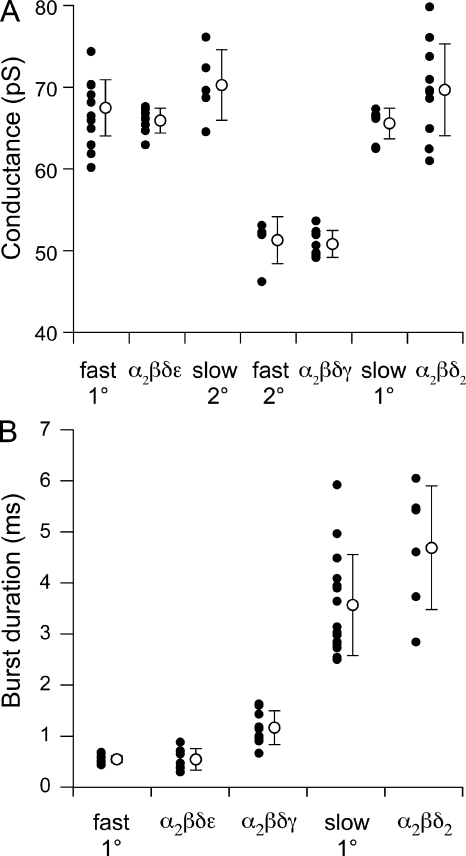

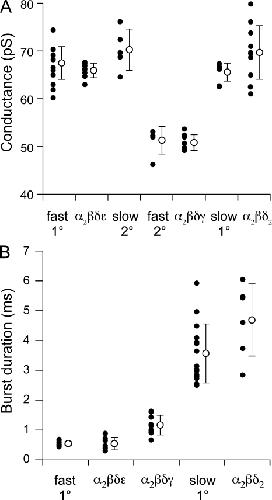

	Figure 7. Comparisons between fast and slow muscle ACh-activated channels and individually identified receptor isoforms expressed in Xenopus oocytes. (A) Comparisons of single-channel conductance for α2βδε, α2βδγ, and α2βδ2 receptor isoforms in oocytes to both the 1° and 2° amplitude classes from muscle. The values from individual recordings (filled circles) and overall mean ± SD values (open circles) are indicated for each condition. (B) Comparisons of single-channel mean burst duration of α2βδε, α2βδγ, and α2βδ2 receptor isoforms to the mean burst duration of 1° fast and slow muscle receptors. The values from individual recordings are indicated by filled circles, and the overall mean ± SD values are indicated by the open circle for each condition.

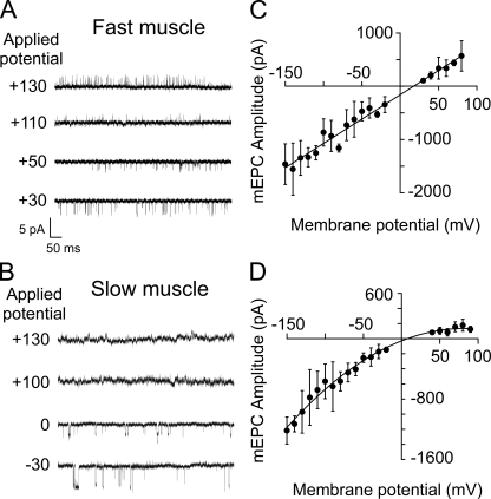

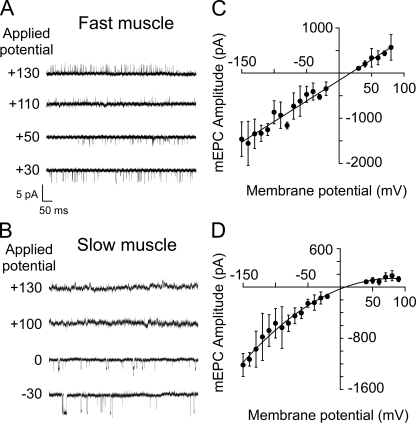

	Figure 8. Differences in rectification between fast and slow muscle ACh-activated single-channel currents. Sample single-channel traces at holding potentials that are either positive or negative to the current reversal potential (∼0 mV) for fast muscle (A) and slow muscle (B). (C) The current–voltage relations for fast muscle synaptic currents, with each point representing the mean ± SD of seven recordings, fit by a linear curve. (D) The current–voltage relations for synaptic currents in slow muscle, with each point representing the mean ± SD for 10 recordings, fit by a second-order polynomial curve.

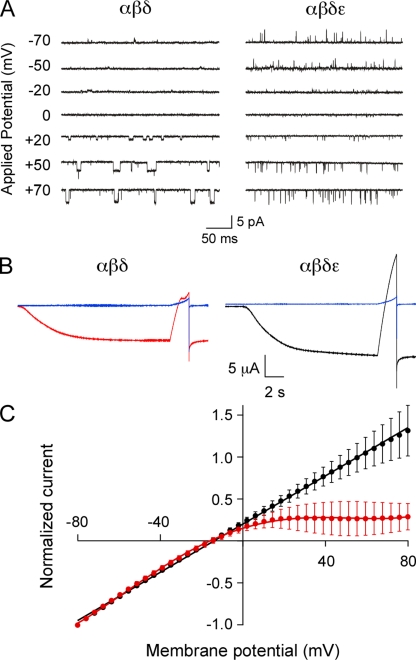

	Figure 9. Inward rectification of the zebrafish αβδ channel isoform. (A) Sample ACh-activated single-channel currents recorded at the indicated potentials from cell-attached patches of Xenopus oocytes injected with either αβδ (left) or αβδε (right) RNA. (B) Whole oocyte ACh-activated macroscopic currents recorded at −80 mV and subsequently ramped from −80 to +80 mV over a 2-s period. Oocytes were either injected with αβδ (red) or αβδε (black). Leak currents recorded before ACh application are indicated in blue. (C) Current–voltage relations of macroscopic currents from αβδ (red; n = 5) and αβδε (black; n = 3) RNA-injected oocytes were normalized to peak current and fit with fifth-order polynomial (red) or linear curves (black).

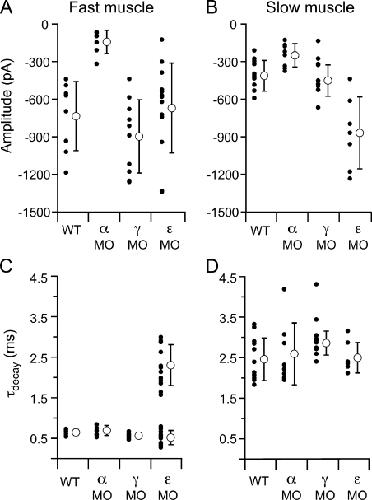

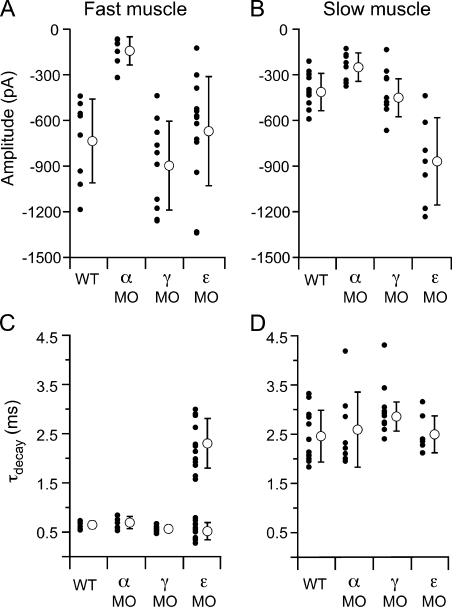

	Figure 10. Comparison of synaptic current properties after α, γ, and ε AChR subunit knockdown in fast and slow muscle. All recordings were performed at a −70 mV holding potential. (A) Mean amplitude of spontaneous synaptic currents recorded from fast muscle for individual cells (filled circles) and overall mean ± SD (open circles) for each condition. (B) Mean amplitude of spontaneous synaptic currents recorded from slow muscle for individual cells (filled circles) and overall mean ± SD (open circles) for each condition. (C) Mean τdecay values for individual fast muscle recordings (filled circles) and overall mean ± SD (open circles) for each condition. (D) Mean τdecay values for individual slow muscle recordings (filled circles) and overall mean ± SD (open circles) for each condition.

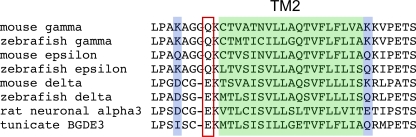

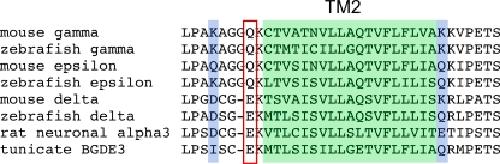

	Figure 11. Alignment of residues within AChR subunits of different species. The residues outlined with red form the intermediate charged ring and have been shown to be involved in channel rectification of rat neuronal α3 and tunicate BDGE3 subunit–containing receptors. The second transmembrane region (TM2) is indicated by the shaded green, and the outer and inner charged rings are indicated by the blue shade.

Bertrand, Zebrafish acetylcholinesterase is encoded by a single gene localized on linkage group 7. Gene structure and polymorphism; molecular forms and expression pattern during development. 2001, Pubmed

Bertrand, Zebrafish acetylcholinesterase is encoded by a single gene localized on linkage group 7. Gene structure and polymorphism; molecular forms and expression pattern during development. 2001, Pubmed
Bondi, Induction of action potentials by denervation of tonic fibres in rat extraocular muscles. 1986, Pubmed
Brehm, Acetylcholine receptor channel properties during development of Xenopus muscle cells in culture. 1984, Pubmed , Xenbase
Buckingham, Sodium and potassium currents of larval zebrafish muscle fibres. 2004, Pubmed
Buss, Physiological properties of zebrafish embryonic red and white muscle fibers during early development. 2000, Pubmed
Camacho, The epsilon subunit confers fast channel gating on multiple classes of acetylcholine receptors. 1993, Pubmed , Xenbase
Charnet, Structure of the gamma-less nicotinic acetylcholine receptor: learning from omission. 1992, Pubmed , Xenbase
Dionne, Synaptic channel gating differences at snake twitch and slow neuromuscular junctions. 1978, Pubmed
Dionne, Characteristics of the acetylcholine-operated channel at twitch and slow fibre neuromuscular junctions of the garter snake. 1981, Pubmed
Dionne, Two types of nicotinic acetylcholine receptor channels at slow fibre end-plates of the garter snake. 1989, Pubmed
Downes, Acetylcholinesterase function is dispensable for sensory neurite growth but is critical for neuromuscular synapse stability. 2004, Pubmed
Drapeau, Limits to the development of fast neuromuscular transmission in zebrafish. 2001, Pubmed
Etard, Mutation in the delta-subunit of the nAChR suppresses the muscle defects caused by lack of Dystrophin. 2005, Pubmed
Fedorov, Postsynaptic currents in different types of frog muscle fibre. 1982, Pubmed
Fischbach, A post-natal decrease in acetylcholine channel open time at rat end-plates. 1980, Pubmed
Gilly, Mechanical activation in slow and twitch skeletal muscle fibres of the frog. 1980, Pubmed
Golino, Subunit requirements for Torpedo AChR channel expression: a specific role for the delta-subunit in voltage-dependent gating. 1992, Pubmed , Xenbase
Gu, Immunological evidence for a change in subunits of the acetylcholine receptor in developing and denervated rat muscle. 1988, Pubmed
Haghighi, A molecular link between inward rectification and calcium permeability of neuronal nicotinic acetylcholine alpha3beta4 and alpha4beta2 receptors. 2000, Pubmed , Xenbase
Haghighi, Neuronal nicotinic acetylcholine receptors are blocked by intracellular spermine in a voltage-dependent manner. 1998, Pubmed , Xenbase
Hamill, Multiple conductance states of single acetylcholine receptor channels in embryonic muscle cells. 1981, Pubmed
Henderson, The single-channel basis for the slow kinetics of synaptic currents in vertebrate slow muscle fibers. 1989, Pubmed , Xenbase
Hidaka, Biophysical and mechanical properties of red and white muscle fibres in fish. 1969, Pubmed
Jackson, Spontaneous and agonist-induced openings of an acetylcholine receptor channel composed of bovine muscle alpha-, beta- and delta-subunits. 1990, Pubmed , Xenbase
Jaramillo, Embryonic acetylcholine receptors guarantee spontaneous contractions in rat developing muscle. 1988, Pubmed
Jones, The nicotinic acetylcholine receptor gene family of the pufferfish, Fugu rubripes. 2003, Pubmed
Kullberg, Development of the myotomal neuromuscular junction in Xenopus laevis: an electrophysiological and fine-structural study. 1977, Pubmed , Xenbase
Kullberg, Nonjunctional acetylcholine receptor channel open time decreases during development of Xenopus muscle. 1981, Pubmed , Xenbase
Kullberg, Contribution of cholinesterase to developmental decreases in the time course of synaptic potentials at an amphibian neuromuscular junction. 1980, Pubmed , Xenbase
Kurosaki, Functional properties of nicotinic acetylcholine receptor subunits expressed in various combinations. 1987, Pubmed , Xenbase
Liu, Expression of subunit-omitted mouse nicotinic acetylcholine receptors in Xenopus laevis oocytes. 1993, Pubmed , Xenbase
Liu, Postsynaptic development of the neuromuscular junction in mice lacking the gamma-subunit of muscle nicotinic acetylcholine receptor. 2010, Pubmed
Luna, An electrically coupled network of skeletal muscle in zebrafish distributes synaptic current. 2006, Pubmed
Michler, Receptor stability and channel conversion in the subsynaptic membrane of the developing mammalian neuromuscular junction. 1980, Pubmed
Miledi, Properties of postsynaptic channels induced by acetylcholine in different frog muscle fibres. 1981, Pubmed
Mishina, Molecular distinction between fetal and adult forms of muscle acetylcholine receptor. , Pubmed , Xenbase
Missias, Maturation of the acetylcholine receptor in skeletal muscle: regulation of the AChR gamma-to-epsilon switch. 1996, Pubmed
Nguyen, Maturation of neuromuscular transmission during early development in zebrafish. 1999, Pubmed
Nishino, A mechanism for graded motor control encoded in the channel properties of the muscle ACh receptor. 2011, Pubmed , Xenbase
Ono, Acetylcholine receptors direct rapsyn clusters to the neuromuscular synapse in zebrafish. 2004, Pubmed
Paradiso, Long-term desensitization of nicotinic acetylcholine receptors is regulated via protein kinase A-mediated phosphorylation. 1998, Pubmed , Xenbase
Ruff, Ca sensitivity and acetylcholine receptor currents of twitch and tonic snake muscle fibers. 1990, Pubmed
Sakmann, Change in synaptic channel gating during neuromuscular development. 1978, Pubmed
Sepich, An altered intron inhibits synthesis of the acetylcholine receptor alpha-subunit in the paralyzed zebrafish mutant nic1. 1998, Pubmed
Sigworth, Data transformations for improved display and fitting of single-channel dwell time histograms. 1987, Pubmed
Sine, Gamma- and delta-subunits regulate the affinity and the cooperativity of ligand binding to the acetylcholine receptor. 1991, Pubmed
Stefani, Resting potential and electrical properties of frog slow muscle fibres. Effect of different external solutions. 1969, Pubmed
Sullivan, Role of M2 domain residues in conductance and gating of acetylcholine receptors in developing Xenopus muscle. 1999, Pubmed , Xenbase
Uchitel, Characteristics of synaptic currents in frog muscle fibers of different types. 1987, Pubmed
Wen, Paired motor neuron-muscle recordings in zebrafish test the receptor blockade model for shaping synaptic current. 2005, Pubmed
Wen, Paired patch clamp recordings from motor-neuron and target skeletal muscle in zebrafish. 2010, Pubmed
Witzemann, Differential regulation of muscle acetylcholine receptor gamma- and epsilon-subunit mRNAs. 1987, Pubmed
