Biochim Biophys Acta
2011 Dec 01;181312:2000-7. doi: 10.1016/j.bbamcr.2011.08.008.
Show Gene links
Show Anatomy links
Involvement of DNA ligase III and ribonuclease H1 in mitochondrial DNA replication in cultured human cells.
Ruhanen H
,
Ushakov K
,
Yasukawa T
.
???displayArticle.abstract???
Recent evidence suggests that coupled leading and lagging strand DNA synthesis operates in mammalian mitochondrial DNA (mtDNA) replication, but the factors involved in lagging strand synthesis are largely uncharacterised. We investigated the effect of knockdown of the candidate proteins in cultured human cells under conditions where mtDNA appears to replicate chiefly via coupled leading and lagging strand DNA synthesis to restore the copy number of mtDNA to normal levels after transient mtDNA depletion. DNA ligase III knockdown attenuated the recovery of mtDNA copy number and appeared to cause single strand nicks in replicating mtDNA molecules, suggesting the involvement of DNA ligase III in Okazaki fragment ligation in human mitochondria. Knockdown of ribonuclease (RNase) H1 completely prevented the mtDNA copy number restoration, and replication intermediates with increased single strand nicks were readily observed. On the other hand, knockdown of neither flap endonuclease 1 (FEN1) nor DNA2 affected mtDNA replication. These findings imply that RNase H1 is indispensable for the progression of mtDNA synthesis through removing RNA primers from Okazaki fragments. In the nucleus, Okazaki fragments are ligated by DNA ligase I, and the RNase H2 is involved in Okazaki fragment processing. This study thus proposes that the mitochondrial replication system utilises distinct proteins, DNA ligase III and RNase H1, for Okazaki fragment maturation.

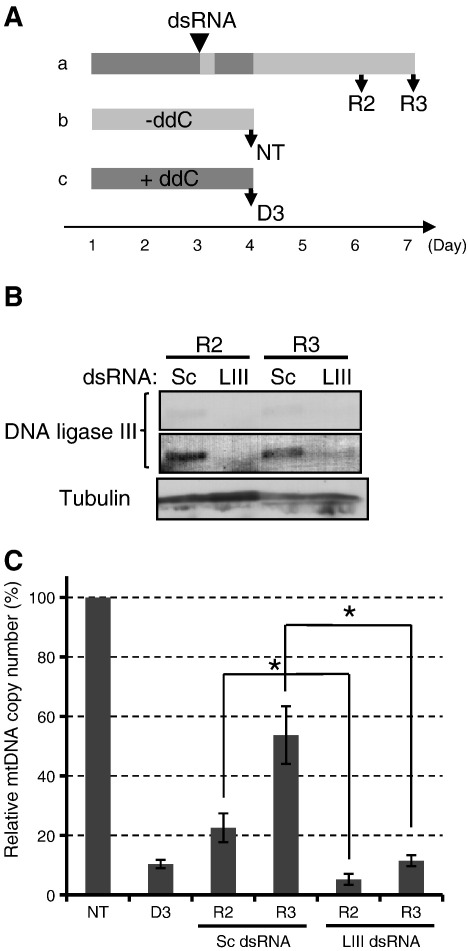

Fig. 1. Knockdown of DNA ligase III delays the recovery of mtDNA copy number. (A) Experimental design. The presence and absence of 2â²,3â²-dideoxycytidine (ddC) in the medium is indicated by dark and pale grey stripes respectively. (a) Time course of the ddC treatment and dsRNA knockdown. R2 and R3 represent the cell harvest points 2 and 3 days after ddC removal, whilst an arrowhead indicates the timing of dsRNA transfection. (b and c) Incubation of cells in medium in the absence or presence of ddC for 3 days as the non-treated or ddC-treated controls. NT and D3 represent the point of their harvest. (B) Western blot analysis of DNA ligase III levels in cell lysates prepared from cells treated with scramble (Sc) dsRNA or DNA ligase III-specific (LIII) dsRNA. The top panel shows the DNA ligase III band and the middle panel is a digitally enhanced image of the top panel. Tubulin was used as a loading control (bottom panel). (C) The relative copy number of mtDNA analysed with real-time quantitative PCR. The mtDNA content was normalised against nuclear gene content in each sample. The relative mtDNA copy number in NT sample was expressed as 100 in each experiment and those of the other samples were displayed relative to this. Data represent the mean of 3 independent transfection experiments ± SEM. * (p < 0.05).

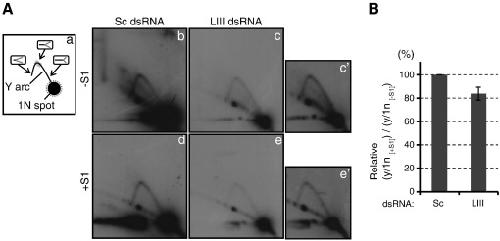

Fig. 2. Sensitivity of mtDNA replication intermediates to S1 nuclease upon DNA ligase III depletion. (A) Analysis of a DraI-digested fragment of mtDNA with two-dimensional agarose gel electrophoresis. (a) A schematic drawing of the fragment visualised by Southern hybridisation. The non-replicating molecules (1N spot) and replication intermediates (Y arc) are indicated. The molecule structure of the DraI-digested mtDNA replication intermediates at 3 different positions of Y arc is drawn in the insets with a black bar as non-replicating portion and grey bars as replicated portions of the fragment. The apex region of the Y arc used for the quantification is indicated as a grey rectangle and the region of 1N spot used for the quantification as a grey dotted circle. More information on the fragment is provided in Supplementary Fig. 1B. (bâe) The DraI-digested mtDNA fragment of scramble (Sc) dsRNA or DNA ligase III-specific (LIII) dsRNA-treated cells without (â S1) (b and c) and with S1 nuclease treatment (+ S1) (d and e). The samples in panels bâe were run in the same second dimension gel and panels bâe were produced from an X-ray film. Panels câ² and eâ² are a longer exposure version of panels c and e. (B) Numerical presentation of the Y arc stability against S1 nuclease. The value of (y/1n [+ S1])/(y/1n [â S1]) from Sc dsRNA-treated samples is expressed as 100 and the relative value from LIII dsRNA-treated samples was calculated. Data represent the mean of 3 independent transfection experiments ± SEM.Sensitivity of mtDNA replication intermediates to S1 nuclease upon DNA ligase III depletion. (A) Analysis of a DraI-digested fragment of mtDNA with two-dimensional agarose gel electrophoresis. (a) A schematic drawing of the fragment visualised by Southern hybridisation. The non-replicating molecules (1N spot) and replication intermediates (Y arc) are indicated. The molecule structure of the DraI-digested mtDNA replication intermediates at 3 different positions of Y arc is drawn in the insets with a black bar as non-replicating portion and grey bars as replicated portions of the fragment. The apex region of the Y arc used for the quantification is indicated as a grey rectangle and the region of 1N spot used for the quantification as a grey dotted circle. More information on the fragment is provided in Supplementary Fig. 1B. (bâe) The DraI-digested mtDNA fragment of scramble (Sc) dsRNA or DNA ligase III-specific (LIII) dsRNA-treated cells without (â S1) (b and c) and with S1 nuclease treatment (+ S1) (d and e). The samples in panels bâe were run in the same second dimension gel and panels bâe were produced from an X-ray film. Panels câ² and eâ² are a longer exposure version of panels c and e. (B) Numerical presentation of the Y arc stability against S1 nuclease. The value of (y/1n [+ S1])/(y/1n [â S1]) from Sc dsRNA-treated samples is expressed as 100 and the relative value from LIII dsRNA-treated samples was calculated. Data represent the mean of 3 independent transfection experiments ± SEM.

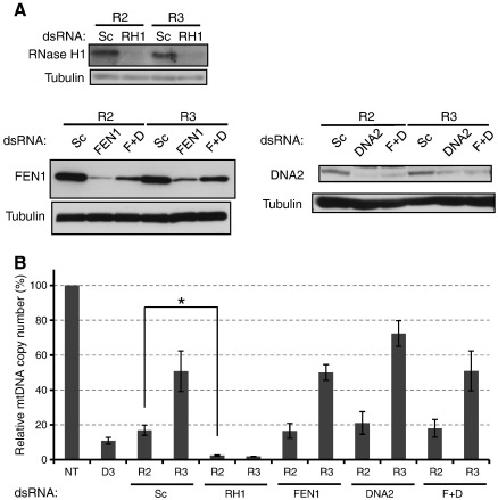

Fig. 3. Knockdown of RNase H1, but neither FEN1 nor DNA2 inhibits mtDNA replication. Cells were transiently treated with 2â²,3â²-dideoxycytidine and transfected with scramble (Sc) dsRNA, RNase H1-specific (RH1) dsRNA, FEN1-specific (FEN1) dsRNA, DNA2-specific (DNA2) dsRNA and both FEN1 dsRNA and DNA2 dsRNA (F + D) as in the diagram of Fig. 1A. (A) Western blot analysis of RNase H1, FEN1 and DNA2 levels. Below each panel Tubulin is shown as loading control. (B) The relative copy number of mtDNA analysed with real-time quantitative qPCR. The interpretation of the graph is as in Fig. 1C. Data represent the mean of 3 independent transfection experiments ± S.E.M. * (p < 0.05).

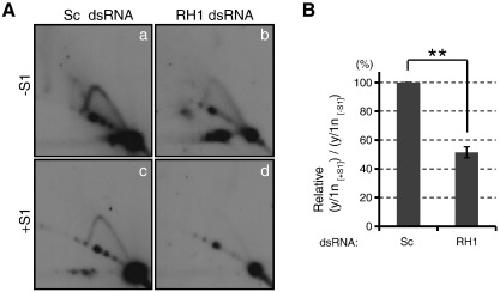

Fig. 4. RNase H1 depletion causes enhanced sensitivity to S1 nuclease of mtDNA replication intermediates. (A) Analysis of a DraI-digested mtDNA fragment as in Fig. 2A from cells treated with scramble (Sc) dsRNA or RNase H1-specific (RH1) dsRNA (â S1) (a and b) and those with S1 nuclease treatment (+ S1) (c and d). The images were produced from a single membrane exposed to an X-ray film. (B) Numerical presentation of the Y arc stability against S1 nuclease upon knockdown with RH1 dsRNA. The presentation of the graph is the same as in Fig. 2B. Data represent the mean of 3 independent transfection experiments ± S.E.M. One of the three transfection experiments in Fig. 3B was not used for the production of this graph. Thus the 2D-AGE image from an additional transfection experiment was used instead. ** (p < 0.01).

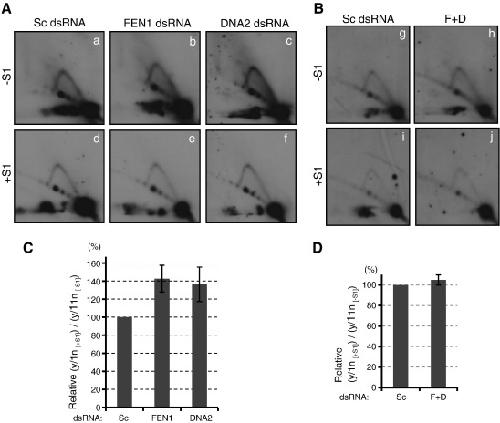

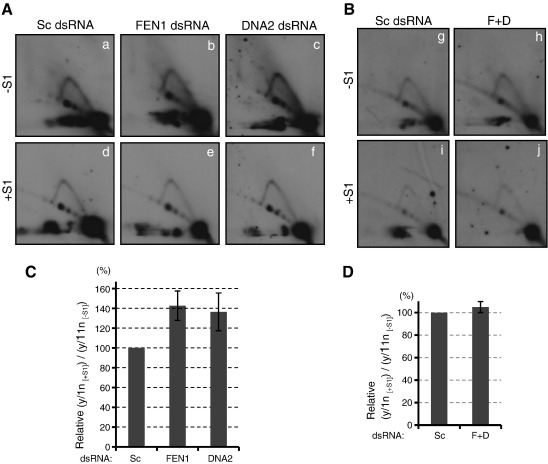

Fig. 5. Knockdown of FEN1 and DNA2 does not increase the sensitivity of mtDNA replication intermediates to S1 nuclease. Two-dimensional agarose gel electrophoresis analysis of a DraI-digested mtDNA fragment. Samples were prepared from cells transfected with scramble (Sc) dsRNA, FEN1-specific (FEN1) dsRNA, DNA2-specific (DNA2) dsRNA or both (F + D). (A) Panels a, b and c are samples transfected with Sc, FEN1 and DNA2 dsRNA without S1 nuclease treatment (â S1) respectively, and panels d, e, and f are those with S1 nuclease treatment (+ S1) respectively. Panels aâf were produced from an X-ray film. (B) Panels g and h are samples with the control and double knockdown of FEN1 and DNA2 without S1 nuclease treatment (â S1) respectively, and panels i and j are those with S1 nuclease treatment (+ S1) respectively. Panels gâj were produced from an X-ray film. (C and D) Numerical presentation of the Y arc stability against S1 nuclease upon knockdown with FEN1 dsRNA, DNA2 dsRNA (C) and the double knockdown of FEN1 and DNA2 (F + D) (D). The presentation of the graph is the same as in Fig. 2B. Data represent the mean of 3 independent transfection experiments ± S.E.M. (C) and the mean of 2 independent transfection experiments with the bars representing the range of the values (D).
