Sci Rep
2016 Oct 25;6:36018. doi: 10.1038/srep36018.
Show Gene links
Show Anatomy links
Red blood cell thickness is evolutionarily constrained by slow, hemoglobin-restricted diffusion in cytoplasm.
Richardson SL
,
Swietach P
.
???displayArticle.abstract???
During capillary transit, red blood cells (RBCs) must exchange large quantities of CO2 and O2 in typically less than one second, but the degree to which this is rate-limited by diffusion through cytoplasm is not known. Gas diffusivity is intuitively assumed to be fast and this would imply that the intracellular path-length, defined by RBC shape, is not a factor that could meaningfully compromise physiology. Here, we evaluated CO2 diffusivity (DCO2) in RBCs and related our results to cell shape. DCO2 inside RBCs was determined by fluorescence imaging of [H+] dynamics in cells under superfusion. This method is based on the principle that H+ diffusion is facilitated by CO2/HCO3- buffer and thus provides a read-out of DCO2. By imaging the spread of H+ ions from a photochemically-activated source (6-nitroveratraldehyde), DCO2 in human RBCs was calculated to be only 5% of the rate in water. Measurements on RBCs containing different hemoglobin concentrations demonstrated a halving of DCO2 with every 75 g/L increase in mean corpuscular hemoglobin concentration (MCHC). Thus, to compensate for highly-restricted cytoplasmic diffusion, RBC thickness must be reduced as appropriate for its MCHC. This can explain the inverse relationship between MCHC and RBC thickness determined from >250 animal species.

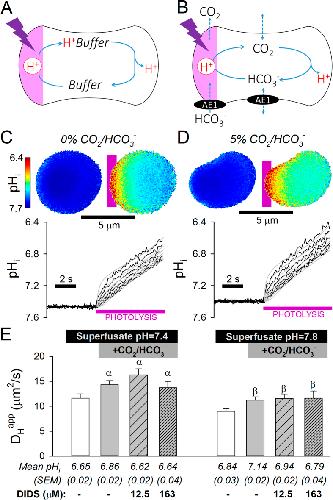

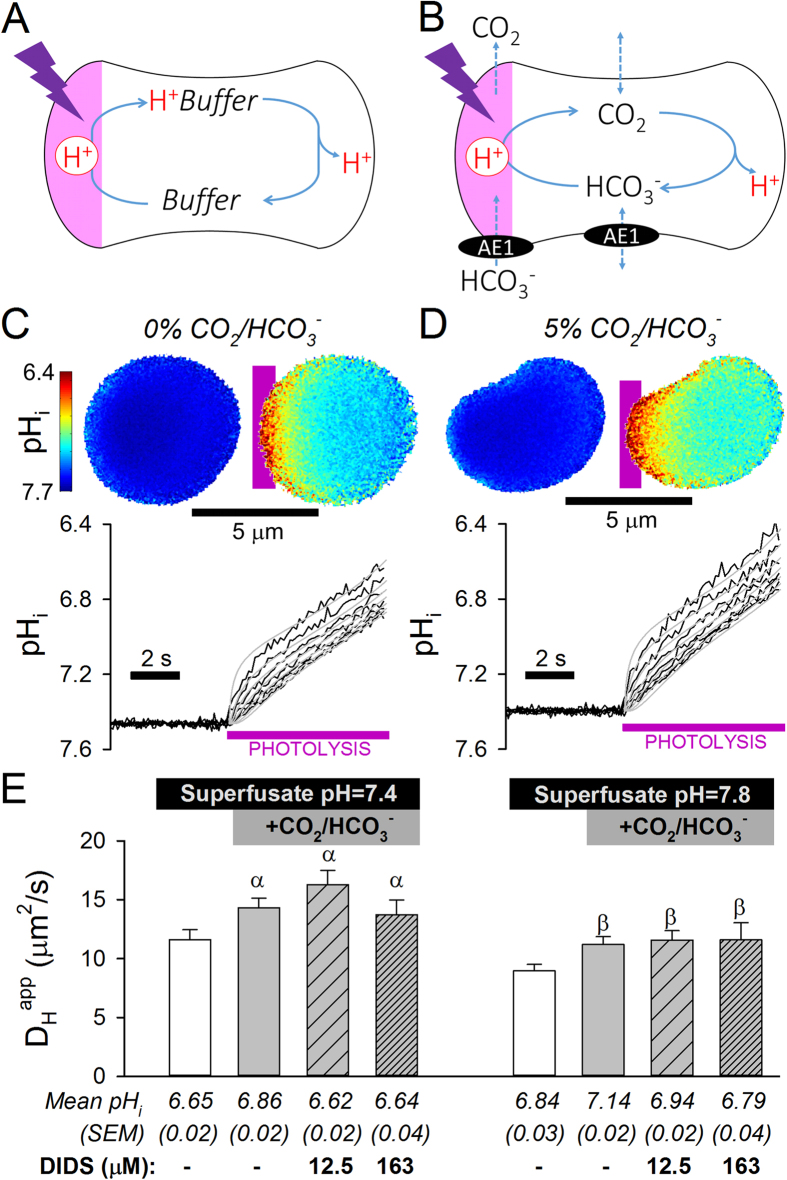

Figure 1. H+ mobility in the cytoplasm of human RBCs is a read-out of CO2/HCO3− diffusivity.(A) Buffer (e.g. hemoglobin) facilitated H+ diffusion from a local H+-uncaging site (photolysis of 6-nitroveratraldehyde). (B) H+ diffusion facilitated additionally by CO2/HCO3−. Membrane HCO3− permeability is set by AE1 (anion exchanger 1) activity. (C) Human RBC superfused in CO2/HCO3−-free buffer (at pH 7.8). H+ ions diffuse slowly from uncaging site, as shown by maps of intracellular pH (pHi) before and after 2 s of uncaging and pHi time courses in regions of interest (ROIs) at increasing distance from the uncaging site. The width of each ROI was 1/10th of RBC’s major diameter; data for ROIs 1 (uncaging site), 2, 3, 4, 5, 6 and 8 shown. Grey curves are best fit using a diffusion equation. (D) Experiment on RBCs superfused with 5% CO2/HCO3− (at pH 7.8). The diffusion equation is solved using the finite element method which takes fully into account differences in cell outline, as observed between the cells shown in panels C and D. (E) Apparent H+ diffusion coefficients (DHapp; mean ± SEM of 10–35 cells), showing the small effect of the CO2/HCO3− buffer-shuttle. Where indicated, DIDS was added to block AE1. Symbols α and β denote significance (P < 0.05; P < 0.02) compared to measurements in the absence of CO2/HCO3−.

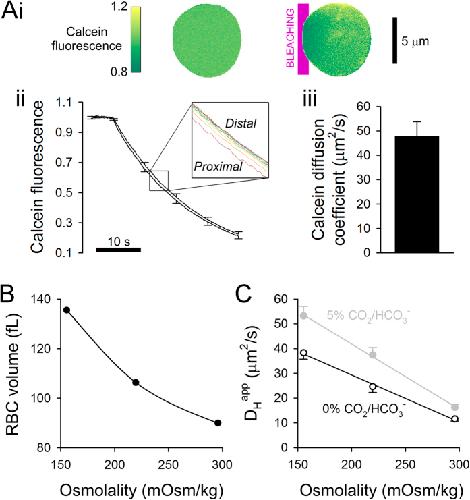

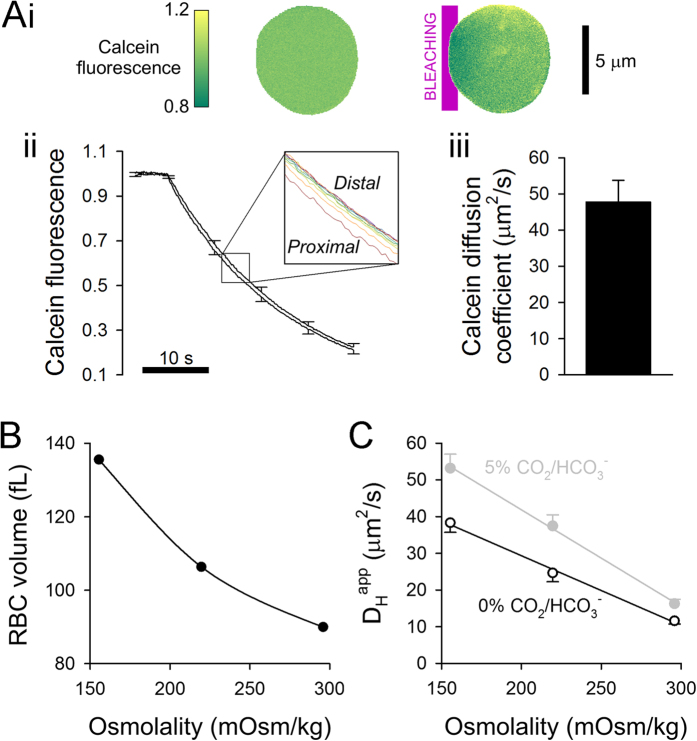

Figure 2. Hemoglobin concentration restricts cytoplasmic diffusivity.(A) Probing the diffusive tortuosity of RBC cytoplasm using calcein. (i) Localized bleaching (purple band) of calcein in intact human red blood cells (mean ± SEM of 16 cells) with a high-intensity 488 nm laser evoked a diffusive flux of calcein from non-bleached regions. Fluorescence maps normalized to the cell-averaged signal before bleaching (left) and after 20 s of localized bleaching (right). (ii) Calcein diffusivity was derived by best-fitting fluorescence time courses averaged in 10 regions of interest (ROIs; defined in the same way as for H+ uncaging experiments). (iii) Calcein diffusion coefficient (mean ± SEM of 16 cells). (B) Osmotic swelling of human RBCs (flow cytometry repeated thrice; >50,000 cells each) dilutes hemoglobin concentration. (C) Apparent H+ diffusivity (DHapp) increases as hemoglobin concentration is reduced, but the relationship is steeper in the presence of CO2/HCO3− (plus 12.5 μM DIDS), indicative of increasing diffusive freedom for CO2/HCO3− to facilitate H+ mobility (mean ± SEM of 9–28 cells).

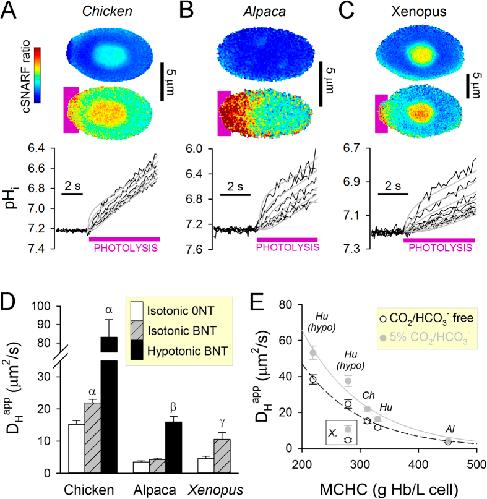

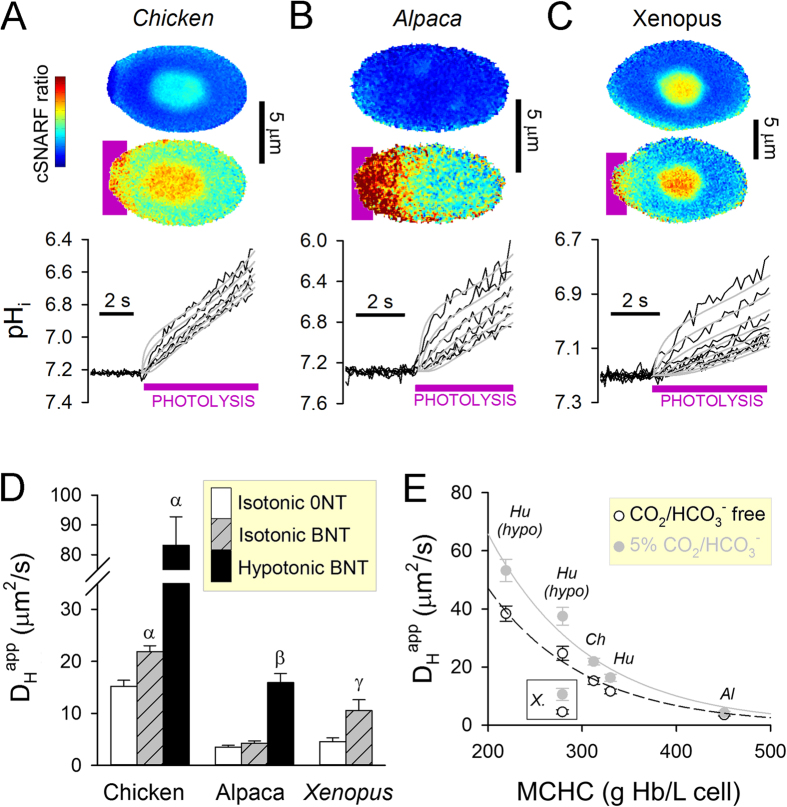

Figure 3. Measuring cytoplasmic H+ mobility in RBCs from different animal species.(A,B) H+ diffusion measurements in chicken and alpaca RBCs were performed according to the protocol for human RBCs (superfusate pH 7.8 and 37â°C). (C) For cold-blooded Xenopus RBCs, superfusates were at pH 7.5 and 25â°C. N.B.: For measuring fluorescence in ROIs, the signal from the nuclei was excluded. Measured pHi time courses (black; in ROIs 1, 2, 3, 4, 5, 6, 8) are superimposed with best-fit time courses (grey), determined by the least-squares method. (D) DHapp in chicken, alpaca and Xenopus RBCs measured in isotonic CO2/HCO3â-free buffer (0NT; meanâ±âSEM of 14, 21, 19 cells), isotonic CO2/HCO3â-containing buffer (BNT; meanâ±âSEM of 18, 25, 13 cells) or hypotonic BNT (meanâ±âSEM of 7, 19 cells). Superfusates were at pH 7.8 and 37â°C for mammals, and pH 7.5 and 25â°C for Xenopus. Osmotic swelling increases DHapp (not tested in Xenopus RBCs due to osmotic fragility). Symbols α, β and γ denote significance (Pâ<â0.0005) compared to measurements in isotonic 0NT. (E) DHapp decreases with increasing mean corpuscular hemoglobin concentration (MCHC). Hu-human, Ch-chicken, Al-alpaca, X.-Xenopus; hypo: osmotically-swollen cells. The facilitatory effect of CO2/HCO3â on DHapp diminishes at higher MCHC.

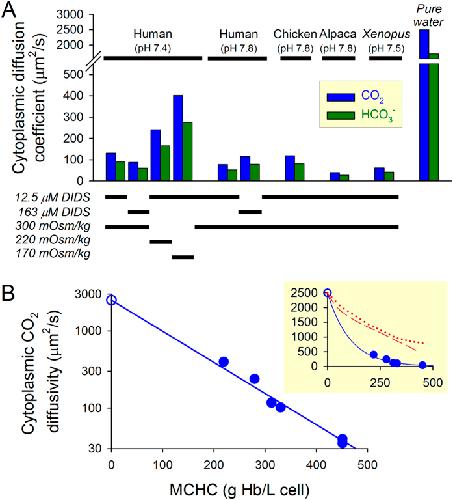

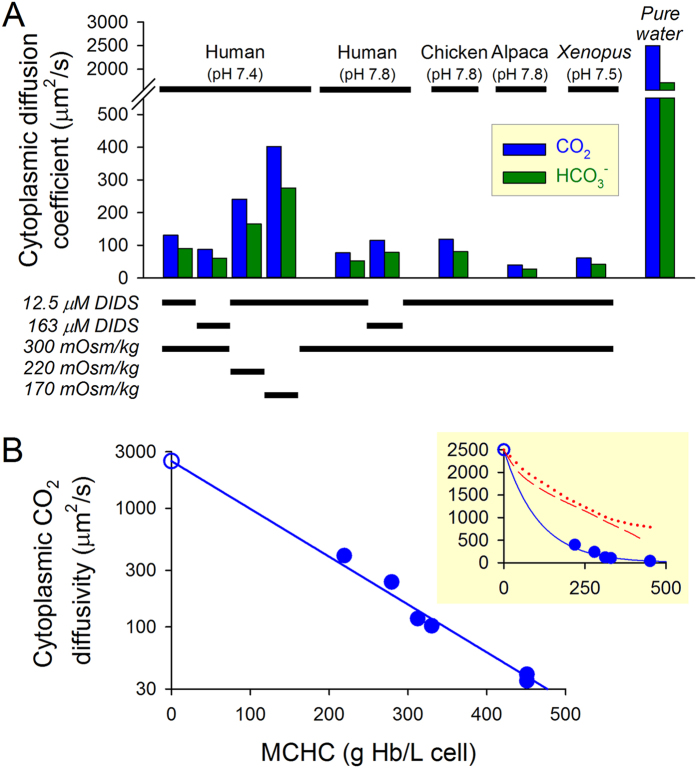

Figure 4. CO2 diffuses slowly in RBC cytoplasm.(A) Cytoplasmic CO2 and HCO3− diffusion coefficients calculated from DHapp (37 °C for human, chicken and alpaca, 25 °C for Xenopus) compared to data for pure water. (B) Cytoplasmic CO2 diffusivity fitted to an exponentially-declining function of mean corpuscular hemoglobin concentration (MCHC). Filled circles: data from human, chicken and alpaca RBCs; open circle: data for water (all 37 °C). Cytoplasmic CO2 diffusivity halves for every 75 g/L increase in MCHC. Inset: plot on linear y-axis, with data from ref. 2 (dashed line) and ref. 14 (dotted line) for gas diffusion coefficients normalized to CO2 diffusivity in water (2500 μm2/s).

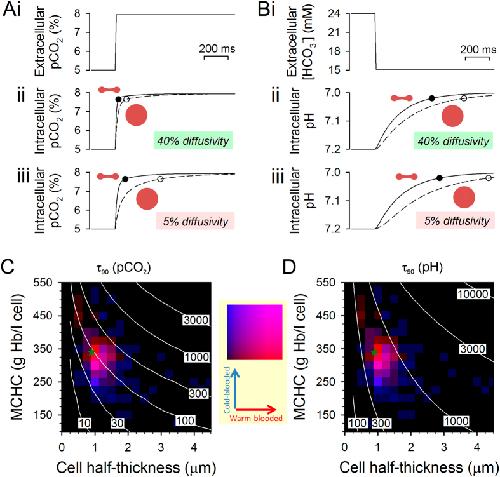

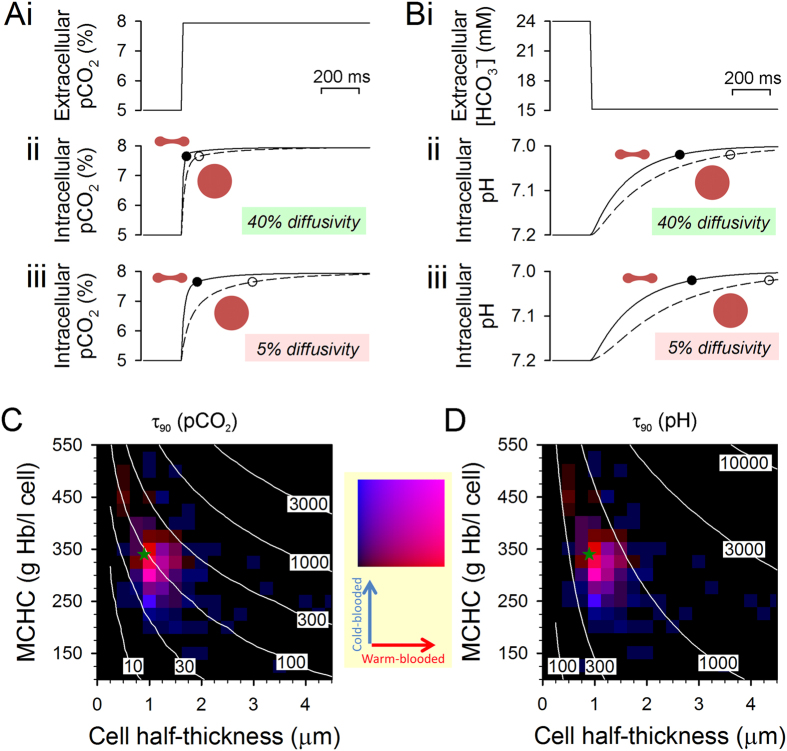

Figure 5. Results of mathematical simulations.(A) Time-to-complete 90% equilibration (Ï90) of pCO2 inside RBC in response to an increase in ambient [CO2] (a respiratory acidosis of 7.2). (i) Extracellular pCO2. (ii) Simulations with fast DCO2 diffusivity: 40% of rate in water, as determined in cell-free solutions. Intracellular pCO2 in a flattened human RBC (continuous line) and a hypothetical spherical version of the same diameter (dashed line). Circles indicate Ï90. (iii) Simulations repeated with more restricted DCO2 diffusivity: at 5% of rate in water. The benefit of a flattened shape is more apparent with slow DCO2. (B) Time-to-complete 90% (Ï90) of acid uptake by an RBC in response to a decrease in ambient [HCO3â] (a metabolic acidosis of 7.2). (i) Extracellular [HCO3â]. (iii) Simulations with fast DCO2 for flattened (continuous line) and spherical (dashed line) cells. Circles indicate Ï90. (iii) Simulations repeated with more restricted DCO2. (C) Heat map showing binned data on MCHC and RBC half-thickness data from >250 species of cold- and warm-blooded animals (see inset for look-up table). Superimposed contours (units: ms) show model predictions for time-to-complete 90% equilibration Ï90 of pCO2 in RBCs, based on human RBC data modified accordingly for thickness, MCHC and hence diffusivity of CO2, HCO3â and hemoglobin. Most species fall in the range 0.03 sâ<âÏ90â<â0.3 s. (D) Heat map superimposed with model predictions for time-to-complete 90% (Ï90) acid uptake into RBCs, based on human RBC data modified according for thickness, MCHC and hence diffusivity of CO2, HCO3â and hemoglobin. Most species fall in the range 0.3 sâ<âÏ90â<â1 s.
Canham,
The minimum energy of bending as a possible explanation of the biconcave shape of the human red blood cell.
1970, Pubmed
Canham,
The minimum energy of bending as a possible explanation of the biconcave shape of the human red blood cell.
1970,
Pubmed
Cass,
Equilibrium dialysis of ions in nystatin-treated red cells.
1973,
Pubmed
Chien,
Red cell deformability and its relevance to blood flow.
1987,
Pubmed
Cooper,
CrossTalk proposal: Physiological CO2 exchange can depend on membrane channels.
2015,
Pubmed
Cynober,
Red cell abnormalities in hereditary spherocytosis: relevance to diagnosis and understanding of the variable expression of clinical severity.
1996,
Pubmed
Dauty,
Molecular crowding reduces to a similar extent the diffusion of small solutes and macromolecules: measurement by fluorescence correlation spectroscopy.
2004,
Pubmed
Dix,
Crowding effects on diffusion in solutions and cells.
2008,
Pubmed
Endeward,
Extra- and intracellular unstirred layer effects in measurements of CO2 diffusion across membranes--a novel approach applied to the mass spectrometric 18O technique for red blood cells.
2009,
Pubmed
Fedosov,
Predicting human blood viscosity in silico.
2011,
Pubmed
Fedosov,
Multiscale modeling of blood flow: from single cells to blood rheology.
2014,
Pubmed
Geers,
Carbon dioxide transport and carbonic anhydrase in blood and muscle.
2000,
Pubmed
Grebe,
Erythrocyte shape simulation by numerical optimization.
1990,
Pubmed
Gros,
The diffusion of carbon dioxide in erythrocytes and hemoglobin solutions.
1971,
Pubmed
Gros,
Evidence for rotational contribution to protein-facilitated proton transport.
1984,
Pubmed
GUEST,
RED BLOOD CELLS: CHANGE IN SHAPE IN CAPILLARIES.
1963,
Pubmed
Holland,
The effect of size of red cells on the kinetics of their oxygen uptake.
1966,
Pubmed
Hulikova,
Stromal uptake and transmission of acid is a pathway for venting cancer cell-generated acid.
2016,
Pubmed
Irving,
Intracellular diffusion in the presence of mobile buffers. Application to proton movement in muscle.
1990,
Pubmed
Jones,
The important of surface area/volume ratio to the rate of oxygen uptake by red cells.
1979,
Pubmed
Junge,
The role of fixed and mobile buffers in the kinetics of proton movement.
1987,
Pubmed
Lim H W,
Stomatocyte-discocyte-echinocyte sequence of the human red blood cell: evidence for the bilayer- couple hypothesis from membrane mechanics.
2002,
Pubmed
Noguchi,
Shape transitions of fluid vesicles and red blood cells in capillary flows.
2005,
Pubmed
Pawloski,
Export by red blood cells of nitric oxide bioactivity.
2001,
Pubmed
Perrotta,
Hereditary spherocytosis.
2008,
Pubmed
Pivkin,
Biomechanics of red blood cells in human spleen and consequences for physiology and disease.
2016,
Pubmed
Reinhart,
Red cell rheology in stomatocyte-echinocyte transformation: roles of cell geometry and cell shape.
1986,
Pubmed
Richards,
Intracellular tortuosity underlies slow cAMP diffusion in adult ventricular myocytes.
2016,
Pubmed
Riggs,
The Bohr effect.
1988,
Pubmed
Rummer,
Root effect hemoglobin may have evolved to enhance general tissue oxygen delivery.
2013,
Pubmed
Seely,
Carnosine levels in blood.
1981,
Pubmed
Shelby,
A microfluidic model for single-cell capillary obstruction by Plasmodium falciparum-infected erythrocytes.
2003,
Pubmed
Spitzer,
Facilitation of intracellular H(+) ion mobility by CO(2)/HCO(3)(-) in rabbit ventricular myocytes is regulated by carbonic anhydrase.
2002,
Pubmed
Stewart,
A novel role for carbonic anhydrase: cytoplasmic pH gradient dissipation in mouse small intestinal enterocytes.
1999,
Pubmed
Swietach,
Relationship between intracellular pH and proton mobility in rat and guinea-pig ventricular myocytes.
2005,
Pubmed
Swietach,
Hydrogen ion dynamics in human red blood cells.
2010,
Pubmed
Swietach,
Modelling intracellular H(+) ion diffusion.
2003,
Pubmed
Swietach,
pH-Dependence of extrinsic and intrinsic H(+)-ion mobility in the rat ventricular myocyte, investigated using flash photolysis of a caged-H(+) compound.
2007,
Pubmed
Tomaiuolo,
Start-up shape dynamics of red blood cells in microcapillary flow.
2011,
Pubmed
Tomaiuolo,
Biomechanical properties of red blood cells in health and disease towards microfluidics.
2014,
Pubmed
Uzoigwe,
The human erythrocyte has developed the biconcave disc shape to optimise the flow properties of the blood in the large vessels.
2006,
Pubmed
Van Balgooy,
Carnosine in nucleated erythrocytes.
1974,
Pubmed
Vandegriff,
Morphological and physiological factors affecting oxygen uptake and release by red blood cells.
1984,
Pubmed
van der Harst,
Seventy-five genetic loci influencing the human red blood cell.
2012,
Pubmed
Wagner,
Diffusion and chemical reaction in pulmonary gas exchange.
1977,
Pubmed
Waisbren,
Unusual permeability properties of gastric gland cells.
1994,
Pubmed
Wang,
Myoglobin and hemoglobin rotational diffusion in the cell.
1997,
Pubmed
