Protein and Chemical Determinants of BL-1249 Action and Selectivity for K2P Channels.

Pope L , Arrigoni C , Lou H , Bryant C , Gallardo-Godoy A , Renslo AR , Minor DL .

???displayArticle.abstract???
K2P potassium channels generate leak currents that stabilize the resting membrane potential of excitable cells. Various K2P channels are implicated in pain, ischemia, depression, migraine, and anesthetic responses, making this family an attractive target for small molecule modulator development efforts. BL-1249, a compound from the fenamate class of nonsteroidal anti-inflammatory drugs is known to activate K2P2.1(TREK-1), the founding member of the thermo- and mechanosensitive TREK subfamily; however, its mechanism of action and effects on other K2P channels are not well-defined. Here, we demonstrate that BL-1249 extracellular application activates all TREK subfamily members but has no effect on other K2P subfamilies. Patch clamp experiments demonstrate that, similar to the diverse range of other chemical and physical TREK subfamily gating cues, BL-1249 stimulates the selectivity filter "C-type" gate that controls K2P function. BL-1249 displays selectivity among the TREK subfamily, activating K2P2.1(TREK-1) and K2P10.1(TREK-2) ∼10-fold more potently than K2P4.1(TRAAK). Investigation of mutants and K2P2.1(TREK-1)/K2P4.1(TRAAK) chimeras highlight the key roles of the C-terminal tail in BL-1249 action and identify the M2/M3 transmembrane helix interface as a key site of BL-1249 selectivity. Synthesis and characterization of a set of BL-1249 analogs demonstrates that both the tetrazole and opposing tetralin moieties are critical for function, whereas the conformational mobility between the two ring systems impacts selectivity. Together, our findings underscore the landscape of modes by which small molecules can affect K2P channels and provide crucial information for the development of better and more selective K2P modulators of the TREK subfamily.

???displayArticle.pubmedLink??? 30089357
???displayArticle.pmcLink??? PMC6302903
???displayArticle.link??? ACS Chem Neurosci
???displayArticle.grants??? [+]

Species referenced: Xenopus laevis
Genes referenced: kcnk4

???attribute.lit??? ???displayArticles.show???

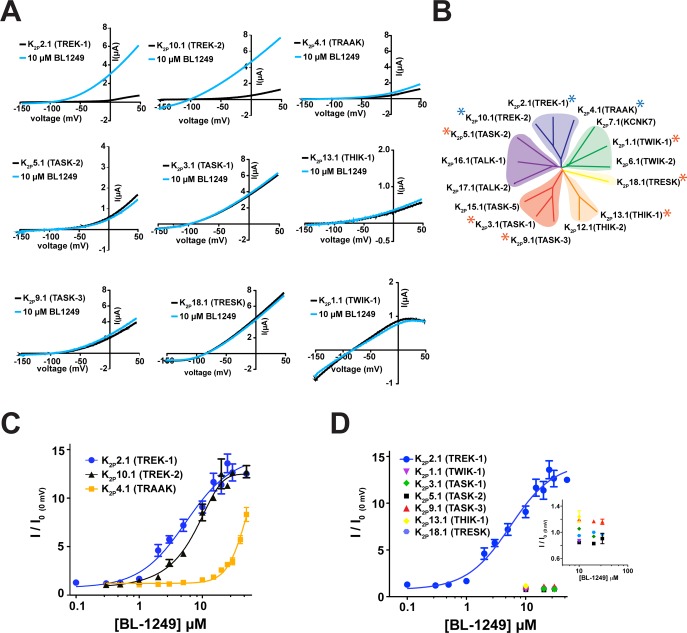

	Figure 1. External application of BL-1249 selectively activates mechanosensitive K2P channels. (A) Exemplar current traces for specified K2P channels (black) with 10 μM BL-1249 (light blue) as measured via TEVC in Xenopus oocytes. (B) K2P channel phylogenetic tree. Stars denote assayed representative K2P channels. Blue stars indicate BL-1249 responsive channels. (C) BL-1249 dose–response curves for K2P2.1(TREK-1) (blue circles), K2P10.1(TREK-2) (black triangles), and K2P4.1(TRAAK) (orange squares). EC50 = 5.5 ± 1.2 μM, 8.0 ± 0.8 μM, and 48 ± 10 μM, respectively. (D) BL-1249 responses of indicated K2P channels. Inset shows expanded view of poorly responsive K2P channels. Error bars are SEM.

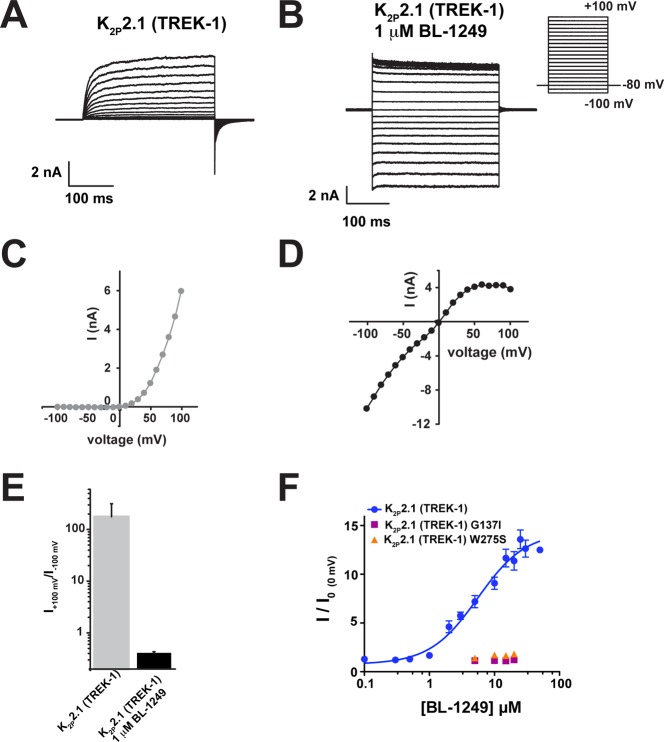

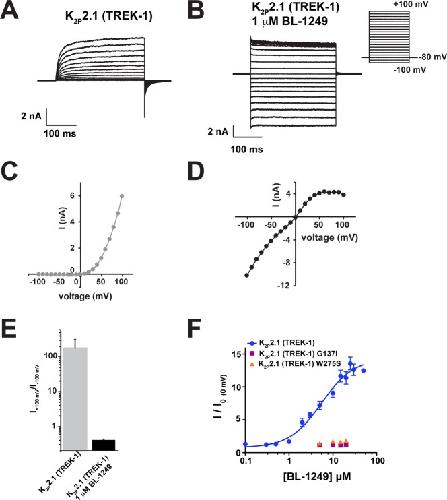

	Figure 2. BL-1249 activates the K2P2.1(TREK-1) C-type gate. (A, B) Exemplar current traces for (A) K2P2.1(TREK-1) and (B) K2P2.1(TREK-1) with 1 μM BL-1249 in HEK293 inside-out patches in 150 mM K+[out]/150 mM Rb+[in]. Inset shows voltage protocol. (C, D) Current–voltage relationships for (C) K2P2.1(TREK-1) and (D) K2P2.1(TREK-1) with 1 μM BL-1249. (E) Rectification coefficients (I+100mV/I–100mV) from recordings (n ≥ 3) made in panels A–D. (F) Dose–response curves in Xenopus oocytes for K2P2.1(TREK-1) (blue circles), K2P2.1(TREK-1) G137I (purple squares), and K2P2.1(TREK-1) W275S (orange triangles). K2P2.1(TREK-1), 5.5 ± 1.2 μM; G137I and W275S, >60 μM. K2P2.1(TREK-1) data are from Figure 1C. Error bars are SEM.

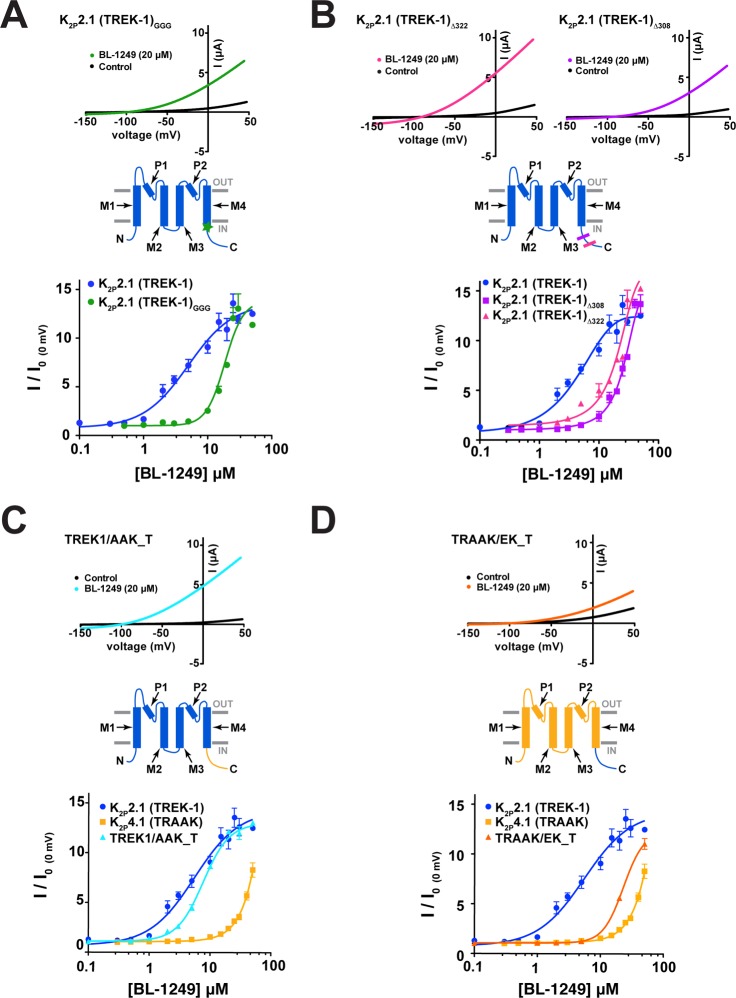

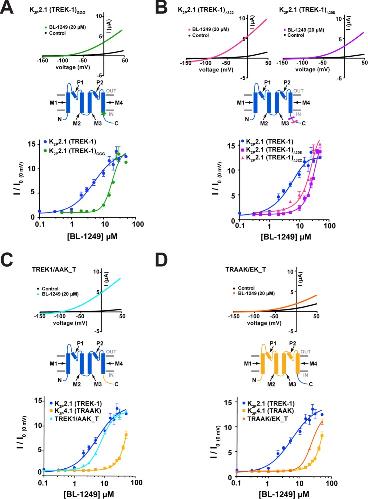

	Figure 3. K2P2.1(TREK-1) C-terminus affects BL-1249 response. (A) Exemplar current traces for K2P2.1(TREK-1)GGG (black) with 20 μM BL-1249 (green) and BL-1249 dose–response curves for K2P2.1(TREK-1) (blue circles) and K2P2.1(TREK-1)GGG (green circles) (EC50 = 5.5 ± 1.2 μM and 19 ± 1 μM, respectively). Green star in cartoon indicates site of GGG mutation. (B) Exemplar current traces for K2P2.1(TREK-1)μ322 (magenta) and K2P2.1(TREK-1)μ308 (purple) with 20 μM BL-1249 and BL-1249 dose–response curves for K2P2.1(TREK-1) (blue circles), K2P2.1(TREK-1)Δ322 (purple squares), and K2P2.1(TREK-1)Δ308 (magenta triangles). (EC50 = 5.5 ± 1.2 μM, 26 ± 8 μM, and 35 ± 8 μM, respectively). Magenta and purple lines in cartoon indicate sites of Δ322 and Δ308 truncations, respectively. (C) Exemplar current traces for TREK-1/AAK_T alone (black) and with 20 μM BL-1249 (cyan). BL-1249 dose–response curves for K2P2.1(TREK-1) (blue circles), K2P4.1(TRAAK) (light orange squares), and TRAAK/EK-1_T (light blue triangles). (EC50 = 5.5 ± 1.2 μM, 48 ± 10 μM, and 7.7 ± 0.6 μM, respectively). Cartoon indicates TREK-1/AAK_T channel regions from K2P2.1 (blue) and K2P4.1 (yellow). (D) Exemplar current traces for TRAAK/EK_T alone (black) and with 20 μM BL-1249 (orange). BL-1249 dose–response curves for K2P2.1(TREK-1) (blue circles), K2P4.1(TRAAK) (light orange squares), and TRAAK/EK_T (orange triangles) (EC50 = 5.5 ± 1.2 μM, 48 ± 10 μM, and 23 ± 4 μM, respectively). Cartoon indicates TRAAK/EK_T channel regions from K2P2.1 (blue) and K2P4.1 (light orange). In panels A–D, K2P2.1(TREK-1) and K2P4.1(TRAAK) data are from Figure 1C. Error bars are SEM.

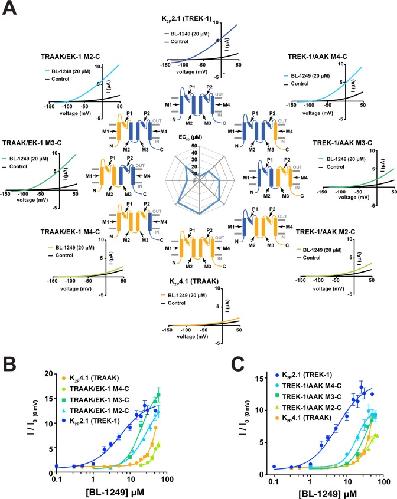

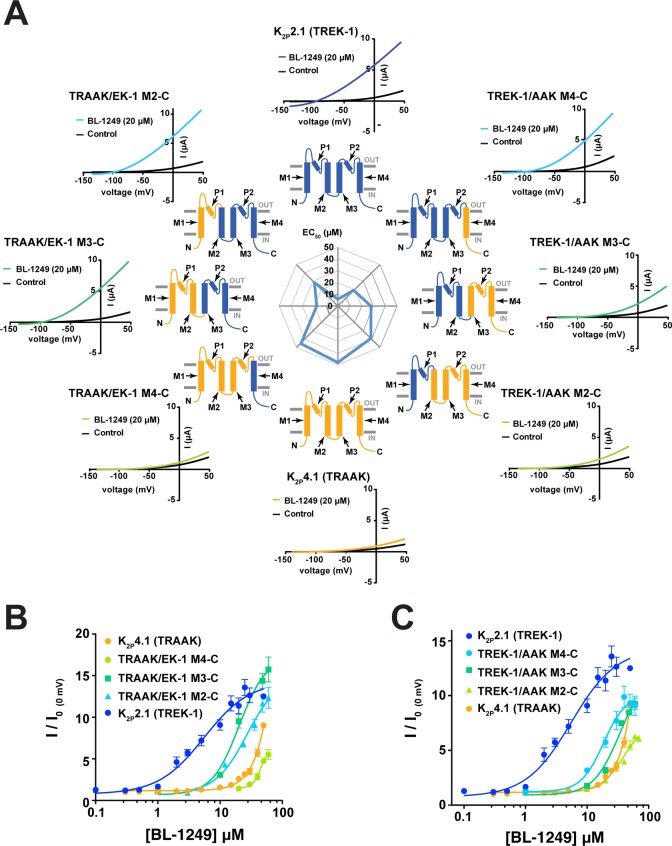

	Figure 4. BL-1249 responses of TREK-1/TRAAK chimeras (A) Exemplar current traces for of BL-1249 responses for K2P2.1(TREK-1) (blue), K2P4.1(TRAAK) (light orange), and chimeras TREK-1/AAK M4-C (light blue), TREK-1/AAK M3-C (green), TREK-1/AAK M2-C (light green), TRAAK/EK-1 M4-C (light green), TRAAK/EK-1 M3-C (green), and TRAAK/EK-1 M2-C (light blue). Black and colored traces show basal and currents with 20 μM BL-1249, respectively. Cartoon schematics show channel portions from K2P2.1(TREK-1) (blue) and K2P4.1(TRAAK) (light orange). (B, C) Dose–response curves for K2P2.1(TREK-1), K2P4.1(TRAAK), and the indicated chimeras. (EC50 = 5.5 ± 1.2 μM, 48 ± 10 μM, 19 ± 3 μM, 28 ± 3 μM, 39 ± 9 μM, 45 ± 2 μM, 18 ± 2 μM, and 28 ± 5 μM for K2P2.1(TREK-1), K2P4.1(TRAAK), TREK-1/AAK M4-C, TREK-1/AAK M3-C, TREK-1/AAK M2-C, TRAAK/EK-1 M4-C, TRAAK/EK-1 M3-C, and TRAAK/EK-1 M2-C, respectively). K2P2.1(TREK-1) and K2P4.1(TRAAK) data are from Figure 1C. Error bars are SEM.

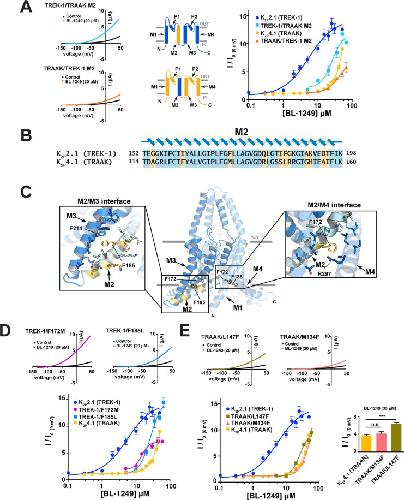

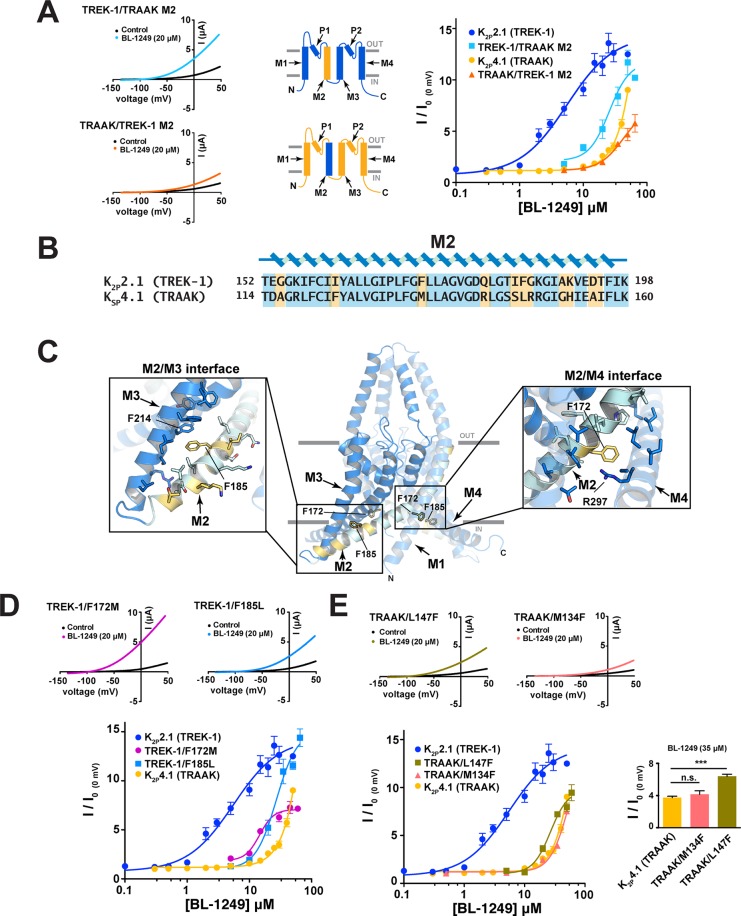

	Figure 5. M2 residues contribute to BL-1249 selectivity between K2P2.1(TREK-1) and K2P4.1(TRAAK). (A) Exemplar current traces for TREK-1/TRAAK M2 (light blue) and TRAAK/TREK-1 M2 (orange) with 20 μM BL-1249 (left). Insets depict M2 helix swap. BL-1249 dose–response curves (right) for K2P2.1(TREK-1) (blue circles), TREK-1/TRAAK M2 (light blue squares), K2P4.1(TRAAK) (light orange circles), and TRAAK/TREK-1 M2 (orange triangles). (EC50 = 5.5 ± 1.2 μM, 26 ± 8 μM, 48 ± 10 μM, and 43 ± 11 μM, respectively). (B) Alignment of K2P2.1(TREK-1) and K2P4.1(TRAAK) M2 sequences. Nonconserved residues are highlighted in yellow. (C) K2P2.1(TREK-1) (PDB 6CQ6)6 structure. Residues that differ from K2P4.1(TRAAK) are highlighted yellow. Panel insets show the environment surrounding the highlighted M2 residues. (D) Exemplar current traces for TREK-1/F172M (pink) and TREK-1/F185L (light blue), with 20 μM BL-1249. BL-1249 dose–response curves for K2P2.1(TREK-1) (blue circles), TREK-1/F172M (pink circles), K2P2.1 (F185L) (light blue squares), and K2P4.1(TRAAK) (light orange circles). (EC50 = 5.5 ± 1.2 μM, 15 ± 2 μM, 27 ± 5 μM, and 48 ± 10 μM, respectively). (E) Exemplar current traces for TRAAK/M134F (orange triangles) and TRAAK/L147F (olive green squares) with 20 μM BL-1249. BL-1249 dose–response curves for K2P2.1(TREK-1) (blue circles), TRAAK/M134F (orange triangles), TRAAK/L147F (olive green squares), and K2P4.1(TRAAK) (light orange circles). (EC50 = 5.5 ± 1.2 μM, 58 ± 34 μM, 27 ± 4 μM, and 48 ± 10 μM, respectively). K2P2.1(TREK-1) and K2P4.1(TRAAK) data are from Figure 1C. Inset compares responses at 35 μM BL-1249: *** indicates p < 0.001 for a one-way ANOVA test; ns indicates no significant difference. Error bars are SEM.

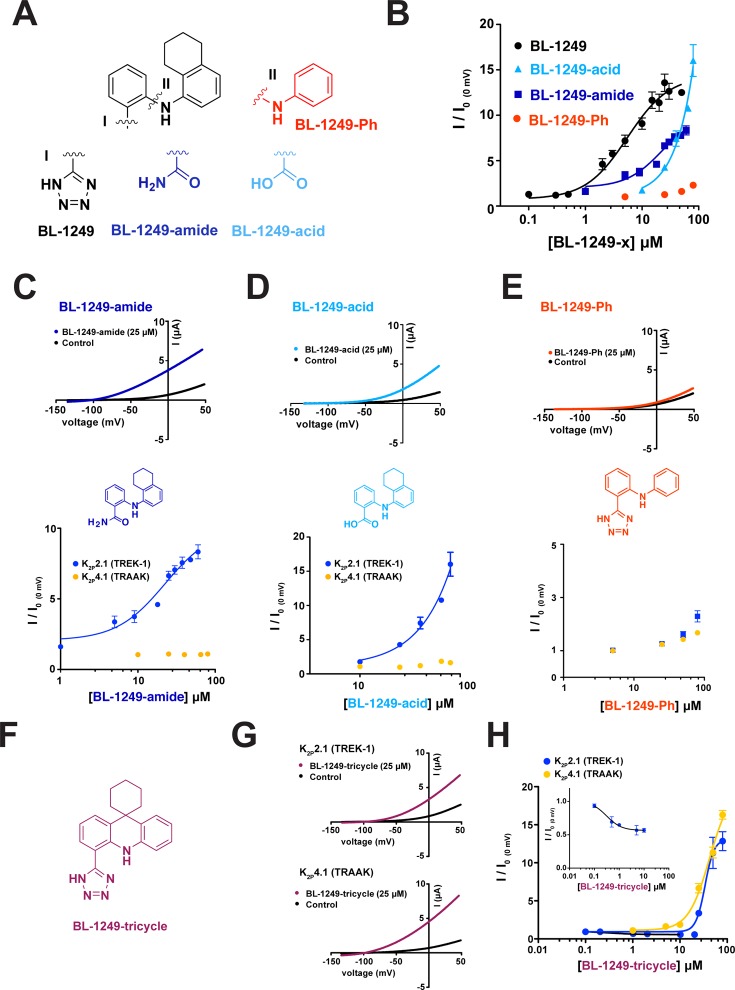

	Figure 6. Structure–activity relationships of BL-1249 analogues. (A) Chemical structures of BL-1249 and analogues. “I” and “II” indicate the substitution sites. (B) Dose–response of K2P2.1(TREK-1) for BL-1249 (black) (from Figure 1C), BL-1249-amide (blue), BL-1249-acid (light blue), and BL-1249-Ph (red) (EC50= 5.5 ± 1.2 μM, 22 ± 8 μM, 44 ± 10 μM, and >100 μM, respectively). K2P2.1(TREK-1) and K2P4.1(TRAAK) data are from Figure 1C. (C–E) Exemplar current traces for K2P2.1(TREK-1) with 25 μM BL-1249-amide (blue), BL-1249-acid (light blue), and BL-1249-Ph (red), respectively (top), chemical structures of BL-1249 analogues (middle), and dose response of K2P2.1(TREK-1) (blue) and K2P4.1(TRAAK) (light orange) (bottom). (F) Chemical structure of BL-1249-tricycle. (G) Exemplar current traces for K2P2.1(TREK-1) and K2P4.1(TRAAK) with 25 μM BL-1249-tricycle (purple). (H) Dose–response of K2P2.1(TREK-1) (blue) and K2P4.1(TRAAK) (light orange) for BL-1249-tricycle (EC50= 34 ± 6 μM and 42 ± 9 μM, respectively). Error bars are SEM.
