Mechanical stretch scales centriole number to apical area via Piezo1 in multiciliated cells.
???displayArticle.abstract???
How cells count and regulate organelle number is a fundamental question in cell biology. For example, most cells restrict centrioles to two in number and assemble one cilium; however, multiciliated cells (MCCs) synthesize hundreds of centrioles to assemble multiple cilia. Aberration in centriole/cilia number impairs MCC function and can lead to pathological outcomes. Yet how MCCs control centriole number remains unknown. Using Xenopus, we demonstrate that centriole number scales with apical area over a remarkable 40-fold change in size. We find that tensile forces that shape the apical area also trigger centriole amplification based on both cell stretching experiments and disruption of embryonic elongation. Unexpectedly, Piezo1, a mechanosensitive ion channel, localizes near each centriole suggesting a potential role in centriole amplification. Indeed, depletion of Piezo1 affects centriole amplification and disrupts its correlation with the apical area in a tension-dependent manner. Thus, mechanical forces calibrate cilia/centriole number to the MCC apical area via Piezo1. Our results provide new perspectives to study organelle number control essential for optimal cell function.
???displayArticle.pubmedLink??? 34184636
???displayArticle.pmcLink??? PMC8270640
???displayArticle.link??? Elife
???displayArticle.grants??? [+]
1K99 HL133606 and 5R00HL133606 NHLBI NIH HHS , R01HD102186 NICHD NIH HHS , T32GM007205 Yale MSTP NIH, T32GM007223 Yale Predoctoral Program in cellular and Molecular Biology, T32AR060710 NIH HHS , R01GM089970 NIGMS NIH HHS , K99 HL133606 NHLBI NIH HHS , R00 HL133606 NHLBI NIH HHS , T32 GM007223 NIGMS NIH HHS , T32 GM007205 NIGMS NIH HHS , 1K99 HL133606 and 5R00HL133606 NIH HHS , T32 AR060710 NIAMS NIH HHS , R01 HD102186 NICHD NIH HHS , T32GM007223 Yale University, T32GM007205 NIH HHS , R01 GM089970 NIGMS NIH HHS , P30 DK034989 NIDDK NIH HHS , UL1 TR001863 NCATS NIH HHS
Genes referenced: cby1 cep152 cfap53 fn1 mcc mcidas piezo1
???attribute.lit??? ???displayArticles.show???
|
|
|
|
|
|
|
|
|
|
Figure 1. Centriole number scales with apical area in Xenopus MCCs.(a) Schematic representing the current understanding of how MCCs differentiate and develop (Steps 0–4). Xenopus embryonic development is closely linked (dashed arrows) to MCC development. (b) MCCs captured in different stages of development (Steps 2–4) and labeled with chibby-GFP (centrioles). Dotted line represents the cell boundary. (c) Regression plot showing the positive correlation between apical area and number of centrioles at the apical surface in developing (green, Step 2, 3) and mature MCCs (blue, Step 4). (d) One-cell stage and stage 28 embryos of Xenopus tropicalis and Xenopus laevis. Images are to scale. Mature (Step 4) epidermal MCCs marked with chibby-GFP (centrioles) and phalloidin (F-actin) of (e) X. tropicalis and (f) X. laevis embryos at stage 28. Quantitation of (g) apical area and (h) centriole number in MCCs of X. tropicalis and X. laevis. The statistical comparison between the treatments is done using an unpaired t test. (i) Regression plot showing the positive correlation between apical area and centriole number across species in mature MCCs. (j) Regression plot showing the scaling relationship exists over a 40-fold change in apical area among different treatments. R2 is the correlation coefficient. * indicates statistical significance at p < 0.05. n = number of cells from 15 to 25 embryos. The data is uploaded as source data 1. Figure 1—source data 1. Source data related to Figure 1 .Figure 1—figure supplement 1. Relation between centriole number and apical area in goblet cells converted to MCCs in Xenopus laevis.(a) MCCs marked with centrin-GFP (centrioles, green), and phalloidin (F-actin, magenta) in Xenopus laevis. (b) Regression plot showing the relation between apical area and centriole number in MCCs induced by overexpressing mcidas in X. laevis embryos and (c) comparison to control X. laevis and X. tropicalis embryos. n = number of cells collected from five embryos. The data is uploaded as source data 1. |
|
Figure 1—figure supplement 2. Increasing apical area leads to an increase in centriole number.(a) Mature (Step 4) epidermal MCCs marked with chibby-GFP (centrioles, green) and phalloidin (F-actin, magenta) in control and ccdc11 morphant embryos at Stage 28. Quantitation of (b) apical area and (c) centriole number in MCCs of control and ccdc11 morphant embryos. (d) Regression plot showing the positive correlation between apical area and centriole number. (e) Control and epidermal MCC fused with a neighboring cell marked with chibby (centrioles, green) and phalloidin (F-actin, magenta). Dashed circles indicate nuclei (Hoescht). Quantitation of (f) apical area and (g) centriole number in MCCs of control and fused MCCs. (h) Regression plot showing the positive correlation between apical area and centriole number. * indicates statistical significance at p < 0.05. The statistical comparison between the treatments (b, c, f, g) is done using an unpaired t test. R2 is the correlation coefficient. n = number of cells collected from 6 to 20 embryos. The data is uploaded as source data 1. |
|
Figure 2. Perturbation of centriole amplification affects apical area contextually.(a) Mature (Step 4) epidermal MCCs marked with chibby-GFP (centrioles, green), and phalloidin (F-actin, magenta) in control and Cep152 overexpressed (OE) embryos. Quantitation of (b) apical area and (c) centriole number in MCCs of control and CEP 152 OE embryos at stage 28. (d) Regression plot showing the positive correlation between apical area and centriole number. (e) Experimental design to block centriole amplification in MCCs using Centrinone in animal caps. We dissected the animal caps at stage 8–9 and tethered them to slides using fibronectin. At stage 14 (based on unmanipulated sibling embryos), we exposed the caps to Centrinone until their unmanipulated sibling embryos reached stage 25–26. (F) Epidermal MCCs marked with chibby-GFP (centrioles, green), and phalloidin (F-actin, magenta) in control and Centrinone-treated animal caps. Quantitation of (g) apical area and (h) centriole number in MCCs of control and Centrinone-treated animal caps. (i) Regression plot showing the loss of correlation between apical area and centriole number in Centrinone-treated MCCs. * indicates statistical significance at p < 0.05. The statistical comparison between the treatments (b, c, g, h) is done using an unpaired t test. R2 is the correlation coefficient. n = number of cells collected from 10 to 15 embryos. The data is uploaded as source data 2. Figure 2—source data 1. Source data related to Figure 2. |
|
Figure 3. MCCs synthesize about half the total number of centrioles during intercalation.(a–c) Centrioles (chibby-GFP, green) and F-actin (phalloidin, magenta) in intercalating MCCs (Step 1). Dotted while lines show the border of the intercalating MCCs. (d) The same MCC is segmented using IMARIS to show individual centrioles in grey and F-actin in magenta. MCCs generate half of the total number of centrioles just prior to intercalation in (e) X. tropicalis and (f) X. laevis. * indicates statistical significance at p < 0.05. The statistical comparison between the treatments is done using an unpaired t test. n = number of cells from 10 to 15 embryos/species. The data is uploaded as source data 3. Figure 3—source data 1. Source data related to Figure 3. |
|
Figure 4. Mechanical stretch triggers centriole amplification in MCCs.(a) Schematic showing the effect of cell autonomous pushing (blue) vs. cell non-autonomous pulling forces (red) on cell shape and the thinness ratio (TR). (b) A single MCC (marked by membrane-RFP) undergoing apical expansion and in the process changing the cell shape from circular (TR=0.93) to more polygonal (TR=0.78). (c) A regression plot showing the negative correlation between the TR and the apical area. Magenta: 100–150 μm2, Green: 151–250 μm2, Blue: 251–350 μm2, Red: 351–600 μm2. n = 122 cells collected from 20 to 25 embryos (d) Binning the apical area shows that the increase in apical area leads to a significant reduction in the TR. MCCs marked with chibby-GFP (centrioles, green), and phalloidin (F-actin, magenta) in (e) control embryos, (f) untethered animal caps, (g) tethered animal caps, and (h) mechanically stretched animal caps. The statistical comparison between the treatments is done one-way ANOVA test followed by Tukey’s multiple comparisons test. Quantitation of (i) apical area and (j) centriole number in MCCs of animal caps subjected to different mechanical stimuli. Dashed line indicates the median value of controls. * indicates statistical significance at p < 0. 05. The statistical comparison between the treatments is done using the Brown-Forsythe and Welch ANOVA test followed by the Dunnett's T3 multiple comparisons test. n = number of cells. Data for untethered and tethered caps was collected from 10 to 12 animal caps. Data for stretched animal caps was collected from six to nine animal caps. (k) Regression plot demonstrates the scaling relation between the apical area and centriole number across different treatments. The data is uploaded as source data 4. Figure 4—source data 1. Source data related to Figure 4.Figure 4—figure supplement 1. Depletion of β-catenin affects apical area and centriole number in MCCs Stage 28 embryos of (a) controls and (c) β-catenin morphants.Images are to scale. Mature epidermal MCCs marked with chibby-GFP (centrioles, green), and phalloidin (F-actin, magenta) in (b) control and (d) β-catenin morphant embryos at stage 28. Quantitation of (e) apical area of MCCs, (f) apical area of non-MCCs, and (g) centriole number in control and β-catenin morphant embryos at stage 28. (h) Regression plot showing the positive correlation between apical area and centriole number. (i) TR in the β-catenin morphants is significantly higher than controls, (j) A regression plot showing the negative correlation between the TR and apical area between controls and β-catenin morphants. * indicates statistical significance at p < 0.05. The statistical comparison between the treatments (e, g, i) is done using an unpaired t test. The statistical comparison between the treatments in (f) is done using Mann-Whitney test. n = number of cells collected from 10 to 15 embryos. The data is uploaded as source data 4. |
|
Figure 4—figure supplement 2. Manipulation of animal caps by cell adhesion and mechanical stretcher.(a, b) Untethered (grown on agarose) and (c, d) tethered animal caps (grown on fibronectin slides) labeled with phalloidin (F-actin, magenta, b, d) at stage 28. (e) Mechanical stretcher (top view, left and side view, right). (f) Animal caps were stretched in a stepwise fashion with 1 min of stretch and 10 min of rest. The data is uploaded as source data 4. |
|
Figure 4âfigure supplement 3. Apical area of non-MCCs in untethered/tethered animal caps.Quantitation of apical area in non-MCCs of control embryos (blue) and animal caps that are untethered (magenta) or tethered (green). * indicates statistical significance at p < 0.05. The statistical comparison between the treatments is done using the Brown-Forsythe and Welch ANOVA test followed by Dunnett's T3 multiple comparisons test. n = number of cells collected from 10 to 12 animal caps. The data is uploaded as source data 4. |
|

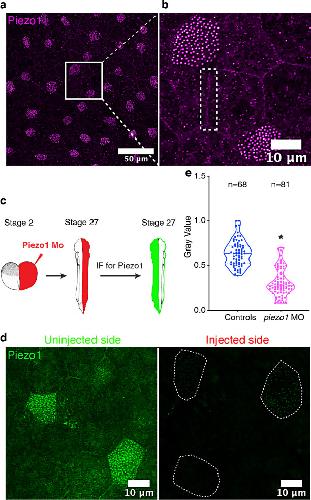

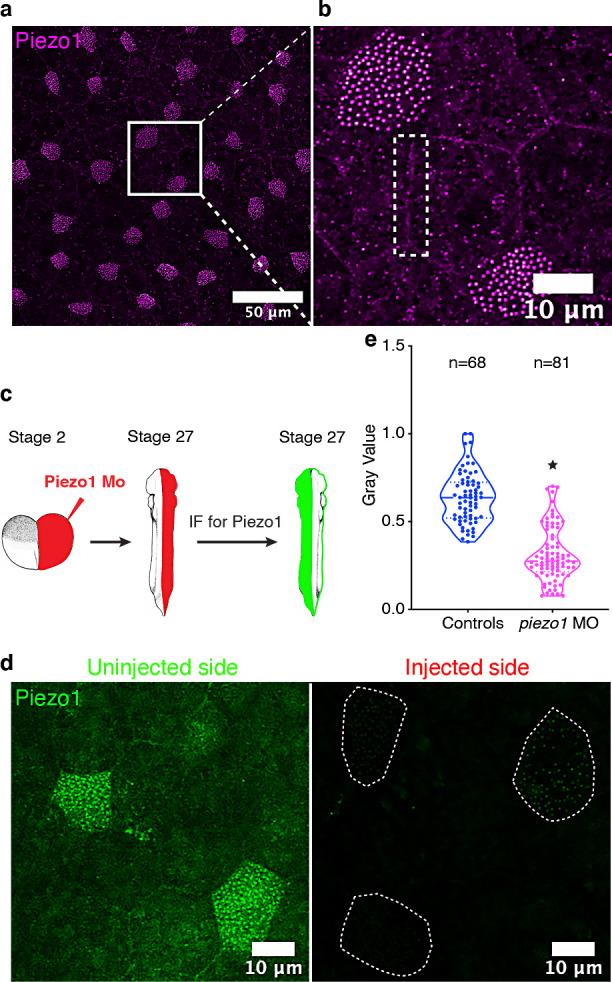

Figure 5. Piezo1 fine tunes centriole amplification and the scaling relation with apical area in the embryos.(a) Mature epidermal MCCs marked with anti-Piezo1 antibody (magenta) and chibby-GFP (centrioles, green) in X. tropicalis embryos. XZ axis shows that Piezo1 localizes at the same plane as centrioles. Quantitation of (b) centriole number and (c) apical area in MCCs across different treatments that affect Piezo1 levels (MO or CRISPR) or function (GSMTx4). Dashed lines indicate the median values of controls. * indicates statistical significance at p < 0.05. The statistical comparison between the treatments is done using the Brown-Forsythe and Welch ANOVA test followed by Dunnett's T3 multiple comparisons test. n = number of cells collected from 12 to 20 embryos. MCCs marked with chibby-GFP (centrioles), and phalloidin (F-actin) in (d) Standard control MO, (e) piezo1 MO, (f) piezo1 CRISPR, and (g) GSMTx4. Regression plot demonstrating the positive correlation between apical area and centriole number in mature MCCs of controls (blue) and (h) standard control MO (green) compared to loss of correlation in (i) piezo1 MO (magenta), (j) piezo1 CRISPR (red), and (k) GSMTx4 (orange). The data is uploaded as source data 5. Figure 5—source data 1. Source data related to Figure 5.Figure 5—figure supplement 1. Piezo1 localization at the cell junctions and the bases of cilia in the MCCs.(a) Mature epidermal MCCs stained using anti-Piezo1 antibody. Box region (b) shows MCCs at increased magnification. Dashed box in (b) indicates the localization of Piezo1 at cell junction. (c) Experimental design to test the specificity of Piezo1 antibody using a MO based knockdown approach at two-cell stage. (d) Mature epidermal MCCs marked with Piezo1 antibody in a single embryo injected with piezo1 MO in one cell at two-cell stage as shown in (c). (e) Quantitation of Piezo1 signal at the centrioles between uninjected (control) and morpholino oligo injected sides. * indicates statistical significance at p < 0.05. The statistical comparison between the treatments is done using an unpaired t test. n = number of cells collected from 10 to 15 embryos. The data is uploaded as source data 5. |
|
Figure 6. Piezo1 dysfunction leads to reduced number of centrioles in MCCs in a tension-dependent manner.MCCs marked with chibby-GFP (centrioles, green), and phalloidin (F-actin, magenta) in controls and piezo1 morphants in (a) untethered animal caps and (b) tethered animal caps. Quantitation of (c) number of centrioles at the apical surface and (d) apical area in untethered animal caps and tethered animal caps. * indicates statistical significance at p < 0.05. The statistical comparison between the treatments is done using a one-way ANOVA followed by Tukey’s multiple comparison test. n = number of cells collected from six to eight animal caps obtained from two independent experiments. (e) Regression plot showing a positive scaling relationship between apical area and the number of centrioles at the apical surface across all the treatments performed in this paper. When Piezo1 function is affected (black: piezo1 MO, piezo1 CRISPR, and GSMTx-4), the scaling relationship is abolished. n = number of cells. (f) Model illustrating that pushing forces dominate in the initial phase of apical expansion (apical area increases from 0 to ~150 μm2) and the centriole number reaches ~100. In the later phase of apical expansion, pulling forces dominate which changes the cell shape from round to polygonal. The pulling force is sensed by Piezo1 to regulate the amplification of the next ~50 centrioles. The data is uploaded as source data 6. Figure 6—source data 1. Source data related to Figure 6. |
References [+] :
Antoniades,
Making the connection: ciliary adhesion complexes anchor basal bodies to the actin cytoskeleton.
2014, Pubmed
Antoniades, Making the connection: ciliary adhesion complexes anchor basal bodies to the actin cytoskeleton. 2014, Pubmed
Bagriantsev, Piezo proteins: regulators of mechanosensation and other cellular processes. 2014, Pubmed
Bhattacharya, CRISPR/Cas9: An inexpensive, efficient loss of function tool to screen human disease genes in Xenopus. 2015, Pubmed , Xenbase
Boon, MCIDAS mutations result in a mucociliary clearance disorder with reduced generation of multiple motile cilia. 2014, Pubmed , Xenbase
Burke, Chibby promotes ciliary vesicle formation and basal body docking during airway cell differentiation. 2014, Pubmed
Chen, A Feedforward Mechanism Mediated by Mechanosensitive Ion Channel PIEZO1 and Tissue Mechanics Promotes Glioma Aggression. 2018, Pubmed
Collins, Centriole Number and the Accumulation of Microtubules Modulate the Timing of Apical Insertion during Radial Intercalation. 2020, Pubmed , Xenbase
Deblandre, A two-step mechanism generates the spacing pattern of the ciliated cells in the skin of Xenopus embryos. 1999, Pubmed , Xenbase
del Viso, Generating diploid embryos from Xenopus tropicalis. 2012, Pubmed , Xenbase
De Robertis, The establishment of Spemann's organizer and patterning of the vertebrate embryo. 2000, Pubmed , Xenbase
Gnanasambandam, GsMTx4: Mechanism of Inhibiting Mechanosensitive Ion Channels. 2017, Pubmed
Guillot, Mechanics of epithelial tissue homeostasis and morphogenesis. 2013, Pubmed
Harland, Formation and function of Spemann's organizer. 1997, Pubmed
Heasman, Overexpression of cadherins and underexpression of beta-catenin inhibit dorsal mesoderm induction in early Xenopus embryos. 1994, Pubmed , Xenbase
Heisenberg, Forces in tissue morphogenesis and patterning. 2013, Pubmed
Hikasa, Wnt signaling in vertebrate axis specification. 2013, Pubmed , Xenbase
Keller, Convergent extension in the amphibian, Xenopus laevis. 2020, Pubmed , Xenbase
Khokha, Techniques and probes for the study of Xenopus tropicalis development. 2002, Pubmed , Xenbase
Khokha, Depletion of three BMP antagonists from Spemann's organizer leads to a catastrophic loss of dorsal structures. 2005, Pubmed , Xenbase
Klos Dehring, Deuterosome-mediated centriole biogenesis. 2013, Pubmed , Xenbase
Kulkarni, WDR5 Stabilizes Actin Architecture to Promote Multiciliated Cell Formation. 2018, Pubmed , Xenbase
Levy, Mechanisms of intracellular scaling. 2012, Pubmed , Xenbase
Luo, Molecular mechanisms of cellular mechanosensing. 2013, Pubmed
Mao, Tug of war--the influence of opposing physical forces on epithelial cell morphology. 2015, Pubmed
Marshall, Stability and robustness of an organelle number control system: modeling and measuring homeostatic regulation of centriole abundance. 2007, Pubmed
Marshall, Cell Geometry: How Cells Count and Measure Size. 2016, Pubmed
Martino, Cellular Mechanotransduction: From Tension to Function. 2018, Pubmed
Massou, Cell stretching is amplified by active actin remodelling to deform and recruit proteins in mechanosensitive structures. 2020, Pubmed
Nanjundappa, Regulation of cilia abundance in multiciliated cells. 2019, Pubmed
Nigg, Once and only once: mechanisms of centriole duplication and their deregulation in disease. 2018, Pubmed
Rafelski, Building the cell: design principles of cellular architecture. 2008, Pubmed
Sedzinski, Emergence of an Apical Epithelial Cell Surface In Vivo. 2016, Pubmed , Xenbase
Spassky, The development and functions of multiciliated epithelia. 2017, Pubmed
Stepien, Using a continuum model to decipher the mechanics of embryonic tissue spreading from time-lapse image sequences: An approximate Bayesian computation approach. 2019, Pubmed , Xenbase
Stubbs, Radial intercalation of ciliated cells during Xenopus skin development. 2006, Pubmed , Xenbase
Stubbs, Multicilin promotes centriole assembly and ciliogenesis during multiciliate cell differentiation. 2012, Pubmed , Xenbase
Walentek, What we can learn from a tadpole about ciliopathies and airway diseases: Using systems biology in Xenopus to study cilia and mucociliary epithelia. 2017, Pubmed , Xenbase
Wallmeier, Mutations in CCNO result in congenital mucociliary clearance disorder with reduced generation of multiple motile cilia. 2014, Pubmed , Xenbase
Wang, Review of Cellular Mechanotransduction. 2017, Pubmed
Wang, The mechanosensitive Piezo1 channel: structural features and molecular bases underlying its ion permeation and mechanotransduction. 2018, Pubmed
Werner, Radial intercalation is regulated by the Par complex and the microtubule-stabilizing protein CLAMP/Spef1. 2014, Pubmed , Xenbase
Werner, Using Xenopus skin to study cilia development and function. 2013, Pubmed , Xenbase
Wong, Cell biology. Reversible centriole depletion with an inhibitor of Polo-like kinase 4. 2015, Pubmed
Wu, Touch, Tension, and Transduction - The Function and Regulation of Piezo Ion Channels. 2017, Pubmed
Zhang, Centriole biogenesis and function in multiciliated cells. 2015, Pubmed , Xenbase
Zhao, The Cep63 paralogue Deup1 enables massive de novo centriole biogenesis for vertebrate multiciliogenesis. 2013, Pubmed , Xenbase
