Pavinato L , Nematian-Ardestani E , Zonta A , De Rubeis S , Buxbaum J , Mancini C , Bruselles A , Tartaglia M , Pessia M , Tucker SJ , D'Adamo MC , Brusco A .

D15D18000410001 Ministero dell'Istruzione, dell'Università e della Ricerca, MH111661 NIMH NIH HHS, I20LU08 Research Innovation and Development Trust, University of Malta, BooKind E20LG42 Research Innovation and Development Trust, University of Malta, 31M452 United Arab Emirates University, 31M468 United Arab Emirates University, 12M020 United Arab Emirates University

                intellectual disability
                migraine

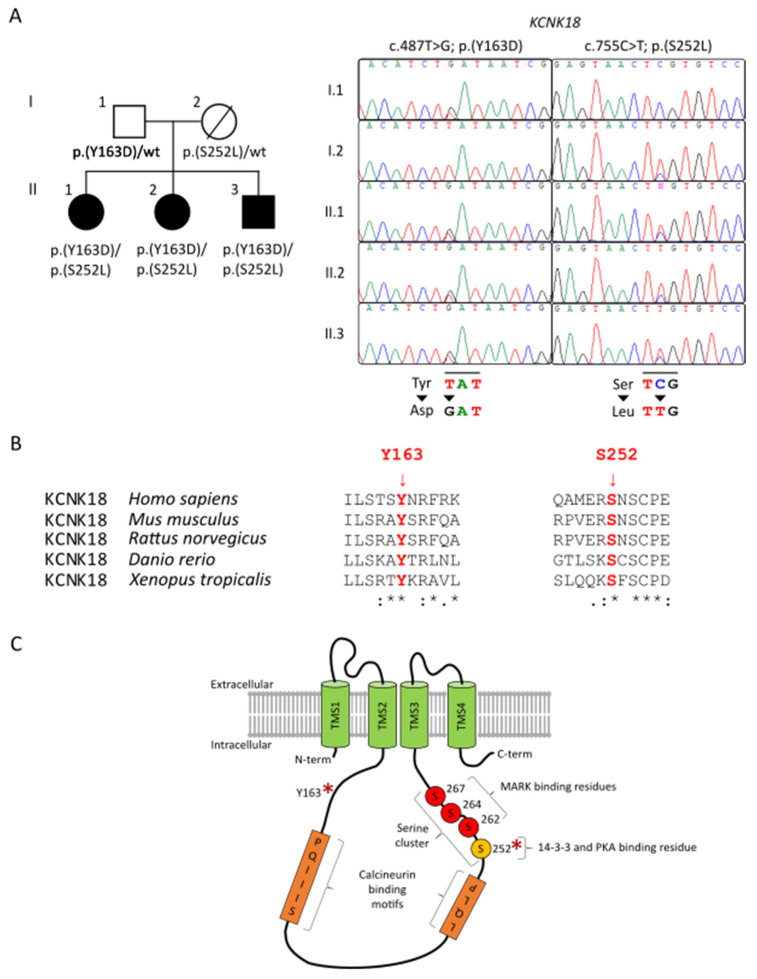

	Figure 1 Pedigree, conservation, and graphical representation of the KCNK18 variants. (A). Pedigree of the family and Sanger sequencing chromatograms documenting co-segregation between compound heterozygosity for the two missense changes in KCNK18 and clinical traits transmitted in the family. (B). Multiple alignments of the amino acid stretches flanking the affected residues in TRESK orthologs showing conservation of both mutated residues (in red). Residues are referred to human KCNK18, NM_181840.1. (C). Schematic topology of the human K2P TRESK channel, showing location of Tyr163 (Y163) and Ser252 (S252) (red asterisks). Human TRESK is composed of 384 amino acid residues and shows the most characteristic features of K2P channels, including four transmembrane helices, two pore-forming domains, and intracellular N- and C-termini. A peculiar structural feature of TRESK (compared to other K2P channels) is the long intracellular loop between the second and third transmembrane segments (TMS), and the relatively short C-terminal tail [3]. In the image, representative domains are shown: PQIIIS and LQLP are calcineurin-binding motifs [5,17], while the serine cluster and Ser252 are indicated by the letter S and are, respectively, MARK kinases and 14-3-3 and PKA binding motifs.

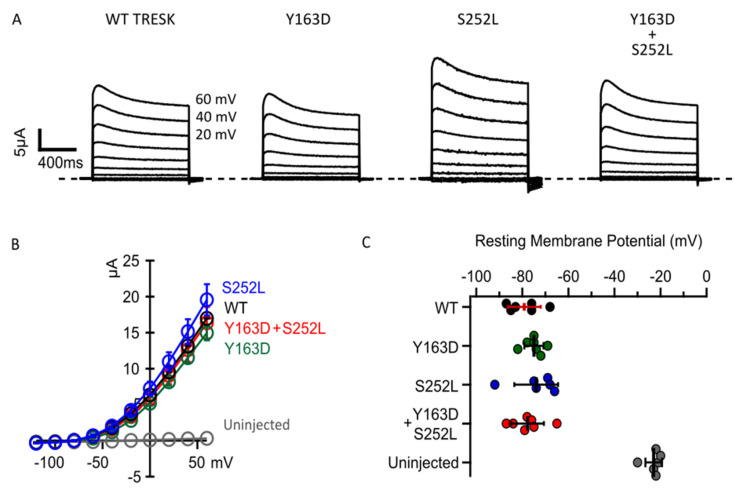

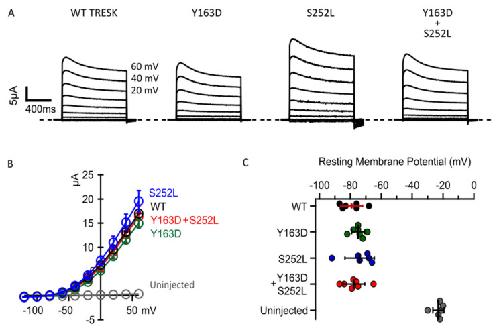

	Figure 2 p.Tyr163Asp and p.Ser252Leu do not significantly affect the basal current and ability of TRESK channels to control the cell’s resting potential. (A). Representative families of current traces for the indicated channel types. Cell membrane potential was held at −80mV. Each family of currents was evoked by voltage steps from −120 mV to 60 mV, with 20 mV increments. The recordings were performed 48 h after the injection of 1 ng of mRNA for each channel type. (B). Average IV relationships calculated from experiments as in A for the labelled channel types (color coded). The data points are mean ± standard error (0.001; n = 12). (C). Resting membrane potentials from individual oocytes un-injected (grey dots), injected with 1 ng of WT (black dots) or Y163D (green dots) or S252L (blue dots) or 0.5 ng of each Y163D and S252L (red dots) mRNA and recorded 48 h after injection. Note that the expression of all channel types similarly shifts the resting potential toward K+ reversal potential. The dots in C represent single cell recordings. The data are mean ± standard deviation.
	Figure 3. KCNK18 p.Tyr163Asp and p.Ser252Leu impair the ionomycin-induced activation of TRESK channels. Representative data points showing ionomycin activation of TRESK WT, Y163D, S252L and Y163D + S252L currents as well as endogenous currents from un-injected oocytes. (A). Currents were evoked by 300 ms long voltage steps from 0 mV to −100 mV from oocytes injected with 1 ng of mRNA of the corresponding and indicated homomeric channel type and 0.5 ng for each subunit for the heteromeric channel Y163D/S252L. The sampled data represent the average of 50 ms long period of the steady-state currents recorded at −100 mV. Ionomycin activates the WT channels but has little effect on the oocytes that express the mutant channels or those that are uninjected. Note that the current decay upon reapplication of a solution containing 2 mM K+ in the recording chamber is due to the reduced K+ concentration rather than ionomycin washout.
	Figure 3. KCNK18 p.Tyr163Asp and p.Ser252Leu impair the ionomycin-induced activation of TRESK channels. Representative data points showing ionomycin activation of TRESK WT, Y163D, S252L and Y163D + S252L currents as well as endogenous currents from un-injected oocytes. (B). Bar graph showing the mean of ionomycin activated currents (*** p < 0.001). All the groups were statistically significant compared to the uninjected group (WT vs. uninjected p < 0.001; Y163D vs. uninjected p = 0.02; S252L and Y163D + S252L vs. uninjected p < 0.01; n = 12). (C). Each point represents the steady state ionomycin activated current divided by the steady-state basal current (IIono/IBasal) recorded in the presence of 80 mM extracellular K+.

Andres-Enguix, Functional analysis of missense variants in the TRESK (KCNK18) K channel. 2012, Pubmed

Andres-Enguix, Functional analysis of missense variants in the TRESK (KCNK18) K channel. 2012, Pubmed
Bauer, Mutations in KCNK4 that Affect Gating Cause a Recognizable Neurodevelopmental Syndrome. 2018, Pubmed
Bautista, Pungent agents from Szechuan peppers excite sensory neurons by inhibiting two-pore potassium channels. 2008, Pubmed
Cadaveira-Mosquera, Expression of K2P channels in sensory and motor neurons of the autonomic nervous system. 2012, Pubmed
Cingolani, A program for annotating and predicting the effects of single nucleotide polymorphisms, SnpEff: SNPs in the genome of Drosophila melanogaster strain w1118; iso-2; iso-3. 2012, Pubmed
Cornell, 14-3-3 Proteins in Brain Development: Neurogenesis, Neuronal Migration and Neuromorphogenesis. 2017, Pubmed
Czirják, Targeting of calcineurin to an NFAT-like docking site is required for the calcium-dependent activation of the background K+ channel, TRESK. 2006, Pubmed , Xenbase
Czirják, TRESK background K(+) channel is inhibited by phosphorylation via two distinct pathways. 2010, Pubmed , Xenbase
Czirják, The two-pore domain K+ channel, TRESK, is activated by the cytoplasmic calcium signal through calcineurin. 2004, Pubmed , Xenbase
Czirják, Phosphorylation-dependent binding of 14-3-3 proteins controls TRESK regulation. 2008, Pubmed , Xenbase
Czirják, The LQLP calcineurin docking site is a major determinant of the calcium-dependent activation of human TRESK background K+ channel. 2014, Pubmed
D'Adamo, Ion Channels Involvement in Neurodevelopmental Disorders. 2020, Pubmed
D'Adamo, K(+) channelepsy: progress in the neurobiology of potassium channels and epilepsy. 2013, Pubmed
De Giorgio, The roles of motor activity and environmental enrichment in intellectual disability. 2017, Pubmed
De Rubeis, Synaptic, transcriptional and chromatin genes disrupted in autism. 2014, Pubmed
Enyedi, Properties, regulation, pharmacology, and functions of the K₂p channel, TRESK. 2015, Pubmed , Xenbase
Flex, Aberrant Function of the C-Terminal Tail of HIST1H1E Accelerates Cellular Senescence and Causes Premature Aging. 2019, Pubmed
Gada, Two-pore domain potassium channels: emerging targets for novel analgesic drugs: IUPHAR Review 26. 2019, Pubmed
Guella, De Novo Mutations in YWHAG Cause Early-Onset Epilepsy. 2017, Pubmed
Guglielmi, Update on the implication of potassium channels in autism: K(+) channelautism spectrum disorder. 2015, Pubmed
Han, Targeted Next-Generation Sequencing of Korean Patients With Developmental Delay and/or Intellectual Disability. 2018, Pubmed
Hasan, Lethal digenic mutations in the K+ channels Kir4.1 (KCNJ10) and SLACK (KCNT1) associated with severe-disabling seizures and neurodevelopmental delay. 2017, Pubmed , Xenbase
Imbrici, Altered functional properties of a missense variant in the TRESK K+ channel (KCNK18) associated with migraine and intellectual disability. 2020, Pubmed , Xenbase
Jagadeesh, M-CAP eliminates a majority of variants of uncertain significance in clinical exomes at high sensitivity. 2016, Pubmed
Kang, Lamotrigine inhibits TRESK regulated by G-protein coupled receptor agonists. 2008, Pubmed
Kang, TREK-2 (K2P10.1) and TRESK (K2P18.1) are major background K+ channels in dorsal root ganglion neurons. 2006, Pubmed
Kircher, A general framework for estimating the relative pathogenicity of human genetic variants. 2014, Pubmed
Kopanos, VarSome: the human genomic variant search engine. 2019, Pubmed
Lafrenière, A dominant-negative mutation in the TRESK potassium channel is linked to familial migraine with aura. 2010, Pubmed
Lengyel, Selective and state-dependent activation of TRESK (K2P 18.1) background potassium channel by cloxyquin. 2017, Pubmed , Xenbase
Li, InterVar: Clinical Interpretation of Genetic Variants by the 2015 ACMG-AMP Guidelines. 2017, Pubmed
Li, Fast and accurate short read alignment with Burrows-Wheeler transform. 2009, Pubmed
Liu, dbNSFP v3.0: A One-Stop Database of Functional Predictions and Annotations for Human Nonsynonymous and Splice-Site SNVs. 2016, Pubmed
Liu, Potent activation of the human tandem pore domain K channel TRESK with clinical concentrations of volatile anesthetics. 2004, Pubmed , Xenbase
Maher, Analysis of 3 common polymorphisms in the KCNK18 gene in an Australian Migraine case-control cohort. 2013, Pubmed
Pettingill, A causal role for TRESK loss of function in migraine mechanisms. 2019, Pubmed
Rahm, PKC-dependent activation of human K(2P) 18.1 K(+) channels. 2012, Pubmed , Xenbase
Rainero, KCNK18 (TRESK) genetic variants in Italian patients with migraine. 2014, Pubmed
Richards, Standards and guidelines for the interpretation of sequence variants: a joint consensus recommendation of the American College of Medical Genetics and Genomics and the Association for Molecular Pathology. 2015, Pubmed
Royal, Migraine-Associated TRESK Mutations Increase Neuronal Excitability through Alternative Translation Initiation and Inhibition of TREK. 2019, Pubmed , Xenbase
Sano, A novel two-pore domain K+ channel, TRESK, is localized in the spinal cord. 2003, Pubmed
Satterstrom, Large-Scale Exome Sequencing Study Implicates Both Developmental and Functional Changes in the Neurobiology of Autism. 2020, Pubmed
Schalock, The contemporary view of intellectual and developmental disabilities: Implications for psychologists. 2019, Pubmed
Sehgal, Pharmacoinformatics elucidation of potential drug targets against migraine to target ion channel protein KCNK18. 2014, Pubmed
Sicca, Autism with seizures and intellectual disability: possible causative role of gain-of-function of the inwardly-rectifying K+ channel Kir4.1. 2011, Pubmed
Sicca, Gain-of-function defects of astrocytic Kir4.1 channels in children with autism spectrum disorders and epilepsy. 2016, Pubmed , Xenbase
Sun, Association study between inwardly rectifying potassium channels 2.1 and 4.1 and autism spectrum disorders. 2018, Pubmed
Van der Auwera, From FastQ data to high confidence variant calls: the Genome Analysis Toolkit best practices pipeline. 2013, Pubmed
Yi, A calcineurin-mediated scaling mechanism that controls a K+-leak channel to regulate morphogen and growth factor transcription. 2021, Pubmed
Yoo, Regional expression of the anesthetic-activated potassium channel TRESK in the rat nervous system. 2009, Pubmed
Yoshida, Mechanism of release of Ca2+ from intracellular stores in response to ionomycin in oocytes of the frog Xenopus laevis. 1992, Pubmed , Xenbase
