Curr Biol
2022 Mar 14;325:1038-1048.e2. doi: 10.1016/j.cub.2022.01.012.
Show Gene links
Show Anatomy links
Bimodal modulation of short-term motor memory via dynamic sodium pumps in a vertebrate spinal cord.
Hachoumi L
,
Rensner R
,
Richmond C
,
Picton L
,
Zhang H
,
Sillar KT
.
???displayArticle.abstract???
Dynamic neuronal Na+/K+ pumps normally only respond to intense action potential firing owing to their low affinity for intracellular Na+. Recruitment of these Na+ pumps produces a post-activity ultraslow afterhyperpolarization (usAHP) up to ∼10 mV in amplitude and ∼60 s in duration, which influences neuronal properties and future network output. In spinal motor networks, the usAHP underlies short-term motor memory (STMM), reducing the intensity and duration of locomotor network output in a manner dependent on the interval between locomotor bouts. In contrast to tonically active Na+ pumps that help set and maintain the resting membrane potential, dynamic Na+ pumps are selectively antagonized by low concentrations of ouabain, which, we show, blocks both the usAHP and STMM. We examined whether dynamic Na+ pumps and STMM can be influenced by neuromodulators, focusing on 5-HT and nitric oxide. Bath-applied 5-HT alone had no significant effect on the usAHP or STMM. However, this is due to the simultaneous activation of two distinct 5-HT receptor subtypes (5-HT7 and 5-HT2a) that have opposing facilitatory and suppressive influences, respectively, on these two features of the locomotor system. Nitric oxide modulation exerts a potent inhibitory effect that can completely block the usAHP and erase STMM. Using selective blockers of 5-HT7 and 5-HT2a receptors and a nitric oxide scavenger, PTIO, we further provide evidence that the two modulators constitute an endogenous control system that determines how the spinal network self-regulates the intensity of locomotor output in light of recent past experience.

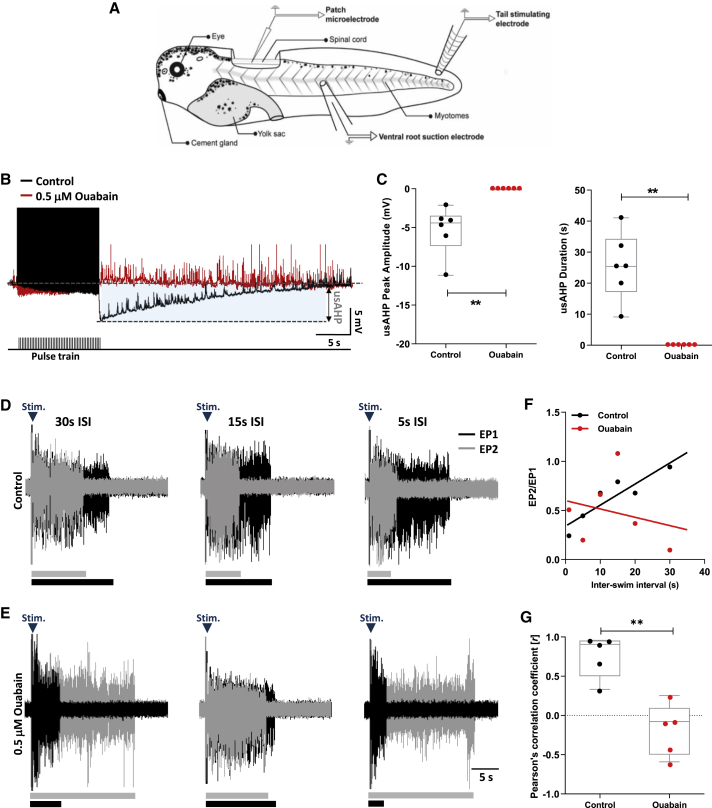

Figure 1. Na+ pump inhibition impairs the usAHP and STMM(A) Patch clamp and VR recording setup for stage 42 tadpole (∼7 mm long18).(B) usAHPs generated following depolarizing pulse train (black) were abolished by 0.5 μM ouabain (red).(C) Effects of ouabain on usAHP peak amplitude and duration.(D) Example VR traces of evoked episode pairs with inter-swim intervals (ISIs) of 30, 15, and 5 s; bars beneath raw data indicate swim episode duration. Reducing ISI progressively reduced episode 2 duration (EP2; gray) following episode 1 (EP1; black).(E) In ouabain, EP2 duration was not influenced by EP1 in an ISI-dependent manner.(F) Representative plot (different experiment to D and E) of EP2/EP1 duration ratio versus ISI showing ouabain weakens the relationship.(G) The strong positive relationship in control is diminished by ouabain.Pooled data presented as box plots show median with 25/75 percentile (box and line) and min-max (whiskers). ∗∗p < 0.01. See also Figure S1.

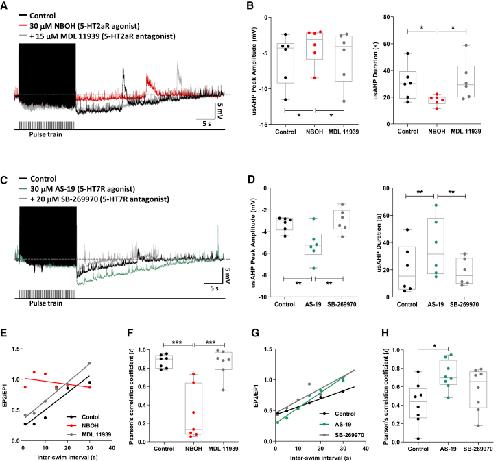

Figure 2. 5-HT2a and 5-HT7 receptors opposingly modulate the usAHP and STMM(A) The usAHP (black) is attenuated by 5-HT2a receptor agonist NBOH (red), an effect antagonized by MDL 11939 (gray).(B) Effects of 5-HT2a receptor modulation on usAHP peak amplitude and duration.(C) The usAHP is augmented by the 5-HT7 receptor agonist AS-19 (green), an effect antagonized by SB-269970 (gray).(D) Effects of 5-HT7 receptor modulation on usAHP peak amplitude and duration.(E) Representative STMM plot (raw data in Figures S3A–S3C, from different experiment) of EP2/EP1 duration ratio versus ISI showing that NBOH (red) weakened the positive relationship (black).(F) High r value in control is decreased by NBOH, an effect reversed by MDL 11939.(G) Representative STMM plot (raw data in Figures S3D–S3F, from different experiment) of EP2/EP1 duration ratio versus ISI showing that AS-19 (green) strengthened the positive relationship (black).(H) AS-19 increased the r value, an effect not reversed by SB-269970.Pooled data presented as box plots show median with 25/75 percentile (box and line) and min-max (whiskers). ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001. See also Figure S2 for applications of 5-HT alone.

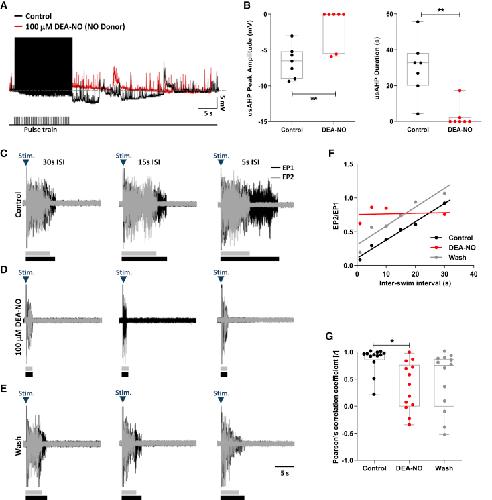

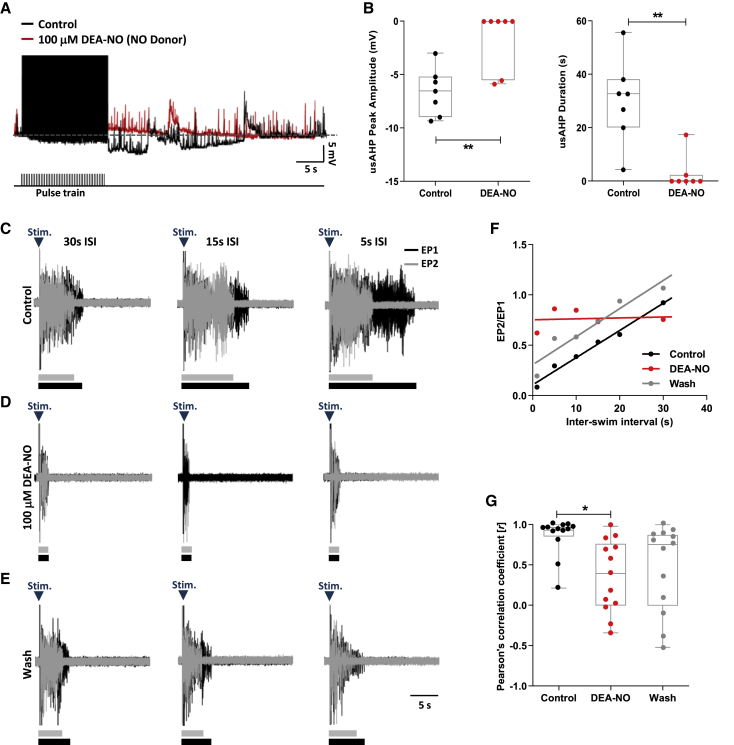

Figure 3. Nitrergic modulation of the usAHP and STMM(A) The usAHP (black) is attenuated by DEA-NO (red).(B) NO modulation of usAHP peak amplitude and duration.(C–E) Example VR traces demonstrating pairs of evoked episodes with ISI of 30, 15, and 5 s in control, DEA-NO, and wash, respectively.(F) Representative plot (different experiment to B) of EP2/EP1 duration ratio versus ISI showing DEA-NO (red) abolishing the positive relationship (black).(G) High r value in control is decreased by DEA-NO, but not reversed following drug washout.Pooled data presented as box plots show median with 25/75 percentile (box and line) and min-max (whiskers). ∗p < 0.05, ∗∗p < 0.01.

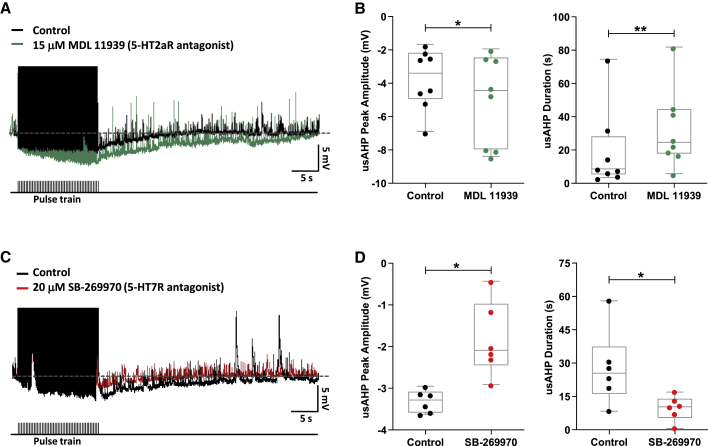

Figure 4. Endogenous modulation of the usAHP by 5-HT receptors(A) Application of 5-HT2a receptor antagonist MDL 11939 increased (green) the usAHP.(B) Effect of MDL 11939 on usAHP peak amplitude and duration.(C) The 5-HT7 receptor antagonist SB-269970 decreased (red) the usAHP.(D) Effect of SB-266970 on usAHP peak amplitude and duration.Pooled data presented as box plots show median with 25/75 percentile (box and line) and min-max (whiskers). ∗p < 0.05, ∗∗p < 0.01.

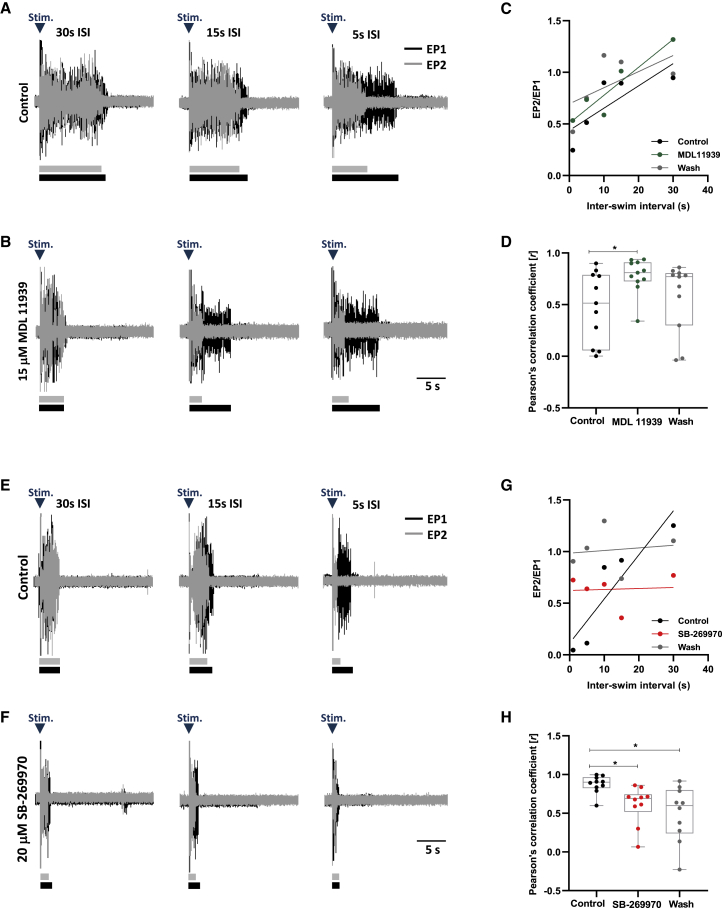

Figure 5. Endogenous modulation of STMM by 5-HT receptors(A and B) Example VR traces of swim episode pairs evoked at ISIs of 30, 15, and 5 s. In control, decreasing ISI progressively reduced swim EP2 duration (gray) relative to EP1 (black). 5-HT2a receptor antagonism with MDL 11939 further shortened EP2 duration relative to EP1 as the ISI decreased.(C) Representative plots (different experiments to A and B) of EP2/EP1 ratio versus ISI showing MDL 11939 strengthening the relationship.(D) The increase in r value by MDL 11939 was significant, but not reversible by washout.(E and F) Example VR traces showing that antagonizing 5-HT7 receptor with SB-269770 impaired the influence of EP1 on EP2 when compared with control, regardless of ISI.(G) Representative plots (different experiments to E and F) of EP2/EP1 ratio versus ISI showing SB-269770 weakening the relationship.(H) The decrease in r value in SB-269770 was significant, but not reversible by washout.Pooled data presented as box plots show median with 25/75 percentile (box and line) and min-max (whiskers). ∗p < 0.05.

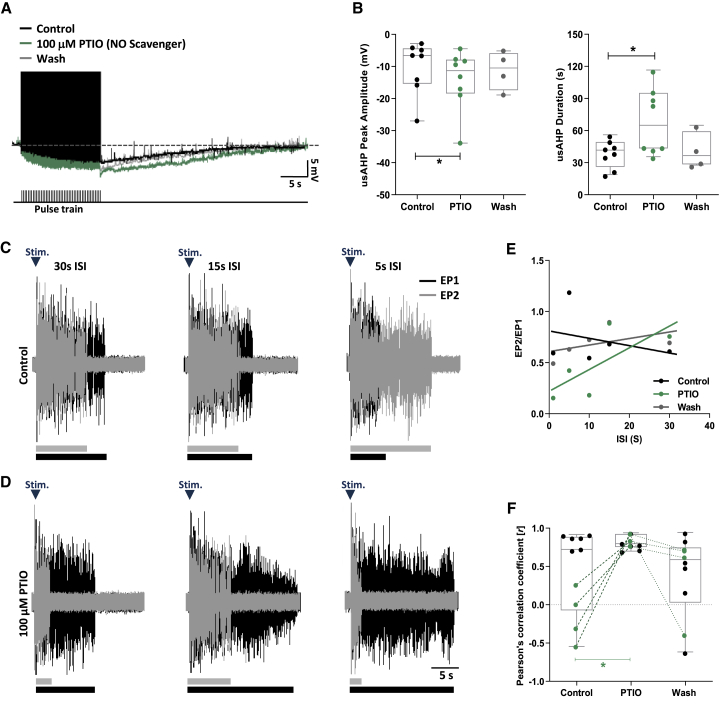

Figure 6. Endogenous modulation of STMM and usAHP by NO(A) The NO scavenger PTIO, in zero Ca2+/high Mg2+ saline, increases the usAHP (green), but not reversibly (gray).(B) Effects of PTIO on usAHP peak amplitude and duration.(C and D) Example VR traces showing pairs of evoked episodes at ISIs of 30, 15, and 5 s. In these preparations (4/10), with weak STMM in control, PTIO strengthened the influence of EP1 (black) duration on EP2 (gray).(E) Representative plot (different experiment to C and D) demonstrating PTIO (green) improved the relationship between swim episode duration and ISI when it was weak in control (black), an effect not reversible (gray).(F) PTIO increased the r value in 4/10 preparations (green) with weak relationship in control (r < 0.5; see Figure S4 for sample VR traces of STMM). In preparations with a strong relationship in control (r > 0.5; 6/10 preparations), PTIO did not affect the r value (black).Pooled data presented as box plots show median with 25/75 percentile (box and line) and min-max (whiskers). ∗p < 0.05.
