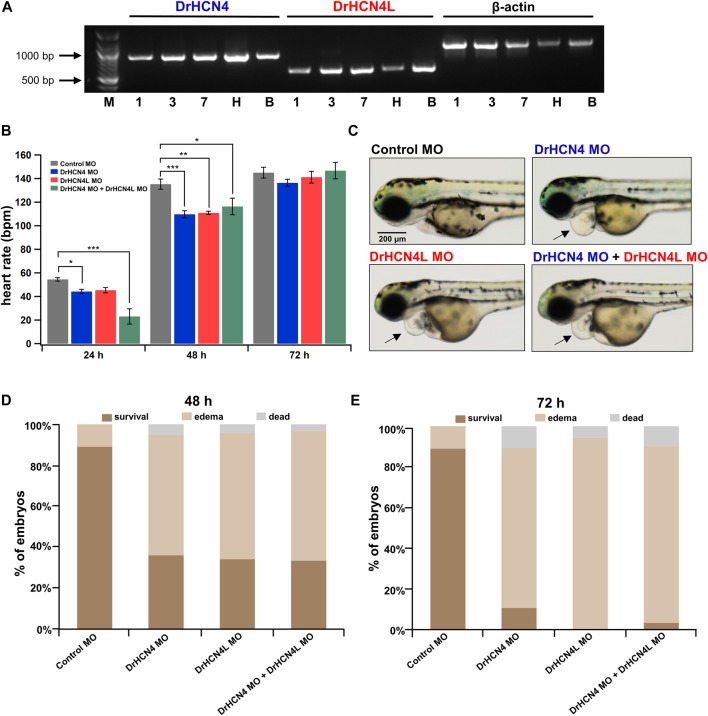

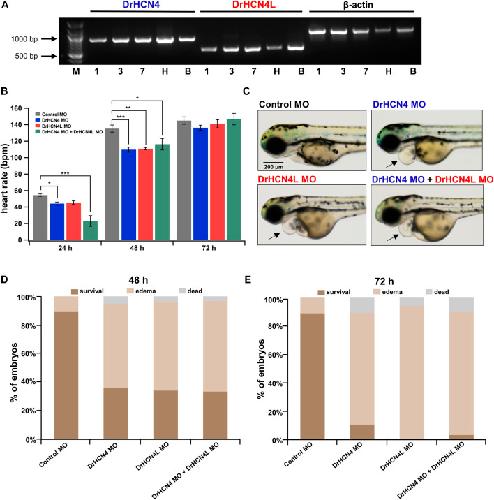

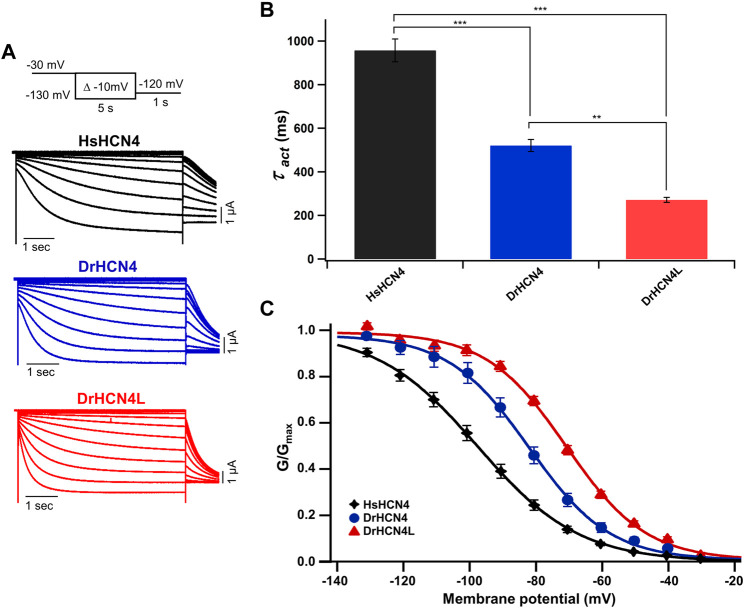

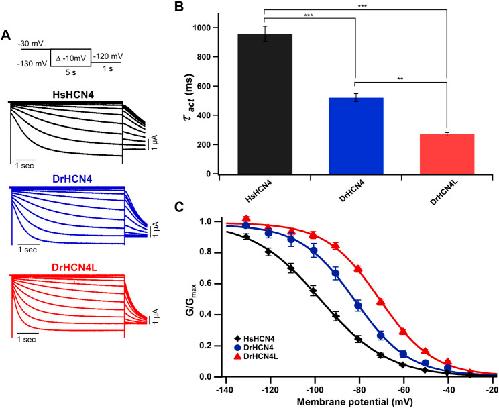

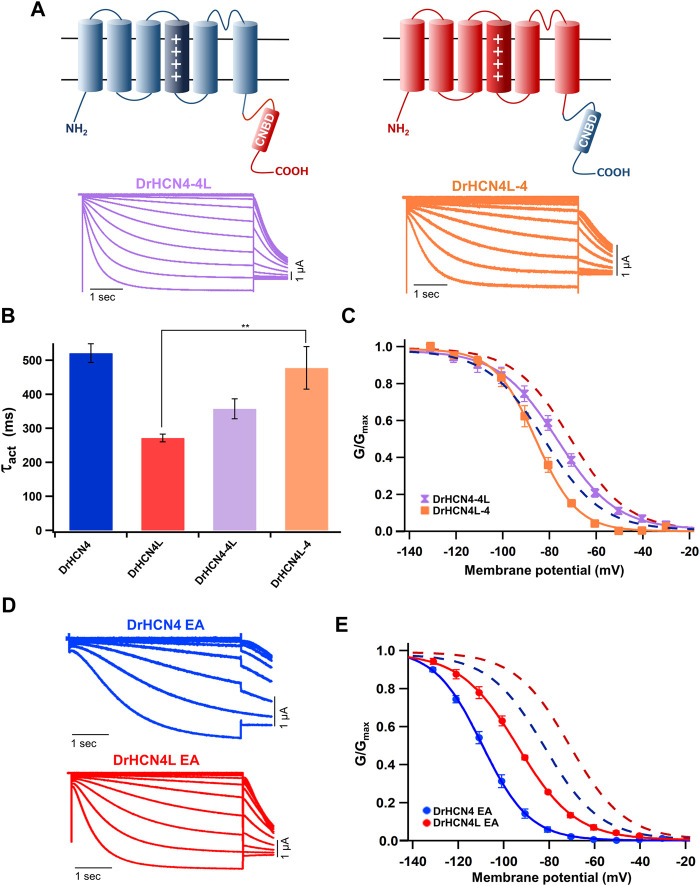

The HCN4 channel is essential for heart rate regulation in vertebrates by generating pacemaker potentials in the sinoatrial node. HCN4 channel abnormality may cause bradycardia and sick sinus syndrome, making it an important target for clinical research and drug discovery. The zebrafish is a popular animal model for cardiovascular research. They are potentially suitable for studying inherited heart diseases, including cardiac arrhythmia. However, it has not been determined how similar the ion channels that underlie cardiac automaticity are in zebrafish and humans. In the case of HCN4, humans have one gene, whereas zebrafish have two ortholog genes (DrHCN4 and DrHCN4L; 'Dr' referring to Danio rerio). However, it is not known whether the two HCN4 channels have different physiological functions and roles in heart rate regulation. In this study, we characterized the biophysical properties of the two zebrafish HCN4 channels in Xenopus oocytes and compared them to those of the human HCN4 channel. We found that they showed different gating properties: DrHCN4L currents showed faster activation kinetics and a more positively shifted G-V curve than did DrHCN4 and human HCN4 currents. We made chimeric channels of DrHCN4 and DrHCN4L and found that cytoplasmic domains were determinants for the faster activation and the positively shifted G-V relationship in DrHCN4L. The use of a dominant-negative HCN4 mutant confirmed that DrHCN4 and DrHCN4L can form a heteromultimeric channel in Xenopus oocytes. Next, we confirmed that both are sensitive to common HCN channel inhibitors/blockers including Cs+, ivabradine, and ZD7288. These HCN inhibitors successfully lowered zebrafish heart rate during early embryonic stages. Finally, we knocked down the HCN4 genes using antisense morpholino and found that knocking down either or both of the HCN4 channels caused a temporal decrease in heart rate and tended to cause pericardial edema. These findings suggest that both DrHCN4 and DrHCN4L play a significant role in zebrafish heart rate regulation.
Altomare,
Heteromeric HCN1-HCN4 channels: a comparison with native pacemaker channels from the rabbit sinoatrial node.
2003, Pubmed
Altomare,
Heteromeric HCN1-HCN4 channels: a comparison with native pacemaker channels from the rabbit sinoatrial node.
2003,
Pubmed
Alvarez-Baron,
Minimal molecular determinants of isoform-specific differences in efficacy in the HCN channel family.
2018,
Pubmed
,
Xenbase
Amores,
Zebrafish hox clusters and vertebrate genome evolution.
1998,
Pubmed
Baruscotti,
Physiology and pharmacology of the cardiac pacemaker ("funny") current.
2005,
Pubmed
Baruscotti,
Deep bradycardia and heart block caused by inducible cardiac-specific knockout of the pacemaker channel gene Hcn4.
2011,
Pubmed
Bauer,
Zebrafish Embryos and Larvae as Alternative Animal Models for Toxicity Testing.
2021,
Pubmed
Beaumont,
Enhancement of synaptic transmission by cyclic AMP modulation of presynaptic Ih channels.
2000,
Pubmed
Blum,
Morpholinos: Antisense and Sensibility.
2015,
Pubmed
,
Xenbase
BoSmith,
Inhibitory actions of ZENECA ZD7288 on whole-cell hyperpolarization activated inward current (If) in guinea-pig dissociated sinoatrial node cells.
1993,
Pubmed
Brioschi,
Distribution of the pacemaker HCN4 channel mRNA and protein in the rabbit sinoatrial node.
2009,
Pubmed
Brown,
Voltage-clamp investigations of membrane currents underlying pace-maker activity in rabbit sino-atrial node.
1980,
Pubmed
Bucchi,
Current-dependent block of rabbit sino-atrial node I(f) channels by ivabradine.
2002,
Pubmed
Bucchi,
Identification of the molecular site of ivabradine binding to HCN4 channels.
2013,
Pubmed
Bucchi,
Properties of ivabradine-induced block of HCN1 and HCN4 pacemaker channels.
2006,
Pubmed
Chen,
Properties of hyperpolarization-activated pacemaker current defined by coassembly of HCN1 and HCN2 subunits and basal modulation by cyclic nucleotide.
2001,
Pubmed
,
Xenbase
Cheng,
Molecular mapping of the binding site for a blocker of hyperpolarization-activated, cyclic nucleotide-modulated pacemaker channels.
2007,
Pubmed
,
Xenbase
Dai,
The HCN channel voltage sensor undergoes a large downward motion during hyperpolarization.
2019,
Pubmed
Decher,
KCNE2 modulates current amplitudes and activation kinetics of HCN4: influence of KCNE family members on HCN4 currents.
2003,
Pubmed
,
Xenbase
Elinder,
Mode shifts in the voltage gating of the mouse and human HCN2 and HCN4 channels.
2006,
Pubmed
,
Xenbase
Fenske,
cAMP-dependent regulation of HCN4 controls the tonic entrainment process in sinoatrial node pacemaker cells.
2020,
Pubmed
Fujii,
Gastrointestinal Neurons Expressing HCN4 Regulate Retrograde Peristalsis.
2020,
Pubmed
Glasauer,
Whole-genome duplication in teleost fishes and its evolutionary consequences.
2014,
Pubmed
Hackl,
The Bradycardic Agent Ivabradine Acts as an Atypical Inhibitor of Voltage-Gated Sodium Channels.
2022,
Pubmed
Haechl,
Pharmacological Profile of the Bradycardic Agent Ivabradine on Human Cardiac Ion Channels.
2019,
Pubmed
Herrmann,
HCN4 provides a 'depolarization reserve' and is not required for heart rate acceleration in mice.
2007,
Pubmed
Jou,
A Functional Assay for Sick Sinus Syndrome Genetic Variants.
2017,
Pubmed
Kanda,
Investigation of the freely available easy-to-use software 'EZR' for medical statistics.
2013,
Pubmed
Liman,
Subunit stoichiometry of a mammalian K+ channel determined by construction of multimeric cDNAs.
1992,
Pubmed
,
Xenbase
Lin,
Optical mapping of the electrical activity of isolated adult zebrafish hearts: acute effects of temperature.
2014,
Pubmed
Liu,
A PIP2 substitute mediates voltage sensor-pore coupling in KCNQ activation.
2020,
Pubmed
,
Xenbase
Ludwig,
A family of hyperpolarization-activated mammalian cation channels.
1998,
Pubmed
Ludwig,
Two pacemaker channels from human heart with profoundly different activation kinetics.
1999,
Pubmed
Maciag,
Evaluation of β-adrenergic ligands for development of pharmacological heart failure and transparency models in zebrafish.
2022,
Pubmed
MacRae,
Zebrafish as tools for drug discovery.
2015,
Pubmed
Magee,
Dendritic hyperpolarization-activated currents modify the integrative properties of hippocampal CA1 pyramidal neurons.
1998,
Pubmed
Magee,
HCN Channel C-Terminal Region Speeds Activation Rates Independently of Autoinhibition.
2015,
Pubmed
,
Xenbase
Männikkö,
Voltage-sensing mechanism is conserved among ion channels gated by opposite voltages.
2002,
Pubmed
,
Xenbase
Marchant,
Membrane and calcium clock mechanisms contribute variably as a function of temperature to setting cardiac pacemaker rate in zebrafish Danio rerio.
2019,
Pubmed
Milan,
In vivo recording of adult zebrafish electrocardiogram and assessment of drug-induced QT prolongation.
2006,
Pubmed
Milanesi,
Familial sinus bradycardia associated with a mutation in the cardiac pacemaker channel.
2006,
Pubmed
Minhas,
Transcriptome profile of the sinoatrial ring reveals conserved and novel genetic programs of the zebrafish pacemaker.
2021,
Pubmed
Moosmang,
Cellular expression and functional characterization of four hyperpolarization-activated pacemaker channels in cardiac and neuronal tissues.
2001,
Pubmed
Narumanchi,
Zebrafish Heart Failure Models.
2021,
Pubmed
Nemtsas,
Adult zebrafish heart as a model for human heart? An electrophysiological study.
2010,
Pubmed
Noam,
Towards an integrated view of HCN channel role in epilepsy.
2011,
Pubmed
Pai,
HCN4 ion channel function is required for early events that regulate anatomical left-right patterning in a nodal and lefty asymmetric gene expression-independent manner.
2017,
Pubmed
,
Xenbase
Pitcairn,
Coordinating heart morphogenesis: A novel role for hyperpolarization-activated cyclic nucleotide-gated (HCN) channels during cardiogenesis in Xenopus laevis.
2017,
Pubmed
,
Xenbase
Ravens,
Ionic basis of cardiac electrophysiology in zebrafish compared to human hearts.
2018,
Pubmed
Rayani,
Zebrafish as a model of mammalian cardiac function: Optically mapping the interplay of temperature and rate on voltage and calcium dynamics.
2018,
Pubmed
Rivolta,
Cardiac and neuronal HCN channelopathies.
2020,
Pubmed
Robert,
Deciphering key features in protein structures with the new ENDscript server.
2014,
Pubmed
Santoro,
Molecular and functional heterogeneity of hyperpolarization-activated pacemaker channels in the mouse CNS.
2000,
Pubmed
,
Xenbase
Saponaro,
Gating movements and ion permeation in HCN4 pacemaker channels.
2021,
Pubmed
Sartiani,
The Hyperpolarization-Activated Cyclic Nucleotide-Gated Channels: from Biophysics to Pharmacology of a Unique Family of Ion Channels.
2017,
Pubmed
Sievers,
Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal Omega.
2011,
Pubmed
Stoyek,
Intrinsic and extrinsic innervation of the heart in zebrafish (Danio rerio).
2015,
Pubmed
Stoyek,
Drivers of Sinoatrial Node Automaticity in Zebrafish: Comparison With Mechanisms of Mammalian Pacemaker Function.
2022,
Pubmed
Stoyek,
One fish, two fish, red fish, blue fish*: Zebrafish as a model for cardiac research.
2018,
Pubmed
Swedberg,
Ivabradine and outcomes in chronic heart failure (SHIFT): a randomised placebo-controlled study.
2010,
Pubmed
Verkerk,
Pacemaker activity of the human sinoatrial node: an update on the effects of mutations in HCN4 on the hyperpolarization-activated current.
2015,
Pubmed
,
Xenbase
von der Heyde,
Translating GWAS-identified loci for cardiac rhythm and rate using an in vivo image- and CRISPR/Cas9-based approach.
2020,
Pubmed
Vornanen,
Zebrafish heart as a model for human cardiac electrophysiology.
2016,
Pubmed
Wu,
Is ZD7288 a selective blocker of hyperpolarization-activated cyclic nucleotide-gated channel currents?
2012,
Pubmed
Xue,
Dominant-negative suppression of HCN1- and HCN2-encoded pacemaker currents by an engineered HCN1 construct: insights into structure-function relationships and multimerization.
2002,
Pubmed
,
Xenbase
Yanagihara,
Inward current activated during hyperpolarization in the rabbit sinoatrial node cell.
1980,
Pubmed
Zagotta,
Structural basis for modulation and agonist specificity of HCN pacemaker channels.
2003,
Pubmed
