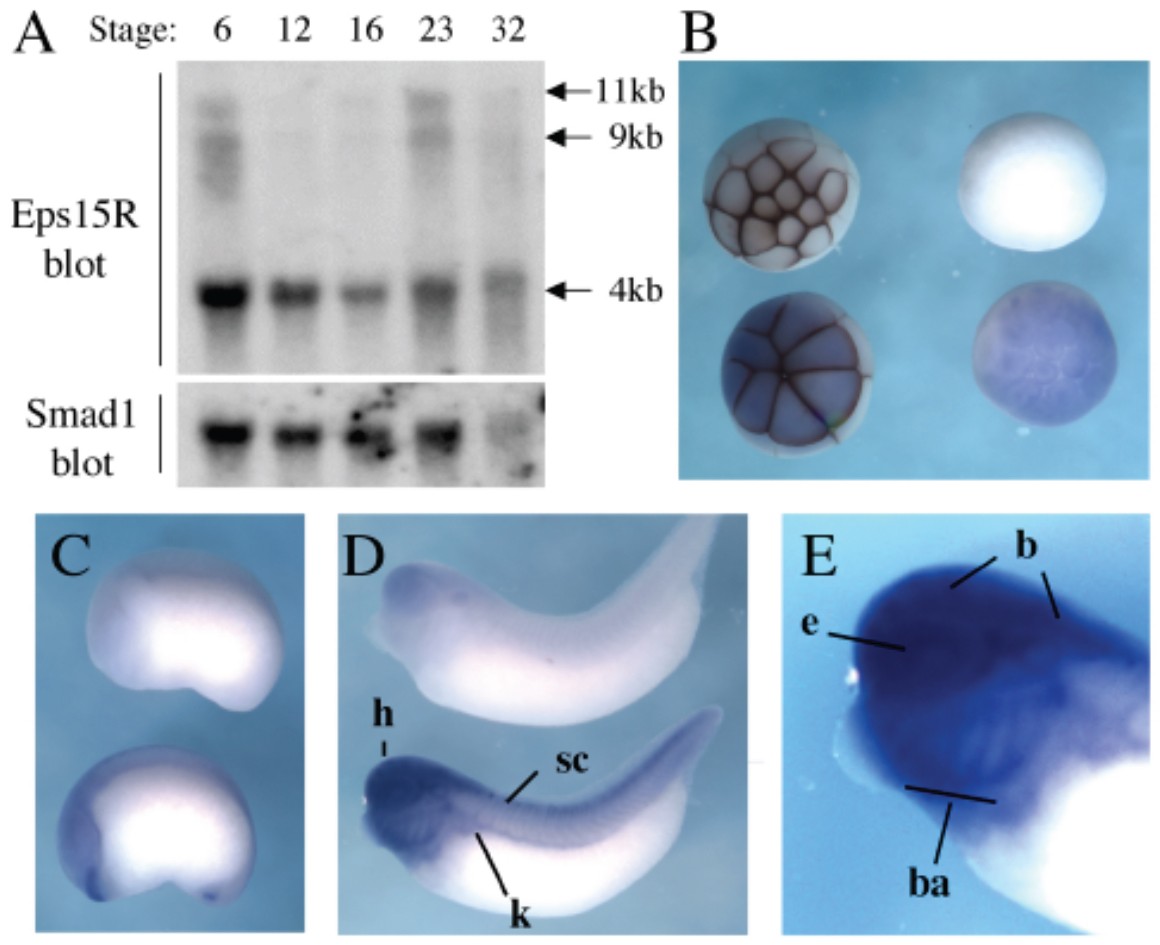

Supplementary Figure 1: Expression of Xenopus Eps15R during embryonic development. (A) A Northern blot analysis shows that Eps15R is expressed at all stages of early development. Embryonic stages correspond to blastula (NF6), late gastrula (NF12), early neurula (NF16), early tadpole (NF23) and tailbud tadpole (NF32). Smad1 expression is unchanged over early embryogenesis and serves as a loading control. (B, C and D) Whole-mount in situ hybridization of Eps15R in developing embryos. (B) At blastula stages Eps15R transcripts are present in the animal pole. The top right embryo was stained with sense probe for background staining. (C) In the neurula, Eps15R expression is enriched in the neural folds, cement gland and proctodeum. (D) In the early swimming tadpole (NF36) Eps15R is expressed in head (h), spinal cord (sc) and kidney (k). The upper embryo in panels C-D is a negative control (sense probe) for background staining. (E) Close up of the head of the lower tadpole in panel D showing expression in the eye (e) brain (b) and branchial arches (ba).
Image published in: Callery EM et al. (2012)
. Creative Commons Attribution license
| Gene | Synonyms | Species | Stage(s) | Tissue |
|---|---|---|---|---|
| eps15l1.S | eps15r, xeps15r | X. laevis | Throughout NF stage 12 | ectoderm animal cap |
| eps15l1.S | eps15r, xeps15r | X. laevis | Throughout NF stage 16 | neural fold neural plate cement gland primordium proctodeum circumblastoporal collar |
| eps15l1.S | eps15r, xeps15r | X. laevis | Throughout NF stage 35 and 36 | central nervous system brain spinal cord eye pronephric tubule pronephric kidney pharyngeal arch mandibular arch hyoid arch branchial arch |
| eps15l1.S | eps15r, xeps15r | X. laevis | Sometime during NF stage 9 to NF stage 35 and 36 | animal animal cap animal blastomere animal hemisphere |
Image source: Published
